Part number
LC1D80D7
$197.79 On request Dispatch — · From TürkiyeGet a Quote

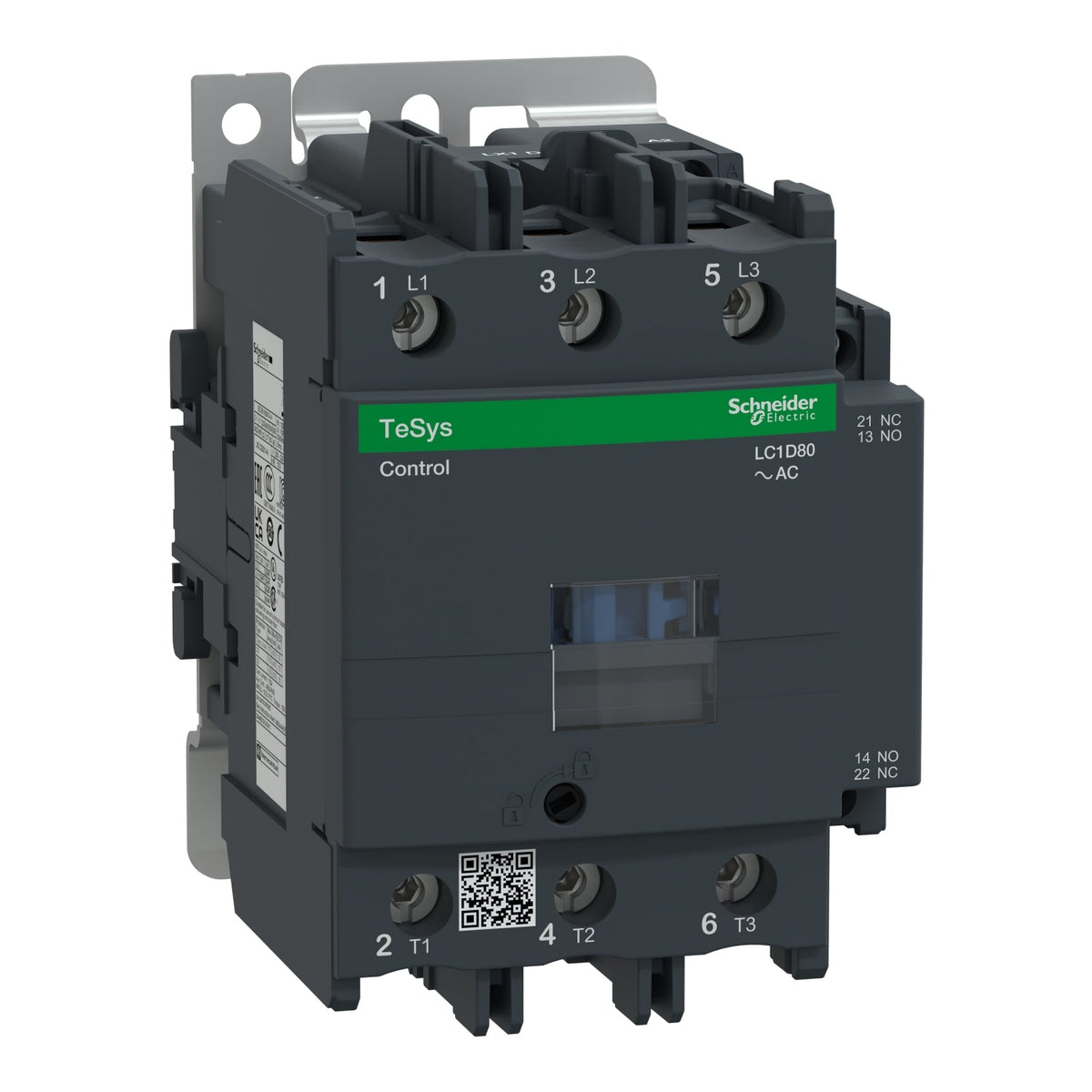

Schneider Electric LC1D80D7 TeSys Deca Contactor 3P 3NO AC-3 80 A 42 V AC Coil Contactor

The Schneider Electric LC1D80D7 is a 3-pole TeSys Deca Advanced contactor rated 80 A (AC-3) / 37 kW at 400 V, 60 hp at 480 V, with a 42 V AC 50/60 Hz coil and 1 NO + 1 NC auxiliary contacts.

Poles
3
AC-3 current (400 V)
80 A
Motor power (400 V)
37 kW
Motor power (480 V)
60 hp @ 460/480 V
Coil voltage
42 V AC
Auxiliary contacts
1 NO + 1 NC
EAN
3389110440263
Description

About the LC1D80D7

The Schneider Electric LC1D80D7 is a TeSys Deca 3-pole (3NO) contactor rated 80 A AC-3 at up to 440 V, built for 37 kW motors at 400 V. It runs on a 42 V 50/60 Hz AC coil for reduced-voltage control circuits, and the 85 mm power frame terminates on a connector accepting 4-50 mm2 conductors instead of the smaller EverLink terminals of lower-current models.

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • CE

Selection Notes

Moving to the 85 mm frame at 80 A AC-3, the LC1D80D7 handles 37 kW motors at 400 V with a 1100 A breaking capacity, and its 1000 V-rated insulation extends the AC-1 rating to 125 A on higher-voltage resistive circuits. The 42 V coil keeps control wiring at reduced voltage; the 95 A LC1D D7 sibling shares the same coil technology for the next current step up in the same frame.

Applications (manufacturer): Motor control, Resistive load

Specification

Full specification

113 values · Last verified 03 Nov 2026

General 5

Series TeSys Deca Advanced
Contactor size / frame D80
Number of poles 3
Main contact configuration 3 NO
Utilisation categories AC-3 AC-3e AC-1 AC-4

Electrical 9

Rated operational current Ie, AC-3, 400 V 80 A
Rated motor power, AC-3, 400 V 37 kW
Motor power at other voltages, AC-3 22 kW @ 220/230 V · 45 kW @ 415/440 V · 55 kW @ 500 V · 45 kW @ 660/690 V · 45 kW @ 1000 V
Rated operational current, AC-1 (60 °C) 125 A
Conventional free-air thermal current Ith 125 A
Rated motor power, AC-4, 400 V 15 kW
Max. rated operational voltage Ue 1000 V
Rated insulation voltage Ui 1000 V
Rated impulse withstand voltage Uimp 8 kV

Control circuit 5

Rated control supply voltage Uc 42 V
Coil type AC
Coil frequency 50/60 Hz
Coil technology Without built-in suppressor module
Coil holding power 26 W | VA
Show all 55 specifications ↓ Show less ↑36 more values in Identification, Auxiliary contacts, Mechanical, Dimensions and weight, Environmental, North American ratings (UL/CSA), Certifications and standards, Logistics. 58 more as published by Schneider Electric are shown on request.

Identification 11

Part number LC1D80D7
Model code D80
Brand Schneider Electric
Series TeSys Deca Advanced
Family Contactors
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110440263
Catalogue number explained LC1 = 3-pole contactor; D = TeSys Deca Advanced range; 80 = 80 A AC-3 rating; D7 = coil code (42 V AC 50/60 Hz)

Auxiliary contacts 4

Built-in auxiliary contacts, NO 1
Built-in auxiliary contacts, NC 1
Auxiliary contacts 1 NO + 1 NC
Mirror contact (IEC 60947-4-1 Annex F) Yes

Mechanical 2

Main circuit connection Box lug / connector
Mounting 35 mm DIN rail, Panel (screw) mounting

Dimensions and weight 4

Width 85 mm
Height 127 mm
Depth 130 mm
Net weight 1.59 kg

Environmental 4

Ambient operating temperature -40 … 60 °C
Degree of protection IP20
Mechanical durability 4000000 cycles
Max. operating frequency, AC-3 3600 cycles/h

North American ratings (UL/CSA) 3

Motor rating (UL/CSA) 30 hp @ 200/208 V · 30 hp @ 230/240 V · 60 hp @ 460/480 V · 60 hp @ 575/600 V · 7.5 hp @ 120 V (1-ph) · 15 hp @ 230/240 V (1-ph)
Short-circuit current rating (SCCR) 100 kA
Max. operating voltage UL/CSA 600 V

Certifications and standards 2

Certifications CB Scheme, UL, CSA, CCC, CE, UKCA, EAC, Marine
Conforming standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60335-2-40, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40, UL 60947-4-1

Logistics 6

Package dimensions (L × W × H) 97 × 140 × 140 mm
Package weight 1.554 kg
Shipping weight 1.59 kg
Ships from Türkiye
Dispatch —
Stock On request
Additional manufacturer data 58 58 more values as published by Schneider Electric, shown on request.

Additional manufacturer data 58

Range TeSys
Product or Component Type Contactor
Device short name LC1D
Compatibility code LC1D
Protective cover With
Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 640 A 104 °F (40 °C) - 10 s for power circuit 990 A 104 °F (40 °C) - 1 s for power circuit 135 A 104 °F (40 °C) - 10 min for power circuit 320 A 104 °F (40 °C) - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 5.1 W AC-3 12.5 W AC-1 5.1 W AC-3e
Overvoltage category III
Pollution degree 3
Safety reliability level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Electrical durability 0.8 Mcycles 125 A AC-1 <= 440 V 1.5 Mcycles 80 A AC-3 <= 440 V 1.5 Mcycles 80 A AC-3e <= 440 V
Control circuit type AC 50/60 Hz
Control circuit voltage limits 0.85...1.1 Uc (-40...131 °F (-40...55 °C)):operational AC 60 Hz 0.3...0.6 Uc (-40...158 °F (-40...70 °C)):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40...131 °F (-40...55 °C)):operational AC 50 Hz 1...1.1 Uc (131...158 °F (55...70 °C)):operational AC 50/60 Hz
Inrush power in VA 245 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 245 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Heat dissipation 6...10 W at 50/60 Hz
Operating time 20...35 ms closing 6...20 ms opening
Tightening torque Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.2 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Protective treatment THIEC 60068-2-30
Climatic withstand IACS E10 exposure to damp heat
Operating altitude 0...9842.52 ft (0...3000 m)
Fire resistance 1562 °F (850 °C) IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open 2 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor closed 10 Gn for 11 ms)
Category US1CTR121252
Discount Schedule CTR1
Returnability No
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Unit Type of Package 2 S02
Number of Units in Package 2 5
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 17.783 lb(US) (8.066 kg)
Total lifecycle Carbon footprint 97 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 11 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.2 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.3 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 81 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 4 kg CO2 eq.
Environmental Disclosure Product Environmental Profile
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
California proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
PVC free Yes
Recyclability potential, in % 76
Circularity Profile No need of specific recycling operations
Take-back No
WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Source: manufacturer data · Last verified: 03 Nov 2026
