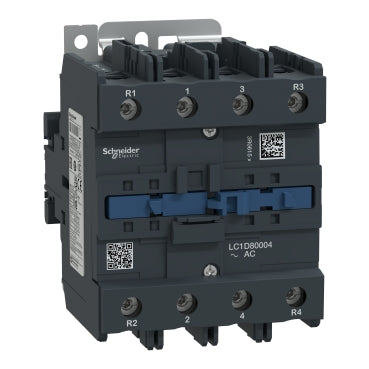

Schneider Electric LC1D80004F7 TeSys Deca Contactor 4P 4NO AC-1 125 A 110 V AC Coil Contactor

The Schneider Electric LC1D80004F7 is a 4-pole TeSys Deca contactor rated 125 A AC-1 at up to 1000 V, with an AC-3 motor rating of 37 kW at 400 V. It runs on a 110 V AC 50/60 Hz coil, ships with a protective cover, and has no built-in auxiliary contacts, so side- or front-mounted blocks are ordered separately.

Technical Specifications

Certifications & Standards

• CCC
• UL
• CB Scheme
• CSA
• CE
• UKCA
• Marine
• EAC
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• CSA C22.2 No 14
• UL 60947-4-1

Selection Notes

The protective cover and absence of built-in auxiliary contacts make this variant suited to panels where the control wiring is finished with separately ordered CAD/LA9D blocks; the 4 NO configuration handles three-phase motor plus neutral or paired-circuit switching rather than reversing duty. Move up the LC1D range only if the resistive AC-1 load exceeds 125 A, since the 37 kW AC-3 figure already covers most 400 V three-phase motor starter duty at this frame size.

Applications

Resistive and lightly inductive load switching in distribution panels, heater and lighting banks, and motor starter panels up to 37 kW at 400 V where a 110 V AC control coil matches the panel's control transformer tap.
