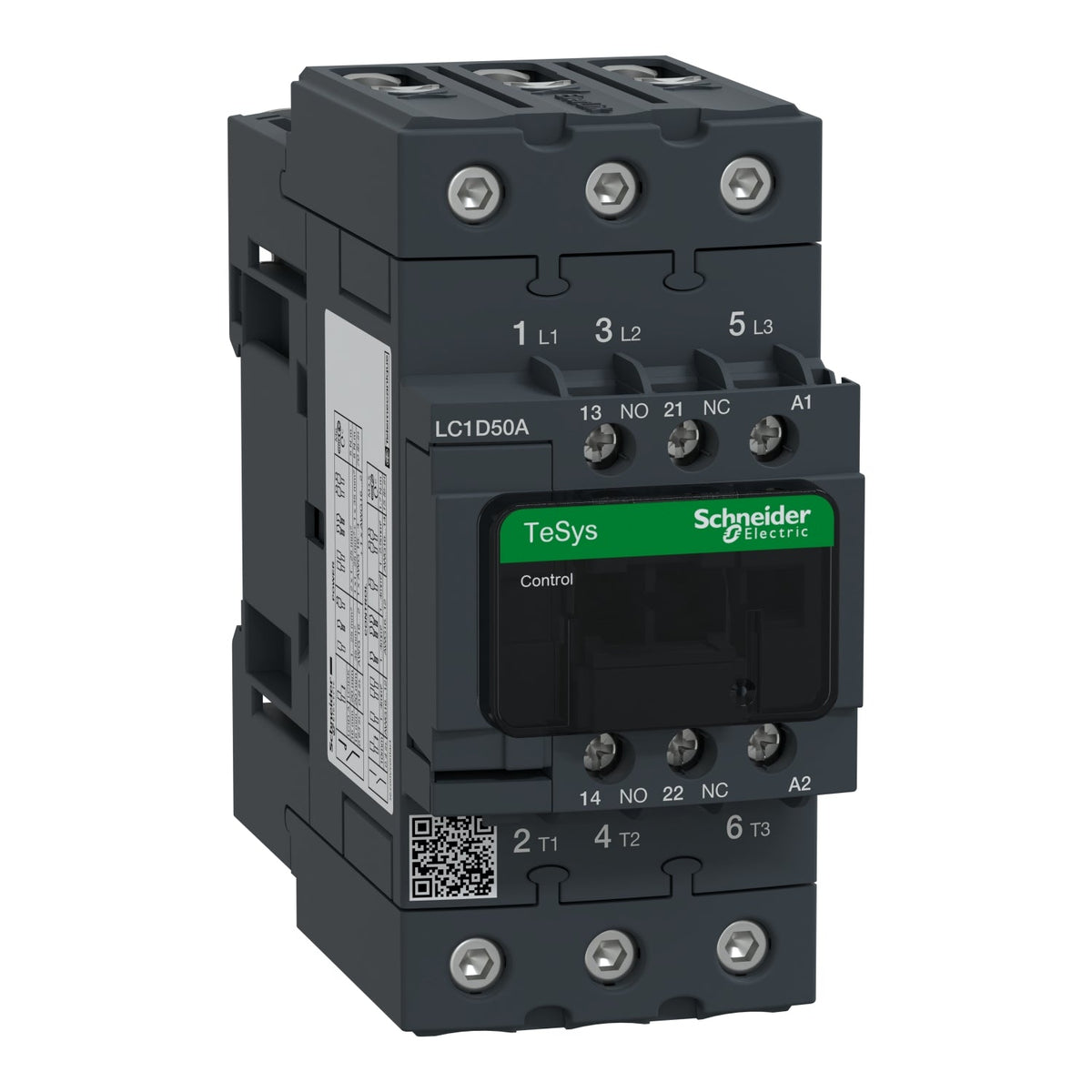

The Schneider Electric LC1D50AE7 is a 3-pole TeSys Deca Advanced contactor rated 50 A (AC-3) / 22 kW at 400 V, 40 hp at 480 V, with a 48 V AC 50/60 Hz coil and 1 NO + 1 NC auxiliary contacts.
The Schneider Electric LC1D50AE7 is a TeSys Deca 3-pole (3NO) contactor rated 50 A AC-3 at up to 440 V, sized for 22 kW motors at 400 V. It runs on a 48 V 50/60 Hz AC coil, a lower voltage band suited to control circuits with a dedicated step-down transformer, and the power circuit terminates on EverLink BTR screw connectors.
A 48 V AC coil fits the LC1D50AE7 into control systems using a dedicated low-voltage transformer secondary rather than mains-voltage control wiring, a common practice on panels with extended touch-safe zones. The contactor switches 22 kW at 400 V AC-3 with a 900 A breaking capacity, matching the other 50 A LC1D coil variants. Where a direct 400 V or wide-range electronic coil fits the panel design better, the V7 or EHE/KUE siblings occupy the same frame.
Applications (manufacturer): Motor control, Resistive load
| Series | TeSys Deca Advanced |
|---|---|
| Contactor size / frame | D50 |
| Number of poles | 3 |
| Main contact configuration | 3 NO |
| Utilisation categories | AC-3 AC-3e AC-1 AC-4 |
| Rated operational current Ie, AC-3, 400 V | 50 A |
|---|---|
| Rated motor power, AC-3, 400 V | 22 kW |
| Motor power at other voltages, AC-3 | 15 kW @ 220/230 V · 25 kW @ 415 V · 30 kW @ 440 V · 30 kW @ 500 V · 33 kW @ 660/690 V |
| Rated operational current, AC-1 (60 °C) | 80 A |
| Conventional free-air thermal current Ith | 80 A |
| Rated motor power, AC-4, 400 V | 11 kW |
| Max. rated operational voltage Ue | 690 V |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated control supply voltage Uc | 48 V |
|---|---|
| Coil type | AC |
| Coil frequency | 50/60 Hz |
| Coil technology | Without built-in suppressor module |
| Coil holding power | 13 W | VA |
| Part number | LC1D50AE7 |
|---|---|
| Model code | D50 |
| Brand | Schneider Electric |
| Series | TeSys Deca Advanced |
| Family | Contactors |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119408646 |
| Catalogue number explained | LC1 = 3-pole contactor; D = TeSys Deca Advanced range; 50 = 50 A AC-3 rating; AE7 = coil code (48 V AC 50/60 Hz) |
| Built-in auxiliary contacts, NO | 1 |
|---|---|
| Built-in auxiliary contacts, NC | 1 |
| Auxiliary contacts | 1 NO + 1 NC |
| Mirror contact (IEC 60947-4-1 Annex F) | Yes |
| Main circuit connection | Screw terminal |
|---|---|
| Mounting | 35 mm DIN rail, Panel (screw) mounting |
| Width | 55 mm |
|---|---|
| Height | 122 mm |
| Depth | 120 mm |
| Net weight | 0.855 kg |
| Ambient operating temperature | -40 … 60 °C |
|---|---|
| Degree of protection | IP20 |
| Mechanical durability | 6000000 cycles |
| Max. operating frequency, AC-3 | 3600 cycles/h |
| Motor rating (UL/CSA) | 15 hp @ 200/208 V · 15 hp @ 230/240 V · 40 hp @ 460/480 V · 40 hp @ 575/600 V · 3 hp @ 115 V (1-ph) · 7.5 hp @ 230/240 V (1-ph) |
|---|---|
| Short-circuit current rating (SCCR) | 100 kA |
| Max. operating voltage UL/CSA | 600 V |
| Certifications | CB Scheme, UL, CSA, CCC, CE, UKCA, EAC, Marine |
|---|---|
| Conforming standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60335-2-40, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40, UL 60947-4-1 |
| Package dimensions (L × W × H) | 154 × 137 × 63 mm |
|---|---|
| Package weight | 0.918 kg |
| Shipping weight | 0.855 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Range | TeSys TeSys Deca |
|---|---|
| Product or Component Type | Contactor |
| Device short name | LC1D |
| Compatibility code | LC1D |
| Protective cover | With |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 900 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity | 900 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 400 A 104 °F (40 °C) - 10 s for power circuit 810 A 104 °F (40 °C) - 1 s for power circuit 84 A 104 °F (40 °C) - 10 min for power circuit 208 A 104 °F (40 °C) - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 100 A gG at <= 690 V coordination type 1 for power circuit 100 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance | 1.5 mOhm - Ith 80 A 50 Hz for power circuit |
| Power dissipation per pole | 3.7 W AC-3 9.6 W AC-1 3.7 W AC-3e |
| Overvoltage category | III |
| Pollution degree | 3 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Electrical durability | 1.45 Mcycles 50 A AC-3 <= 440 V 1.1 Mcycles 80 A AC-1 <= 440 V 1.45 Mcycles 50 A AC-3e <= 440 V |
| Control circuit type | AC 50/60 Hz standard |
| Control circuit voltage limits | 0.3...0.6 Uc (-40...158 °F (-40...70 °C)):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40...140 °F (-40...60 °C)):operational AC 50 Hz 0.85...1.1 Uc (-40...140 °F (-40...60 °C)):operational AC 60 Hz 1...1.1 Uc (140...158 °F (60...70 °C)):operational AC 50/60 Hz |
| Inrush power in VA | 140 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 160 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Heat dissipation | 4...5 W at 50/60 Hz |
| Operating time | 4...19 ms opening 12...26 ms closing |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors Philips No 2 Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.04...0.05 in2 (25...35 mm2) hexagonal 0.2 in (4 mm) Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002...0.04 in2 (1...25 mm2) hexagonal 0.2 in (4 mm) Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors pozidriv No 2 Power circuit 22.1 lbf.in (2.5 N.m) EverLink BTR screw connectors pozidriv No 2 |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Protective treatment | THIEC 60068-2-30 |
| Climatic withstand | IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 10 Gn for 11 ms) |
| Category | US1CTR121252 |
| Discount Schedule | CTR1 |
| Returnability | No |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 21.438 lb(US) (9.724 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 30.315 in (77.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 370.527 lb(US) (168.068 kg) |
| Total lifecycle Carbon footprint | 67 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 4 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.4 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 61 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 1 kg CO2 eq. |
| Environmental Disclosure | Product Environmental Profile |
| Packaging made with recycled cardboard | Yes |
| Packaging without single use plastic | Yes |
| SCIP Number | 3d0a4f45-d28c-4c3d-bee1-c14ec8c34bee |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| PVC free | Yes |
| Recyclability potential, in % | 62 |
| Circularity Profile | End of Life Information |
| Take-back | No |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
