Part number
LC1D38F7
$85.51 On request Dispatch — · From TürkiyeGet a Quote

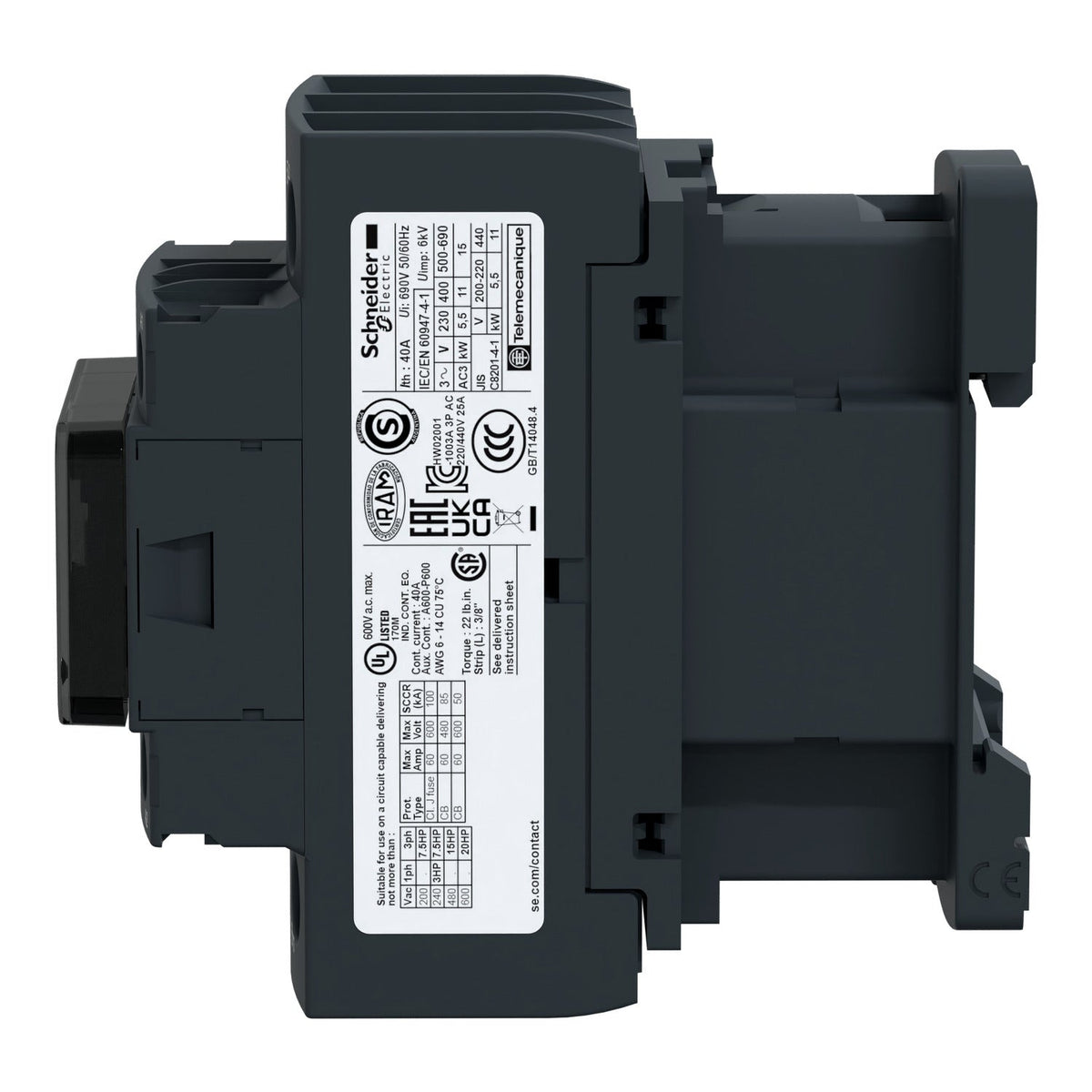

Schneider Electric LC1D38F7 TeSys Deca Contactor 3P 3NO AC-3 38 A 110 V AC Coil 1NO+1NC Screw Clamp Contactor

The Schneider Electric LC1D38F7 is a 3-pole TeSys Deca Advanced contactor rated 38 A (AC-3) / 18.5 kW at 400 V, 20 hp at 480 V, with a 110 V AC 50/60 Hz coil and 1 NO + 1 NC auxiliary contacts.

Poles
3
AC-3 current (400 V)
38 A
Motor power (400 V)
18.5 kW
Motor power (480 V)
20 hp @ 480 V
Coil voltage
110 V AC
Auxiliary contacts
1 NO + 1 NC
EAN
3389110352207
Description

About the LC1D38F7

The Schneider Electric LC1D38F7 is a TeSys Deca 3-pole (3NO) contactor rated 38 A AC-3 at up to 440 V, switching 18.5 kW motors at 400 V. It provides a 110 V 50/60 Hz AC coil, 1NO+1NC mirror-certified auxiliary contacts and screw clamp terminals for both load and control wiring. Multi-standard certification covers IEC, UL and CSA markets from one reference.

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • Marine

Selection Notes

The 110 V AC coil on the LC1D38F7 matches the common North American control-transformer secondary, so it drops into existing panel designs without a coil-voltage change. At 38 A AC-3 it switches 18.5 kW motors at 400 V with 550 A breaking capacity at 440 V. Where a 24 V DC or 230 V AC control circuit is used instead, other LC1D38 coil variants share the identical 45 mm frame and mounting pattern.

Applications (manufacturer): Resistive load, Motor control

Specification

Full specification

117 values · Last verified 03 Nov 2026

General 5

Series TeSys Deca Advanced
Contactor size / frame D38
Number of poles 3
Main contact configuration 3 NO
Utilisation categories AC-3 AC-3e AC-1 AC-4

Electrical 8

Rated operational current Ie, AC-3, 400 V 38 A
Rated motor power, AC-3, 400 V 18.5 kW
Motor power at other voltages, AC-3 9 kW @ 220/230 V · 18.5 kW @ 415/440 V · 18.5 kW @ 500 V · 18.5 kW @ 660/690 V
Rated operational current, AC-1 (60 °C) 50 A
Conventional free-air thermal current Ith 50 A
Max. rated operational voltage Ue 690 V
Rated insulation voltage Ui 690 V
Rated impulse withstand voltage Uimp 6 kV

Control circuit 5

Rated control supply voltage Uc 110 V
Coil type AC
Coil frequency 50/60 Hz
Coil technology Without built-in suppressor module
Coil holding power 7.5 W | VA
Show all 54 specifications ↓ Show less ↑36 more values in Identification, Auxiliary contacts, Mechanical, Dimensions and weight, Environmental, North American ratings (UL/CSA), Certifications and standards, Logistics. 63 more as published by Schneider Electric are shown on request.

Identification 11

Part number LC1D38F7
Model code D38
Brand Schneider Electric
Series TeSys Deca Advanced
Family Contactors
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110352207
Catalogue number explained LC1 = 3-pole contactor; D = TeSys Deca Advanced range; 38 = 38 A AC-3 rating; F7 = coil code (110 V AC 50/60 Hz)

Auxiliary contacts 4

Built-in auxiliary contacts, NO 1
Built-in auxiliary contacts, NC 1
Auxiliary contacts 1 NO + 1 NC
Mirror contact (IEC 60947-4-1 Annex F) Yes

Mechanical 2

Main circuit connection Screw terminal
Mounting 35 mm DIN rail, Panel (screw) mounting

Dimensions and weight 4

Width 45 mm
Height 85 mm
Depth 92 mm
Net weight 0.38 kg

Environmental 4

Ambient operating temperature -40 … 60 °C
Degree of protection IP20
Mechanical durability 15000000 cycles
Max. operating frequency, AC-3 3600 cycles/h

North American ratings (UL/CSA) 3

Motor rating (UL/CSA) 10 hp @ 200/208 V · 10 hp @ 230/240 V · 20 hp @ 480 V · 25 hp @ 600 V · 5 hp @ 240 V (1-ph)
Short-circuit current rating (SCCR) 100 kA
Max. operating voltage UL/CSA 600 V

Certifications and standards 2

Certifications CB Scheme, UL, CSA, CCC, UKCA, EAC, Marine
Conforming standards CSA C22.2 No 14, CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60335-2-40, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40, UL 60947-4-1

Logistics 6

Package dimensions (L × W × H) 112 × 92 × 50 mm
Package weight 0.413 kg
Shipping weight 0.38 kg
Ships from Türkiye
Dispatch —
Stock On request
Additional manufacturer data 63 63 more values as published by Schneider Electric, shown on request.

Additional manufacturer data 63

Range TeSys TeSys Deca
Product or Component Type Contactor
Device short name LC1D
Compatibility code LC1D
Protective cover With
Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 550 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 550 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 60 A 104 °F (40 °C) - 10 min for power circuit 430 A 104 °F (40 °C) - 1 s for power circuit 150 A 104 °F (40 °C) - 1 min for power circuit 310 A 104 °F (40 °C) - 10 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 63 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 2 mOhm - Ith 50 A 50 Hz for power circuit
Power dissipation per pole 5 W AC-1 3 W AC-3 3 W AC-3e
Overvoltage category III
Pollution degree 3
Safety reliability level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Electrical durability 1.4 Mcycles 50 A AC-1 <= 440 V 1.4 Mcycles 38 A AC-3 <= 440 V 1.4 Mcycles 38 A AC-3e <= 440 V
Control circuit type AC 50/60 Hz
Control circuit voltage limits 0.3...0.6 Uc (-40...158 °F (-40...70 °C)):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40...140 °F (-40...60 °C)):operational AC 50 Hz 0.85...1.1 Uc (-40...140 °F (-40...60 °C)):operational AC 60 Hz 1...1.1 Uc (140...158 °F (60...70 °C)):operational AC 50/60 Hz
Inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Heat dissipation 2...3 W at 50/60 Hz
Operating time 4...19 ms opening 12...22 ms closing
Tightening torque Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Protective treatment THIEC 60068-2-30
Climatic withstand IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
Operating altitude 0...9842.52 ft (0...3000 m)
Fire resistance 1562 °F (850 °C) IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 8 Gn for 11 ms)
Category US1CTR121251
Discount Schedule CTR1
Returnability Yes
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Unit Type of Package 2 S02
Number of Units in Package 2 20
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 18.964 lb(US) (8.602 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 320
Package 3 Height 29.528 in (75.000 cm)
Package 3 Width 23.622 in (60.000 cm)
Package 3 Length 31.496 in (80.000 cm)
Package 3 Weight 318.568 lb(US) (144.500 kg)
Total lifecycle Carbon footprint 174 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 2 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.2 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 171 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 0.9 kg CO2 eq.
Environmental Disclosure Product Environmental Profile
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
California proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
PVC free Yes
Recyclability potential, in % 66
Circularity Profile End of Life Information
Take-back No
WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Source: manufacturer data · Last verified: 03 Nov 2026

Documents

Documents for LC1D38F7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CB Scheme
  • UL
  • CSA
  • CCC
  • UKCA
  • EAC
  • Marine
  • CSA C22.2 No 14
  • CSA C22.2 No 60947-4-1
  • EN 60947-4-1
  • EN 60947-5-1
  • IEC 60335-1
  • IEC 60335-2-40
  • IEC 60947-4-1
  • IEC 60947-5-1
  • UL 60335-2-40
  • UL 60947-4-1
Quick answers

Questions about the LC1D38F7

What is the rated current of LC1D38F7?

The rated current of LC1D38F7 is 38 A (AC-3, 400 V).

Which supply voltage is LC1D38F7 rated for?

The rated operational voltage of LC1D38F7 is 690 V AC.

What motor power is LC1D38F7 rated for?

The rated motor power of LC1D38F7 is 18.5 kW (AC-3, 400 V).

Which control voltage does LC1D38F7 need?

The control voltage range of LC1D38F7 is 110 V AC.

What is the EAN of LC1D38F7?

The EAN (GTIN) of LC1D38F7 is 3389110352207.

Where does LC1D38F7 ship from, and how fast?

LC1D38F7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
