LC1D38ED
$110.63 On request Dispatch — · From TürkiyeGet a Quote

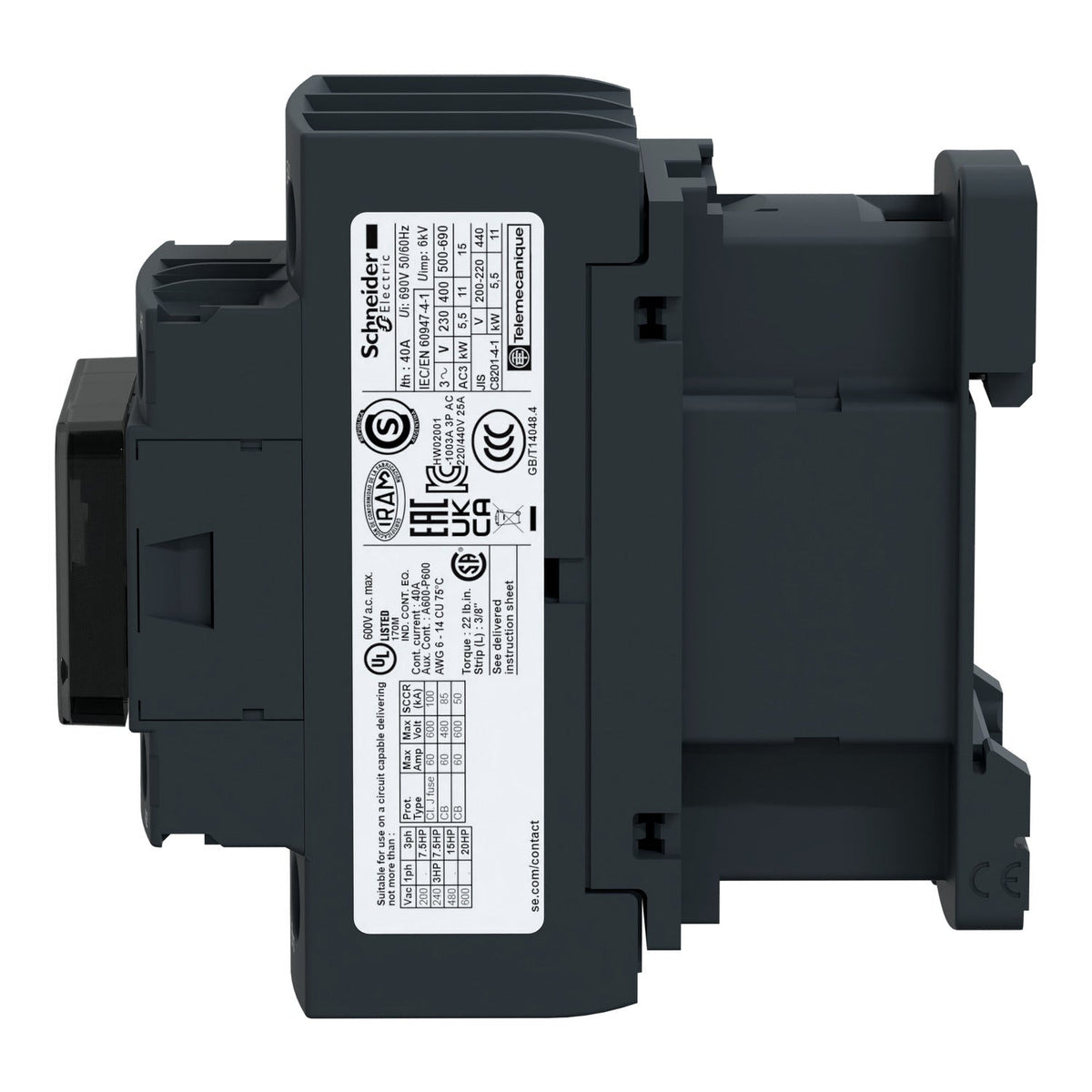

Schneider Electric LC1D38ED TeSys Deca Contactor 3P 3NO AC-3 38 A 48 V DC Coil Contactor

The Schneider Electric LC1D38ED is a 3-pole TeSys Deca Advanced contactor rated 38 A (AC-3) / 18.5 kW at 400 V, with a 48 V DC coil and 1 NO + 1 NC auxiliary contacts.

Poles
3
AC-3 current (400 V)
38 A
Motor power (400 V)
18.5 kW
Coil voltage
48 V DC
Auxiliary contacts
1 NO + 1 NC
Description

About the LC1D38ED

The Schneider Electric LC1D38ED is a TeSys Deca 3-pole (3NO) contactor rated 38 A AC-3 at up to 440 V, sized for 18.5 kW motors at 400 V. Its 48 V DC coil includes a built-in transient suppressor module, removing the need for an external freewheeling diode, and 1NO+1NC mirror-certified auxiliary contacts are standard for status feedback.

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • Marine

Selection Notes

The built-in suppressor on the LC1D38ED coil protects adjacent PLC output stages from the inductive kickback a 48 V DC coil generates on de-energisation, without adding an external diode. At 38 A AC-3 it switches 18.5 kW at 400 V, and the 101 mm depth is slightly greater than the AC-coil D7 siblings to accommodate the suppressor module. For 48 V DC coils at other currents, the 12 A and 95 A ED variants share the same technology.

Applications (manufacturer): Resistive load, Motor control

Specification

Full specification

107 values · Last verified 03 Nov 2026

General 5

Series TeSys Deca Advanced
Contactor size / frame D38
Number of poles 3
Main contact configuration 3 NO
Utilisation categories AC-3 AC-3e AC-1 AC-4

Electrical 9

Rated operational current Ie, AC-3, 400 V 38 A
Rated motor power, AC-3, 400 V 18.5 kW
Motor power at other voltages, AC-3 9 kW @ 220/230 V · 18.5 kW @ 415/440 V · 18.5 kW @ 500 V · 18.5 kW @ 660/690 V
Rated operational current, AC-1 (60 °C) 50 A
Conventional free-air thermal current Ith 50 A
Rated motor power, AC-4, 400 V 7.5 kW
Max. rated operational voltage Ue 690 V
Rated insulation voltage Ui 690 V
Rated impulse withstand voltage Uimp 6 kV

Control circuit 4

Rated control supply voltage Uc 48 V
Coil type DC
Coil technology Built-in bidirectional peak limiting diode suppressor
Coil holding power 5.4 W | VA
Show all 50 specifications ↓ Show less ↑32 more values in Identification, Auxiliary contacts, Mechanical, Dimensions and weight, Environmental, Certifications and standards, Logistics. 57 more as published by Schneider Electric are shown on request.

Identification 10

Part number LC1D38ED
Model code D38
Brand Schneider Electric
Series TeSys Deca Advanced
Family Contactors
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
Catalogue number explained LC1 = 3-pole contactor; D = TeSys Deca Advanced range; 38 = 38 A AC-3 rating; ED = coil code (48 V DC)

Auxiliary contacts 4

Built-in auxiliary contacts, NO 1
Built-in auxiliary contacts, NC 1
Auxiliary contacts 1 NO + 1 NC
Mirror contact (IEC 60947-4-1 Annex F) No

Mechanical 2

Main circuit connection Screw terminal
Mounting 35 mm DIN rail, Panel (screw) mounting

Dimensions and weight 4

Width 45 mm
Height 85 mm
Depth 101 mm
Net weight 0.54 kg

Environmental 4

Ambient operating temperature -40 … 60 °C
Degree of protection IP20
Mechanical durability 30000000 cycles
Max. operating frequency, AC-3 3600 cycles/h

Certifications and standards 2

Certifications CB Scheme, UL, CSA, CCC, UKCA, EAC, Marine
Conforming standards CSA C22.2 No 14, CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60335-2-40, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40, UL 60947-4-1

Logistics 6

Package dimensions (L × W × H) 112 × 93 × 50 mm
Package weight 0.583 kg
Shipping weight 0.54 kg
Ships from Türkiye
Dispatch —
Stock On request
Additional manufacturer data 57 57 more values as published by Schneider Electric, shown on request.

Additional manufacturer data 57

Range TeSys TeSys Deca
Product or component type Contactor
Device short name LC1D
Motor power hp 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors 5 hp at 240 V AC 50/60 Hz for 1 phase motors 20 hp at 480 V AC 50/60 Hz for 3 phases motors 25 hp at 600 V AC 50/60 Hz for 3 phases motors
Compatibility code LC1D
Protective cover With
Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 550 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 550 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 60 A 40 °C - 10 min for power circuit 430 A 40 °C - 1 s for power circuit 150 A 40 °C - 1 min for power circuit 310 A 40 °C - 10 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 63 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 2 mOhm - Ith 50 A 50 Hz for power circuit
Power dissipation per pole 5 W AC-1 3 W AC-3 3 W AC-3e
Overvoltage category III
Pollution degree 3
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Electrical durability 1.4 Mcycles 50 A AC-1 at Ue <= 440 V 1.4 Mcycles 38 A AC-3 at Ue <= 440 V 1.4 Mcycles 38 A AC-3e at Ue <= 440 V
Control circuit type DC standard
Control circuit voltage limits 0.1...0.25 Uc (-40...70 °C):drop-out DC 0.7...1.25 Uc (-40...60 °C):operational DC 1...1.25 Uc (60...70 °C):operational DC
Inrush power in W 5.4 W (at 20 °C)
Operating time 20 ±20 % ms opening 63 ±15 % ms closing
Time constant 28 ms
Tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2 Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Protective treatment TH conforming to IEC 60068-2-30
Climatic withstand Conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Operating altitude 0...3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) Shocks contactor closed (15 Gn for 11 ms) Shocks contactor open (8 Gn for 11 ms)
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.999 kg
Total lifecycle Carbon footprint 49 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 3 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.2 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 45 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 1 kg CO2 eq.
Environmental Disclosure Product Environmental Profile
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
SCIP Number 50ae7612-fd2e-41e4-a369-50d0dea6e592
PVC free Yes
Repair No
Recyclability potential, in % 75
End of life manual availability End of Life Information
Take-back No
WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Source: manufacturer data · Last verified: 03 Nov 2026
