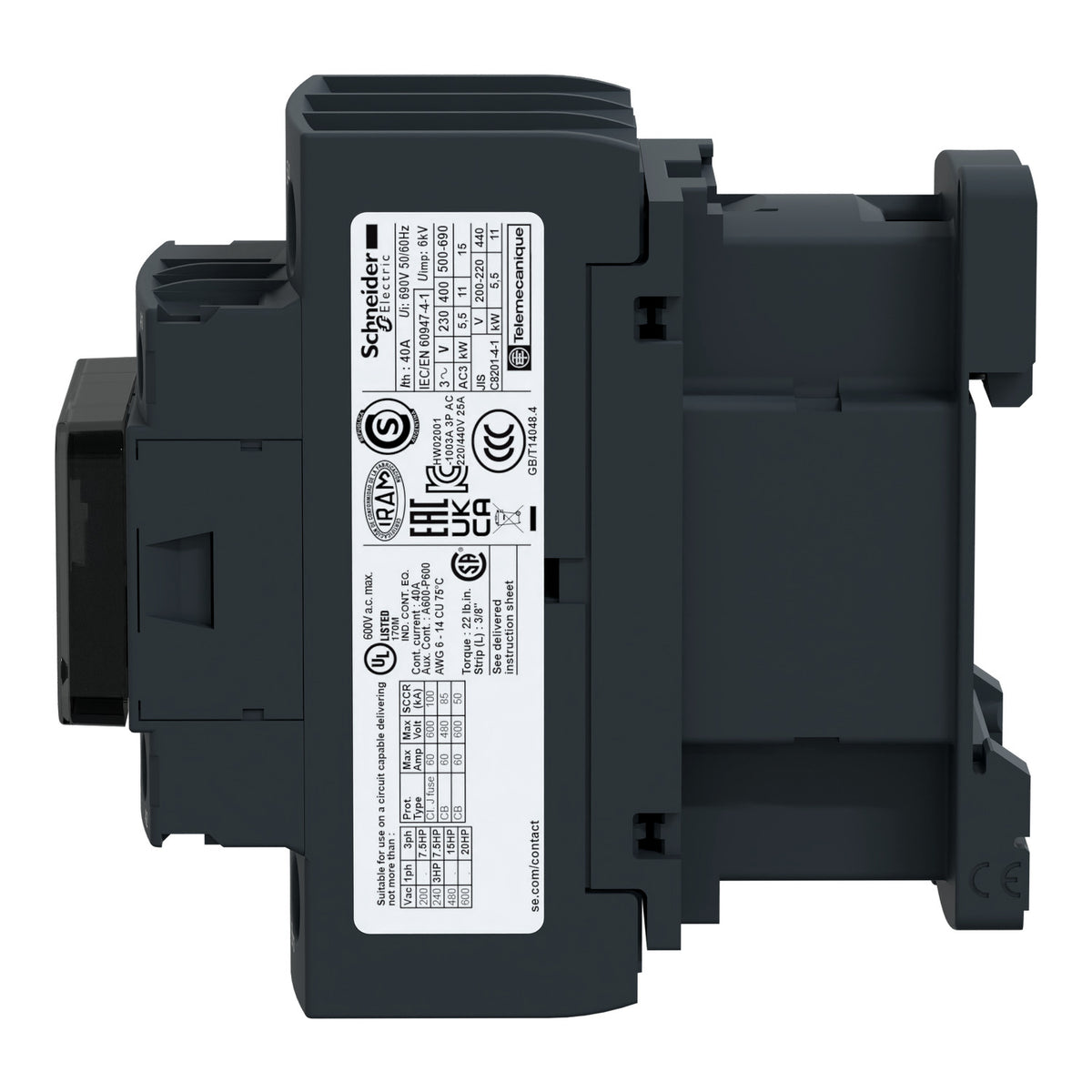

Schneider Electric LC1D32V7 TeSys Deca Contactor 3P 3NO AC-3 32 A 400 V AC Coil Contactor

% $-67.68
Schneider Electric LC1D32V7 TeSys Deca Contactor – 32 A AC-3
Schneider Electric LC1D32V7 TeSys Deca Contactor – 32 A AC-3

Schneider Electric LC1D32V7 TeSys Deca Contactor 3P 3NO AC-3 32 A 400 V AC Coil Contactor

Brand: Schneider Electric
Reference No: LC1D32V7
Series: TeSys Deca
Tariff Code (HS): 85365080
Rated Current: 32 A
Power: 15 kW
Rated Voltage: 400 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$67.68

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LC1D32V7 is a 3-pole TeSys Deca contactor rated 32 A AC-3 (up to 440 V) for direct-on-line motor control, switching motors up to 15 kW at 400 V. It carries a 400 V AC coil, a mechanically-linked 1 NO + 1 NC auxiliary contact with mirror-contact certification, and screw-clamp terminals on both power and control circuits for DIN-rail mounting.

Technical Specifications

Reference LC1D32V7
Brand Schneider Electric
Range TeSys Deca
Device short name LC1D
GTIN 3389110351835
Poles 3P
Pole contact composition 3 NO
Utilisation category AC-3 / AC-3e / AC-1
Rated operational current (Ie), AC-3 32 A at ≤ 440 V AC
Rated operational current (Ie), AC-1 50 A at ≤ 440 V AC
Rated operational voltage (Ue) ≤ 690 V AC 25...400 Hz
Motor power at 400 V (AC-3) 15 kW
Control circuit voltage (Uc) 400 V AC 50/60 Hz
Auxiliary contact composition 1 NO + 1 NC (mirror contact)
Conventional free air thermal current (Ith) 50 A
Rated making capacity 550 A at 440 V
Rated breaking capacity 550 A at 440 V
Rated short-time withstand current (Icw) 430 A - 1 s
Associated fuse rating 63 A gG (coordination type 1)
Rated insulation voltage (Ui) 690 V
Rated impulse withstand voltage (Uimp) 6 kV
IP degree of protection IP20 (front face)
Mounting plate / rail
Terminal type screw clamp
Maximum operating rate 3600 cyc/h
Permissible ambient air temperature -40...60 °C / 60...70 °C (derated)
Operating altitude 3000 m without derating
Dimensions (H x W x D) 85 x 45 x 92 mm
Net weight 0.375 kg
Country of origin ID

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • EAC

Selection Notes

At 32 A AC-3 it covers motors up to 15 kW at 400 V; The 400 V AC coil connects straight to the incoming three-phase supply, removing the need for a separate control transformer. The mirror-contact-certified 1 NO + 1 NC auxiliary block confirms power-contact position for safety-circuit feedback without an external contact block.

Technical Details

Short Description
Schneider Electric LC1D32V7 TeSys Deca contactor, 3P 3NO, AC-3 32 A, 400 V AC coil.
Rated Current (Ampere)
32 A
Rated Voltage (VAC)
400 V AC
Mounting Type
DIN rail
Protection Type
IP20 (front face)
Number of Poles
3P
Power (kW)
15 kW
Delivery Date (Days)
30 days
Model Number
LC1D
Tariff Code
85365080
