Part number
LC1D32D7
$69.26 On request Dispatch — · From TürkiyeGet a Quote

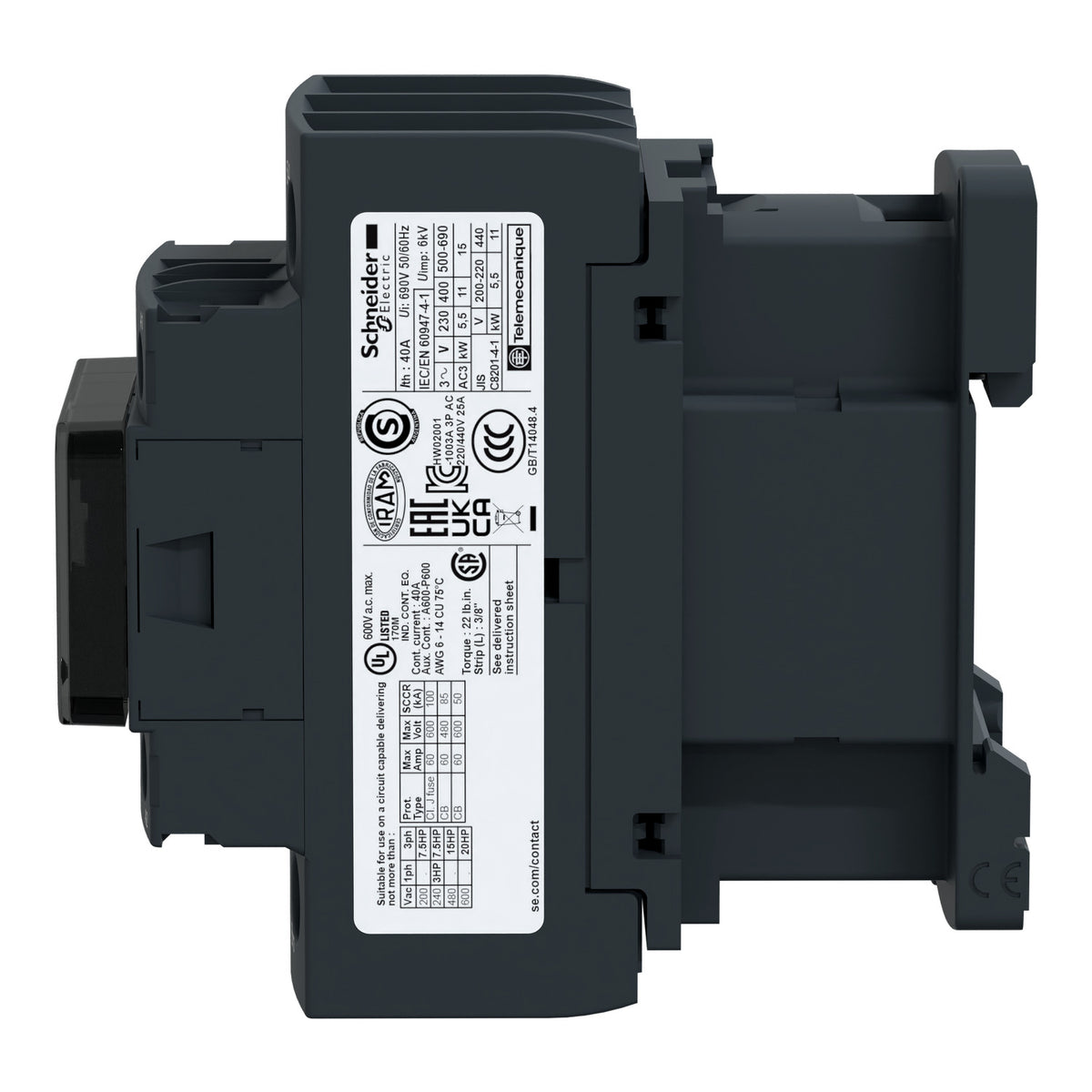

Schneider Electric LC1D32D7 TeSys Deca Contactor 3P 3NO AC-3 32 A 42 V AC Coil Contactor

The Schneider Electric LC1D32D7 is a 3-pole TeSys Deca Advanced contactor rated 32 A (AC-3) / 15 kW at 400 V, 20 hp at 480 V, with a 42 V AC 50/60 Hz coil and 1 NO + 1 NC auxiliary contacts.

Poles
3
AC-3 current (400 V)
32 A
Motor power (400 V)
15 kW
Motor power (480 V)
20 hp @ 460/480 V
Coil voltage
42 V AC
Auxiliary contacts
1 NO + 1 NC
EAN
3389110350159
Description

About the LC1D32D7

The Schneider Electric LC1D32D7 is a 3-pole TeSys Deca contactor rated 32 A AC-3 (up to 440 V) for direct-on-line motor control, switching motors up to 15 kW at 400 V. It carries a 42 V AC coil, a mechanically-linked 1 NO + 1 NC auxiliary contact with mirror-contact certification, and screw-clamp terminals on both power and control circuits for DIN-rail mounting.

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • EAC

Selection Notes

At 32 A AC-3 it covers motors up to 15 kW at 400 V; The 42 V AC coil matches low-voltage control transformers used where reduced control-circuit voltage is a panel safety requirement. The mirror-contact-certified 1 NO + 1 NC auxiliary block confirms power-contact position for safety-circuit feedback without an external contact block.

Applications (manufacturer): Resistive load, Motor control

Specification

Full specification

111 values · Last verified 03 Nov 2026

General 5

Series TeSys Deca Advanced
Contactor size / frame D32
Number of poles 3
Main contact configuration 3 NO
Utilisation categories AC-3 AC-3e AC-1 AC-4

Electrical 9

Rated operational current Ie, AC-3, 400 V 32 A
Rated motor power, AC-3, 400 V 15 kW
Motor power at other voltages, AC-3 7.5 kW @ 220/230 V · 15 kW @ 415/440 V · 18.5 kW @ 500 V · 18.5 kW @ 660/690 V
Rated operational current, AC-1 (60 °C) 50 A
Conventional free-air thermal current Ith 50 A
Rated motor power, AC-4, 400 V 7.5 kW
Max. rated operational voltage Ue 690 V
Rated insulation voltage Ui 690 V
Rated impulse withstand voltage Uimp 6 kV

Control circuit 5

Rated control supply voltage Uc 42 V
Coil type AC
Coil frequency 50/60 Hz
Coil technology Without built-in suppressor module
Coil holding power 7.5 W | VA
Show all 55 specifications ↓ Show less ↑36 more values in Identification, Auxiliary contacts, Mechanical, Dimensions and weight, Environmental, North American ratings (UL/CSA), Certifications and standards, Logistics. 56 more as published by Schneider Electric are shown on request.

Identification 11

Part number LC1D32D7
Model code D32
Brand Schneider Electric
Series TeSys Deca Advanced
Family Contactors
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110350159
Catalogue number explained LC1 = 3-pole contactor; D = TeSys Deca Advanced range; 32 = 32 A AC-3 rating; D7 = coil code (42 V AC 50/60 Hz)

Auxiliary contacts 4

Built-in auxiliary contacts, NO 1
Built-in auxiliary contacts, NC 1
Auxiliary contacts 1 NO + 1 NC
Mirror contact (IEC 60947-4-1 Annex F) Yes

Mechanical 2

Main circuit connection Screw terminal
Mounting 35 mm DIN rail, Panel (screw) mounting

Dimensions and weight 4

Width 45 mm
Height 85 mm
Depth 92 mm
Net weight 0.375 kg

Environmental 4

Ambient operating temperature -40 … 60 °C
Degree of protection IP20
Mechanical durability 15000000 cycles
Max. operating frequency, AC-3 3600 cycles/h

North American ratings (UL/CSA) 3

Motor rating (UL/CSA) 10 hp @ 200/208 V · 10 hp @ 230/240 V · 20 hp @ 460/480 V · 25 hp @ 575/600 V · 2 hp @ 115 V (1-ph) · 5 hp @ 230/240 V (1-ph)
Short-circuit current rating (SCCR) 100 kA
Max. operating voltage UL/CSA 600 V

Certifications and standards 2

Certifications CB Scheme, UL, CSA, CCC, UKCA, EAC, Marine
Conforming standards CSA C22.2 No 14, CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60335-2-40, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40, UL 60947-4-1

Logistics 6

Package dimensions (L × W × H) 112 × 92 × 50 mm
Package weight 0.419 kg
Shipping weight 0.375 kg
Ships from Türkiye
Dispatch —
Stock On request
Additional manufacturer data 56 56 more values as published by Schneider Electric, shown on request.

Additional manufacturer data 56

Product or Component Type Contactor
Device short name LC1D
Compatibility code LC1D
Protective cover With
Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 550 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 550 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 260 A 104 °F (40 °C) - 10 s for power circuit 430 A 104 °F (40 °C) - 1 s for power circuit 60 A 104 °F (40 °C) - 10 min for power circuit 138 A 104 °F (40 °C) - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 63 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 2 mOhm - Ith 50 A 50 Hz for power circuit
Power dissipation per pole 2 W AC-3 5 W AC-1 2 W AC-3e
Overvoltage category III
Pollution degree 3
Safety reliability level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Electrical durability 1.65 Mcycles 32 A AC-3 <= 440 V 1.4 Mcycles 50 A AC-1 <= 440 V 1.65 Mcycles 32 A AC-3e <= 440 V
Control circuit type AC 50/60 Hz
Control circuit voltage limits 0.3...0.6 Uc (-40...158 °F (-40...70 °C)):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40...140 °F (-40...60 °C)):operational AC 50 Hz 0.85...1.1 Uc (-40...140 °F (-40...60 °C)):operational AC 60 Hz 1...1.1 Uc (140...158 °F (60...70 °C)):operational AC 50/60 Hz
Inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Heat dissipation 2...3 W at 50/60 Hz
Operating time 12...22 ms closing 4...19 ms opening
Tightening torque Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Protective treatment THIEC 60068-2-30
Climatic withstand IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
Operating altitude 0...9842.52 ft (0...3000 m)
Fire resistance 1562 °F (850 °C) IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 8 Gn for 11 ms)
Category US1CTR121251
Discount Schedule CTR1
Returnability No
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Unit Type of Package 2 S02
Number of Units in Package 2 20
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 19.026 lb(US) (8.630 kg)
Total lifecycle Carbon footprint 147 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 2 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.2 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 144 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 0.9 kg CO2 eq.
Environmental Disclosure Product Environmental Profile
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
California proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
PVC free Yes
Recyclability potential, in % 66
Circularity Profile End of Life Information
Take-back No
WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Source: manufacturer data · Last verified: 03 Nov 2026

Documents

Documents for LC1D32D7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CB Scheme
  • UL
  • CSA
  • CCC
  • UKCA
  • EAC
  • Marine
  • CSA C22.2 No 14
  • CSA C22.2 No 60947-4-1
  • EN 60947-4-1
  • EN 60947-5-1
  • IEC 60335-1
  • IEC 60335-2-40
  • IEC 60947-4-1
  • IEC 60947-5-1
  • UL 60335-2-40
  • UL 60947-4-1
Quick answers

Questions about the LC1D32D7

What is the rated current of LC1D32D7?

The rated current of LC1D32D7 is 32 A (AC-3, 400 V).

Which supply voltage is LC1D32D7 rated for?

The rated operational voltage of LC1D32D7 is 690 V AC.

What motor power is LC1D32D7 rated for?

The rated motor power of LC1D32D7 is 15 kW (AC-3, 400 V).

Which control voltage does LC1D32D7 need?

The control voltage range of LC1D32D7 is 42 V AC.

What is the EAN of LC1D32D7?

The EAN (GTIN) of LC1D32D7 is 3389110350159.

Where does LC1D32D7 ship from, and how fast?

LC1D32D7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
