Part number
LC1D25AM7
Model no
LC1D
$52.88 On request Dispatch — · From TürkiyeGet a Quote

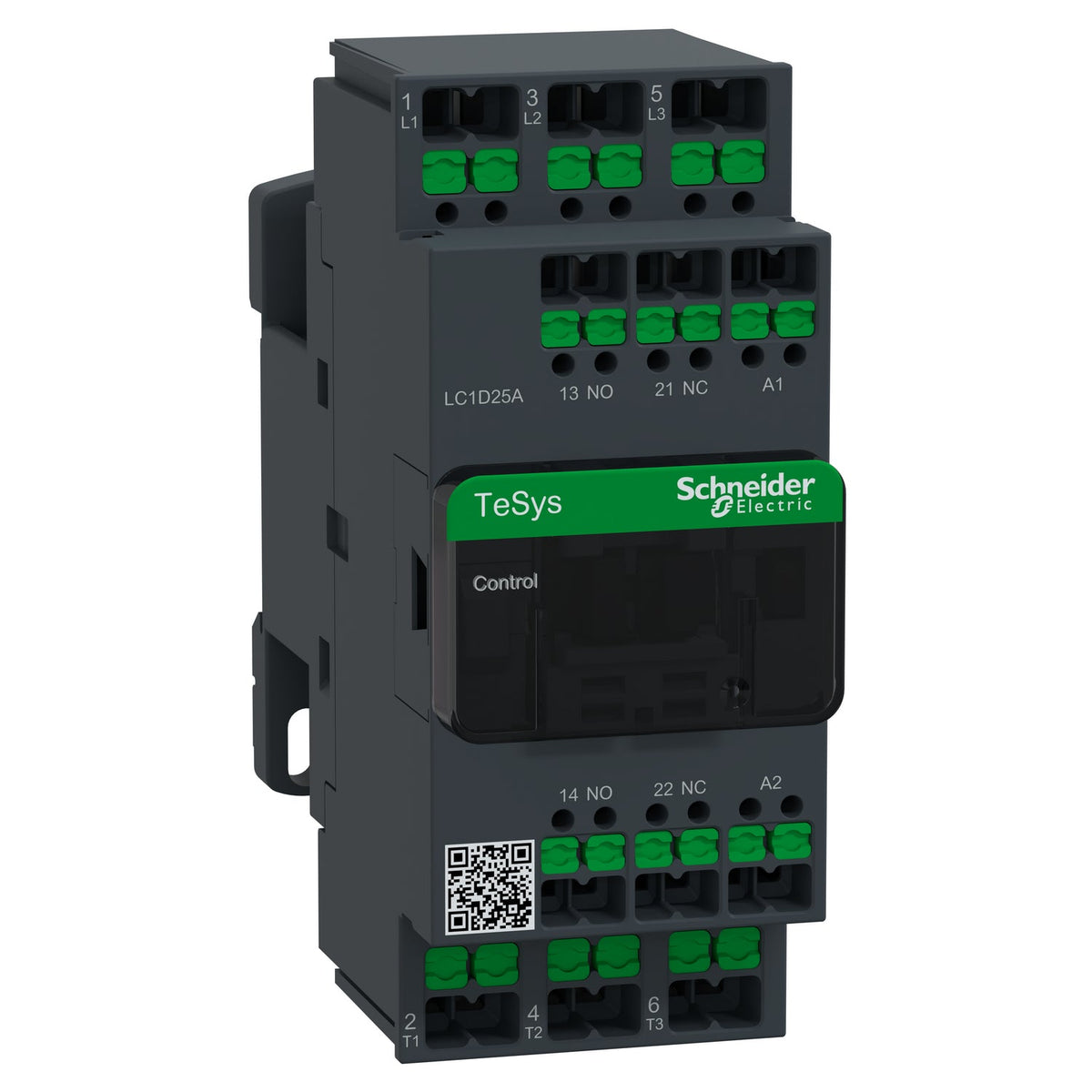

Schneider Electric LC1D25AM7 TeSys Deca Contactor 3P 3NO AC-3 25 A ≤440V 220 V AC Coil Snap-In Contactor

TeSys Deca 3P contactor, 25A AC-3, 11kW at 400V, 220 V AC, 50/60 Hz coil.

Rated current
25 A
Rated operational voltage
220, 50–60 Hz V AC
Motor power
11 kW
Poles
3P
Description

About the LC1D

The Schneider Electric LC1D25AM7 is a TeSys Deca 3-pole (3NO) contactor rated 25 A AC-3 at up to 440 V, switching 11 kW motors at 400 V with a 220 V AC, 50/60 Hz coil. Built-in 1NO+1NC mirror-certified auxiliary contacts and snap-in power and control terminals cut panel wiring time. It switches up to 3600 operations per hour and is rated for ambient temperatures to 60 degrees Celsius.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • CCC
  • IEC 60947-4-1
  • UL 60947-4-1

Selection Notes

Size the LC1D25AM7 to motors up to 11 kW at 400 V where the full 25 A AC-3 rating applies continuously; the 40 A AC-1 figure only covers resistive loads, not motor starting current, so do not use it to size a motor branch. The 220 V AC, 50/60 Hz coil variant needs no separate DC supply and suits panels already running 220 V control circuits; for motors above 11 kW at 400 V, the next current rating in the same TeSys Deca family keeps the identical 45 mm frame width and mounting pattern.

Specification

Full specification

87 values · Last verified 29 Oct 2026

Main 9

Range of product TeSys Deca Advanced
Product or component type Contactor
Device short name LC1D
Contactor application Motor control Resistive load
Utilisation category AC-1 AC-3 AC-3e AC-4
Poles description 3P
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC
[Ie] rated operational current 25 A (at <60 °C) at <= 440 V AC-3 for power circuit 25 A (at <60 °C) at <= 440 V AC-3e for power circuit 40 A (at <60 °C) at <= 440 V AC-1 for power circuit
[Uc] control circuit voltage 220 V AC 50/60 Hz

Complementary 35

Motor power kW 5.5 kW at 220...230 V AC 50/60 Hz (AC-3) 11 kW at 380...400 V AC 50/60 Hz (AC-3) 11 kW at 415...440 V AC 50/60 Hz (AC-3) 15 kW at 500 V AC 50/60 Hz (AC-3) 15 kW at 660...690 V AC 50/60 Hz (AC-3) 5.5 kW at 400 V AC 50/60 Hz (AC-4) 5.5 kW at 220...230 V AC 50/60 Hz (AC-3e) 11 kW at 380...400 V AC 50/60 Hz (AC-3e) 11 kW at 415...440 V AC 50/60 Hz (AC-3e) 15 kW at 500 V AC 50/60 Hz (AC-3e) 15 kW at 660...690 V AC 50/60 Hz (AC-3e)
Compatibility code LC1D
Pole contact composition 3 NO
Protective cover With
[Ith] conventional free air thermal current 40 A (at 60 °C) for power circuit 10 A (at 60 °C) for signalling circuit
Irms rated making capacity 450 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 450 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 240 A 40 °C - 10 s for power circuit 380 A 40 °C - 1 s for power circuit 50 A 40 °C - 10 min for power circuit 120 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 40 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 2 mOhm - Ith 40 A 50 Hz for power circuit
Power dissipation per pole 1.25 W AC-3 1.25 W AC-3e 3.2 W AC-1
[Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability 15 Mcycles
Electrical durability 1.65 Mcycles 25 A AC-3 at Ue <= 440 V 1.4 Mcycles 40 A AC-1 at Ue <= 440 V 1.65 Mcycles 25 A AC-3e at Ue <= 440 V
Control circuit type AC at 50/60 Hz standard
Coil technology Without built-in suppressor module
Control circuit voltage limits 0.3...0.6 Uc (-40...70 °C):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40...60 °C):operational AC 50 Hz 0.85...1.1 Uc (-40...60 °C):operational AC 60 Hz 1...1.1 Uc (60...70 °C):operational AC 50/60 Hz
Inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C) 70 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C) 7 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 2...3 W at 50/60 Hz
Operating time 12...22 ms closing 4...19 ms opening
Maximum operating rate 3600 cyc/h at 60 °C
Connections - terminals Control circuit: snap-in terminal 1 0.5...4 mm2 - cable stiffness: flexible without cable end Control circuit: snap-in terminal 2 0.5...4 mm2 - cable stiffness: flexible without cable end Control circuit: snap-in terminal 1 0.5...2.5 mm2 - cable stiffness: flexible with cable end Control circuit: snap-in terminal 2 0.5...2.5 mm2 - cable stiffness: flexible with cable end Power circuit: snap-in terminal 1 0.75...6 mm2 - cable stiffness: flexible without cable end Power circuit: snap-in terminal 2 0.75...6 mm2 - cable stiffness: flexible without cable end Power circuit: snap-in terminal 1 0.75...4 mm2 - cable stiffness: flexible with cable end Power circuit: snap-in terminal 2 0.75...4 mm2 - cable stiffness: flexible with cable end
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Mounting support Plate Rail

Environment 13

Standards EN 60947-4-1 IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
Product certifications CB Scheme CCC cULus CE UKCA EU-RO-MR by DNV
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Climatic withstand Conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Permissible ambient air temperature around the device -40...60 °C 60...70 °C with derating
Operating altitude 0...3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) Shocks contactor closed (15 Gn for 11 ms) Shocks contactor open (8 Gn for 11 ms)
Height 110 mm
Width 45 mm
Depth 92 mm
Net weight 454 g
Show all 87 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LC1D25AM7
Type designation LC1D
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 10.5 cm
Package 1 Length 11.5 cm
Package 1 Weight 474 g
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.425 kg
Unit Type of Package 3 P06
Number of Units in Package 3 240
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 127.3 kg
Shipping weight 0.454 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 29 Oct 2026

Documents

Documents for LC1D25AM7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • CB Scheme
Quick answers

Questions about the LC1D

What is the rated current of LC1D?

The rated current of LC1D is 25 A.

Which supply voltage is LC1D rated for?

The rated operational voltage of LC1D is 220, 50–60 Hz V AC.

What motor power is LC1D rated for?

The rated motor power of LC1D is 11 kW.

What is the HS code of LC1D for customs?

The tariff (HS) code on file for LC1D is 853650.

Where does LC1D ship from, and how fast?

LC1D ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
