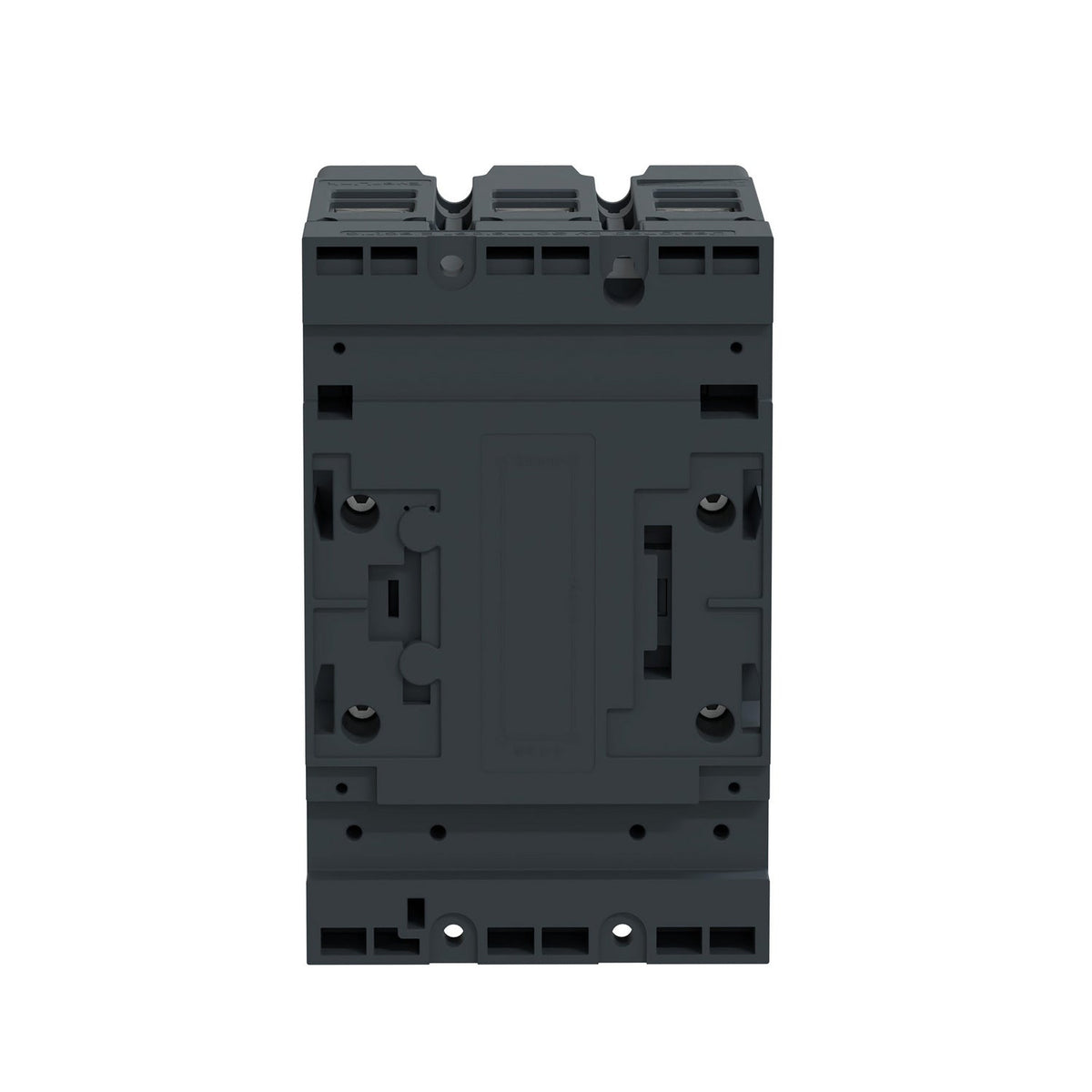

The Schneider Electric LC1D150AKUE is a 3-pole TeSys Deca Advanced contactor rated 150 A (AC-3) / 75 kW at 400 V, with a 100–250 V AC 50/60 Hz coil and 1 NO + 1 NC auxiliary contacts.
The Schneider Electric LC1D150AKUE is a 3-pole TeSys Deca Advanced contactor rated 150 A AC-3 at up to 440 V, switching motors up to 75 kW at 400 V and 80-90 kW at 415-440 V. It uses a 100-250 V AC/DC wide-band electronic coil and connects via EverLink cable terminals up to 120 mm², with 1 built-in normally-open and 1 mirror-certified normally-closed auxiliary contact.
The LC1D150AKUE is the top of the TeSys Deca Advanced EverLink frame, stepping up to 90 kW at 440 V. It shares the EverLink cable terminal connection and 100-250 V AC/DC coil with the LC1D115AKUE, so panel wiring and control circuits carry over between the two ratings. For the same 115 A current with lugs-ring or busbar connections instead, use the LC1D115A6KUE.
Applications (manufacturer): Motor control, Resistive load
| Series | TeSys Deca Advanced |
|---|---|
| Contactor size / frame | D150 |
| Number of poles | 3 |
| Main contact configuration | 3 NO |
| Utilisation categories | AC-3 AC-3e AC-1 AC-4 DC-1 DC-3 DC-5 |
| Rated operational current Ie, AC-3, 400 V | 150 A |
|---|---|
| Rated motor power, AC-3, 400 V | 75 kW |
| Motor power at other voltages, AC-3 | 40 kW @ 230 V · 80 kW @ 415 V · 90 kW @ 440 V · 90 kW @ 500 V · 100 kW @ 690 V · 75 kW @ 1000 V |
| Rated operational current, AC-1 (60 °C) | 200 A |
| Conventional free-air thermal current Ith | 200 A |
| Rated motor power, AC-4, 400 V | 37 kW |
| Max. rated operational voltage Ue | 1000 V |
| Rated insulation voltage Ui | 1000 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Rated control supply voltage Uc | 100–250 V |
|---|---|
| Coil type | AC |
| Coil frequency | 50/60 Hz |
| Coil technology | Built-in bidirectional peak limiting diode suppressor |
| Coil holding power | 8 W | VA |
| Part number | LC1D150AKUE |
|---|---|
| Model code | D150 |
| Brand | Schneider Electric |
| Series | TeSys Deca Advanced |
| Family | Contactors |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486977057 |
| Catalogue number explained | LC1 = 3-pole contactor; D = TeSys Deca Advanced range; 150 = 150 A AC-3 rating; AKUE = coil code (100–250 V AC 50/60 Hz) |
| Built-in auxiliary contacts, NO | 1 |
|---|---|
| Built-in auxiliary contacts, NC | 1 |
| Auxiliary contacts | 1 NO + 1 NC |
| Mirror contact (IEC 60947-4-1 Annex F) | Yes |
| Main circuit connection | Box lug / connector |
|---|---|
| Mounting | Panel (screw) mounting |
| Width | 97 mm |
|---|---|
| Height | 152 mm |
| Depth | 155 mm |
| Net weight | 2.4 kg |
| Ambient operating temperature | -40 … 60 °C |
|---|---|
| Degree of protection | IP20 |
| Mechanical durability | 8000000 cycles |
| Max. operating frequency, AC-3 | 2400 cycles/h |
| Max. operating voltage UL/CSA | 600 V |
|---|
| Certifications | CB Scheme, cULus, CCC, CE, UKCA, DNV |
|---|---|
| Conforming standards | CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1, UL 60947-5-1 |
| Package dimensions (L × W × H) | 182 × 132 × 189 mm |
|---|---|
| Package weight | 2.668 kg |
| Shipping weight | 2.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Range | TeSys Deca |
|---|---|
| Product or Component Type | Contactor |
| Device short name | LC1D |
| Compatibility code | LC1D |
| Protective cover | With |
| Irms rated making capacity | 1885 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 1440 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 350 A 104 °F (40 °C) - 10 min for power circuit 600 A 104 °F (40 °C) - 1 min for power circuit 1280 A 104 °F (40 °C) - 10 s for power circuit 1800 A 104 °F (40 °C) - 1 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit |
| Associated fuse rating | 160 A aM at <= 440 V for power circuit 125 A aM at <= 690 V for power circuit 250 A gG at <= 690 V for power circuit 10 A gG for signalling circuit 0.2 A gG for control circuit |
| Average impedance | 0.45 mOhm - Ith 200 A 50 Hz for power circuit |
| Power dissipation per pole | 8 W AC-3 8 W AC-3e 22 W AC-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| Safety reliability level | B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1 B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Electrical durability | 0.85 Mcycles 150 A AC-3 <= 440 V 0.85 Mcycles 150 A AC-3e <= 440 V 0.5 Mcycles 200 A AC-1 <= 440 V |
| Control circuit type | AC 50/60 Hz DC |
| Control circuit voltage limits | 0.8 Uc Min...1.1 Uc Max (-40...140 °F (-40...60 °C)):operational AC/DC 0.1 Uc Max (-40...140 °F (-40...60 °C)):drop-out AC/DC |
| Inrush power in VA | 170 VA (at 68 °F (20 °C)) |
| Inrush power in W | 105 W 68 °F (20 °C)) |
| Hold-in power consumption in W | 4.5 W 68 °F (20 °C) |
| Heat dissipation | 1.1 W at 20 °C |
| Operating time | 25...90 ms opening 20...90 ms closing |
| Tightening torque | Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 |
| Signalling circuit frequency | 16.67...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Protective treatment | NoneIEC 60068-2-30 |
| Climatic withstand | IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat |
| Operating altitude | 0...9842.52 ft (0...3000 m) without derating |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-11 |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) IEC 60068-2-6 Vibrations contactor closed 4 Gn, 5...300 Hz) IEC 60068-2-6 Shocks contactor open 10 Gn for 11 ms) IEC 60068-2-27 Shocks contactor closed 15 Gn for 11 ms) IEC 60068-2-27 |
| Category | US1CTR121252 |
| Discount Schedule | CTR1 |
| Returnability | Yes |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 29.528 in (75.000 cm) |
| Package 2 Width | 23.622 in (60.000 cm) |
| Package 2 Length | 31.496 in (80.000 cm) |
| Package 2 Weight | 308.647 lb(US) (140.000 kg) |
| Total lifecycle Carbon footprint | 366 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 26 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.4 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.3 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 334 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 5 kg CO2 eq. |
| Environmental Disclosure | Product Environmental Profile |
| Packaging made with recycled cardboard | Yes |
| Packaging without single use plastic | No |
| SCIP Number | 608af421-265e-4dfd-b0b3-1192c9364536 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen content performance | Halogen free plastic parts product |
| Recyclability potential, in % | 78 |
| Circularity Profile | End of Life Information |
| Take-back | No |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Source: manufacturer data · Last verified: 03 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LC1D150AKUE is 150 A (AC-3, 400 V).
The rated operational voltage of LC1D150AKUE is 1000 V AC.
The rated motor power of LC1D150AKUE is 75 kW (AC-3, 400 V).
The control voltage range of LC1D150AKUE is 100–250 V AC.
The EAN (GTIN) of LC1D150AKUE is 3606486977057.
LC1D150AKUE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
