Schneider Electric LC1D12KUE TeSys Deca Advanced Contactor 3P 3NO AC-3 12 A 100-250 V AC/DC Coil Contactor

% $-61.83
Schneider Electric LC1D12KUE TeSys Deca Advanced contactor 3P 12 A 100-250 V AC/DC coil
Schneider Electric LC1D12KUE TeSys Deca Advanced contactor 3P 12 A 100-250 V AC/DC coil

Schneider Electric LC1D12KUE TeSys Deca Advanced Contactor 3P 3NO AC-3 12 A 100-250 V AC/DC Coil Contactor

Brand: Schneider Electric
Reference No: LC1D12KUE
Catalog No: LC1D12KUE
Series: TeSys Deca Advanced
Tariff Code (HS): 853650
Rated Current: 12 A
Power: 5.5 kW
Rated Voltage: 100-250 V AC/DC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$61.83

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

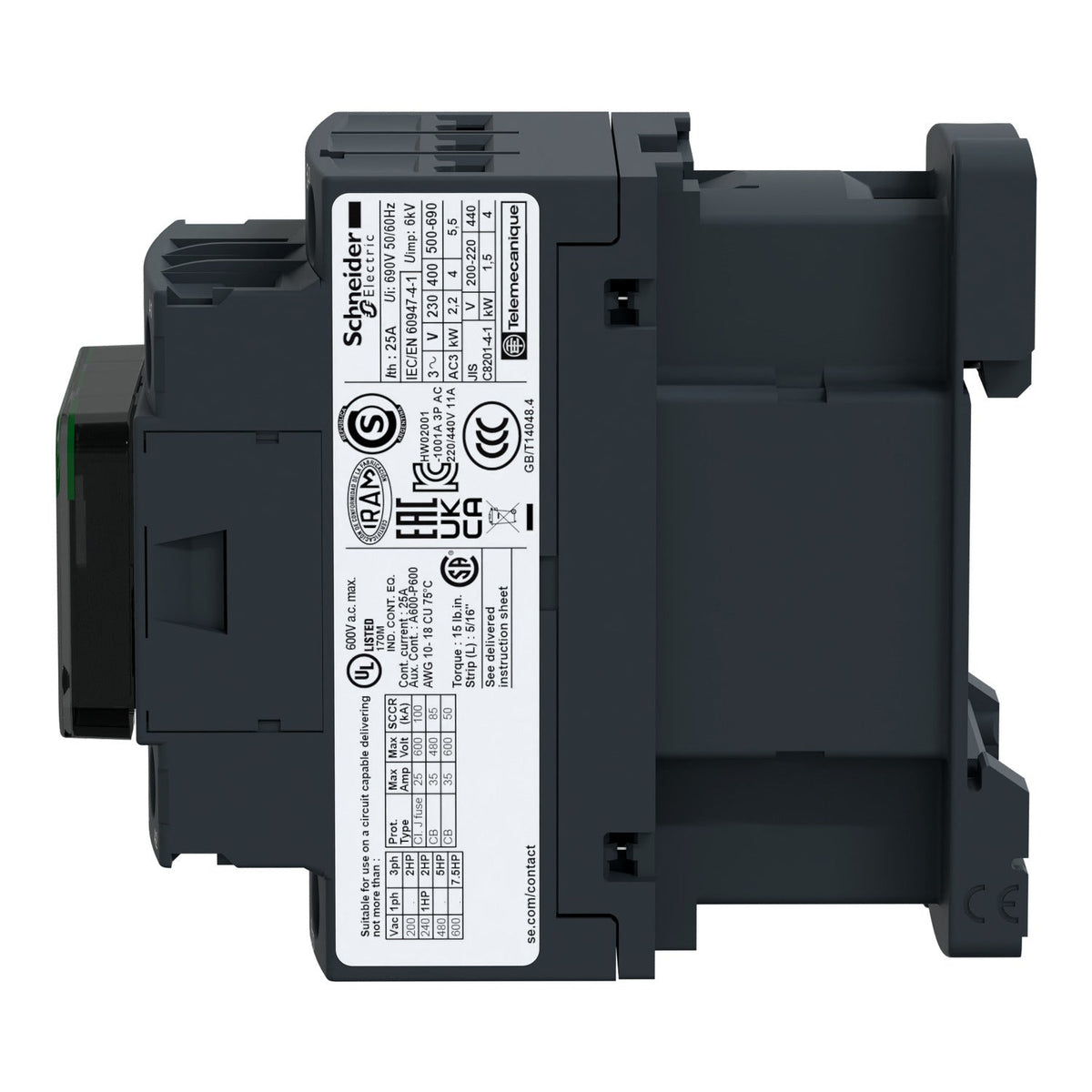

The Schneider Electric LC1D12KUE is a 3-pole TeSys Deca Advanced contactor rated 12 A AC-3 at up to 440 V, switching motors up to 5.5 kW at 400 V and 440 V. It uses a sealed, low-consumption 100-250 V AC/DC wide-band electronic coil and includes 1 built-in normally-open and 1 mirror-certified normally-closed auxiliary contact, with screw clamp terminals in a compact 45 mm housing.

Technical Specifications

Reference LC1D12KUE
Brand Schneider Electric
Range TeSys Deca Advanced
Device Short Name LC1D
Poles 3P
Pole Contact Composition 3 NO
Utilisation Category AC-1, AC-3, AC-3e
[Ie] Rated Current (AC-3, <=440 V) 12 A
[Ie] Rated Current (AC-1, <=440 V) 25 A
Motor Power (400 V AC-3) 5.5 kW
Motor Power (500 V AC-3) 7.5 kW
[Uc] Control Circuit Voltage 100-250 V AC/DC
Coil Technology Wide-band electronic, low consumption
Auxiliary Contact Composition 1 NO + 1 NC (mirror)
[Ue] Rated Operational Voltage <= 690 V AC
Rated Breaking Capacity 250 A at 440 V
Maximum Operating Rate 3600 cyc/h
Mounting Support Rail, plate
IP Degree of Protection IP20
Ambient Air Temperature (Operation) -40°C to 60°C
Height x Width x Depth 77 x 45 x 86 mm
Net Weight 0.373 kg
GTIN 3606480987687

Certifications & Standards

  • CCC
  • CSA
  • EAC
  • UL
  • DNV-GL
  • EN/IEC 60947-4-1

Selection Notes

The LC1D12KUE's 100-250 V AC/DC coil suits panels standardized on a single wide-band control voltage across both AC and DC supplies, without the 24-60 V band of the BNE coil variant. Up to a 480 V 35 A circuit breaker it reaches 85 kA SCCR, or up to 100 kA with a 600 V 30 A Class J/CC fuse. For the same 12 A rating with a 24-60 V coil instead, use the LC1D12BNE.

Technical Details

Short Description
3P TeSys Deca Advanced contactor, AC-3 12 A at up to 440 V, 5.5 kW at 400 V, 100-250 V AC/DC electronic coil.
Rated Current (Ampere)
12 A
Rated Voltage (VAC)
100-250 V AC/DC
Mounting Type
Rail, plate
Protection Type
IP20
Catalog No
LC1D12KUE
Number of Poles
3P
Power (kW)
5.5 kW
Delivery Date (Days)
30 days
Model Number
LC1D
Tariff Code
853650
