LC1D12ED
$42.00 On request Dispatch — · From TürkiyeGet a Quote

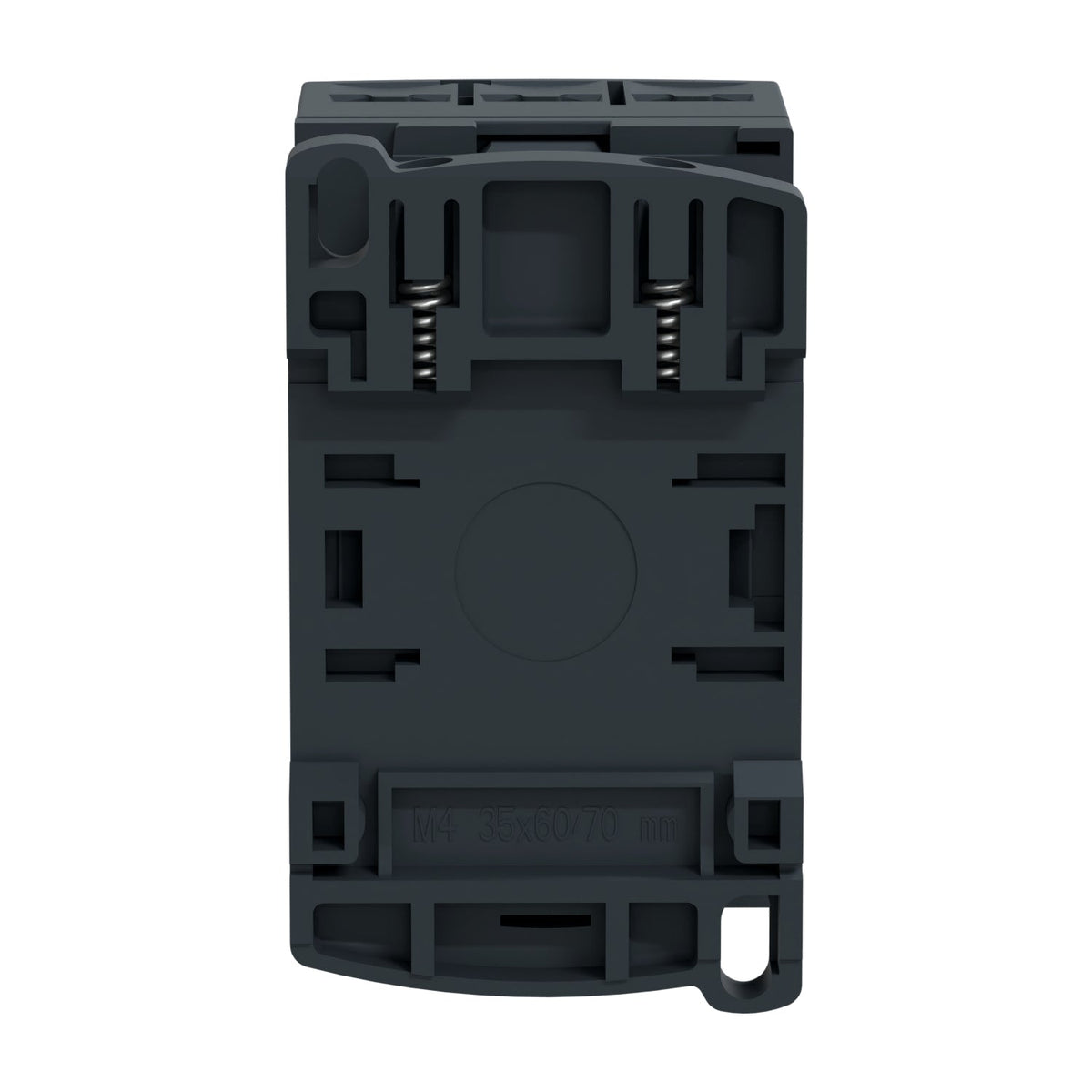

Schneider Electric LC1D12ED TeSys Deca Contactor 3P 3NO AC-3 12 A 48 V DC Coil Contactor

The Schneider Electric LC1D12ED is a 3-pole TeSys Deca Advanced contactor rated 12 A (AC-3) / 5.5 kW at 400 V, 7.5 hp at 480 V, with a 48 V DC coil and 1 NO + 1 NC auxiliary contacts.

Poles
3
AC-3 current (400 V)
12 A
Motor power (400 V)
5.5 kW
Motor power (480 V)
7.5 hp @ 460/480 V
Coil voltage
48 V DC
Auxiliary contacts
1 NO + 1 NC
EAN
3389110353891
Description

About the LC1D12ED

The Schneider Electric LC1D12ED is a TeSys Deca 3-pole (3NO) contactor rated 12 A AC-3 at up to 440 V, switching 5.5 kW motors at 400 V. It runs on a 48 V DC coil with a built-in transient suppressor module, and 1NO+1NC mirror-certified auxiliary contacts are standard. Power and control circuits both terminate on screw clamp terminals in the compact 45 mm frame.

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • Marine

Selection Notes

A 48 V DC coil with an integral transient suppressor makes the LC1D12ED a straightforward fit for relay-logic panels or battery-backed control circuits, since the suppressor removes the need for an external freewheeling diode across the coil. At 12 A AC-3 it covers 5.5 kW motors at 400 V; where the same 48 V DC coil is needed at higher current, the 38 A and 95 A LC1D ED variants share the suppressor technology.

Applications (manufacturer): Motor control, Resistive load

Specification

Full specification

118 values · Last verified 03 Nov 2026

General 5

Series TeSys Deca Advanced
Contactor size / frame D12
Number of poles 3
Main contact configuration 3 NO
Utilisation categories AC-3 AC-3e AC-1 AC-4

Electrical 9

Rated operational current Ie, AC-3, 400 V 12 A
Rated motor power, AC-3, 400 V 5.5 kW
Motor power at other voltages, AC-3 3 kW @ 220/230 V · 5.5 kW @ 415/440 V · 7.5 kW @ 500 V · 7.5 kW @ 660/690 V
Rated operational current, AC-1 (60 °C) 25 A
Conventional free-air thermal current Ith 25 A
Rated motor power, AC-4, 400 V 3.7 kW
Max. rated operational voltage Ue 690 V
Rated insulation voltage Ui 690 V
Rated impulse withstand voltage Uimp 6 kV

Control circuit 4

Rated control supply voltage Uc 48 V
Coil type DC
Coil technology With integral suppression device
Coil holding power 5.4 W | VA
Show all 54 specifications ↓ Show less ↑36 more values in Identification, Auxiliary contacts, Mechanical, Dimensions and weight, Environmental, North American ratings (UL/CSA), Certifications and standards, Logistics. 64 more as published by Schneider Electric are shown on request.

Identification 11

Part number LC1D12ED
Model code D12
Brand Schneider Electric
Series TeSys Deca Advanced
Family Contactors
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110353891
Catalogue number explained LC1 = 3-pole contactor; D = TeSys Deca Advanced range; 12 = 12 A AC-3 rating; ED = coil code (48 V DC)

Auxiliary contacts 4

Built-in auxiliary contacts, NO 1
Built-in auxiliary contacts, NC 1
Auxiliary contacts 1 NO + 1 NC
Mirror contact (IEC 60947-4-1 Annex F) Yes

Mechanical 2

Main circuit connection Screw terminal
Mounting 35 mm DIN rail, Panel (screw) mounting

Dimensions and weight 4

Width 45 mm
Height 77 mm
Depth 95 mm
Net weight 0.485 kg

Environmental 4

Ambient operating temperature -40 … 60 °C
Degree of protection IP20
Mechanical durability 30000000 cycles
Max. operating frequency, AC-3 3600 cycles/h

North American ratings (UL/CSA) 3

Motor rating (UL/CSA) 3 hp @ 200/208 V · 3 hp @ 230/240 V · 7.5 hp @ 460/480 V · 10 hp @ 575/600 V · 0.5 hp @ 115 V (1-ph) · 2 hp @ 230/240 V (1-ph)
Short-circuit current rating (SCCR) 100 kA
Max. operating voltage UL/CSA 600 V

Certifications and standards 2

Certifications CB Scheme, UL, CSA, CCC, UKCA, EAC, Marine
Conforming standards CSA C22.2 No 14, CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60335-2-40, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40, UL 60947-4-1

Logistics 6

Package dimensions (L × W × H) 112 × 92 × 50 mm
Package weight 0.519 kg
Shipping weight 0.485 kg
Ships from Türkiye
Dispatch —
Stock On request
Additional manufacturer data 64 64 more values as published by Schneider Electric, shown on request.

Additional manufacturer data 64

Product or Component Type Contactor
Device short name LC1D
Compatibility code LC1D
Protective cover With
Irms rated making capacity 250 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 105 A 104 °F (40 °C) - 10 s for power circuit 210 A 104 °F (40 °C) - 1 s for power circuit 30 A 104 °F (40 °C) - 10 min for power circuit 61 A 104 °F (40 °C) - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 40 A gG at <= 690 V coordination type 1 for power circuit 25 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole 0.36 W AC-3 1.56 W AC-1 0.36 W AC-3e
Overvoltage category III
Pollution degree 3
Safety reliability level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Electrical durability 2 Mcycles 12 A AC-3 <= 440 V 0.8 Mcycles 25 A AC-1 <= 440 V 2 Mcycles 12 A AC-3e <= 440 V
Control circuit type DC standard
Control circuit voltage limits 0.1...0.25 Uc (-40...158 °F (-40...70 °C)):drop-out DC 0.7...1.25 Uc (-40...140 °F (-40...60 °C)):operational DC 1...1.25 Uc (140...158 °F (60...70 °C)):operational DC
Inrush power in W 5.4 W 68 °F (20 °C))
Operating time 63 ±15 % ms closing 20 ±20 % ms opening
Time constant 28 ms
Tightening torque Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Protective treatment THIEC 60068-2-30
Climatic withstand IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
Operating altitude 0...9842.52 ft (0...3000 m)
Fire resistance 1562 °F (850 °C) IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor open 10 Gn for 11 ms) Shocks contactor closed 15 Gn for 11 ms)
Category US1CTR121254
Discount Schedule CTR1
Returnability No
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 17.822 lb(US) (8.084 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 120
Package 3 Height 17.717 in (45.000 cm)
Package 3 Width 23.622 in (60.000 cm)
Package 3 Length 31.496 in (80.000 cm)
Package 3 Weight 164.245 lb(US) (74.500 kg)
Total lifecycle Carbon footprint 37 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 3 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.1 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 33 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 1 kg CO2 eq.
Environmental Disclosure Product Environmental Profile
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
SCIP Number 50ae7612-fd2e-41e4-a369-50d0dea6e592
California proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
PVC free Yes
Recyclability potential, in % 75
Circularity Profile End of Life Information
Take-back No
WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Source: manufacturer data · Last verified: 03 Nov 2026
