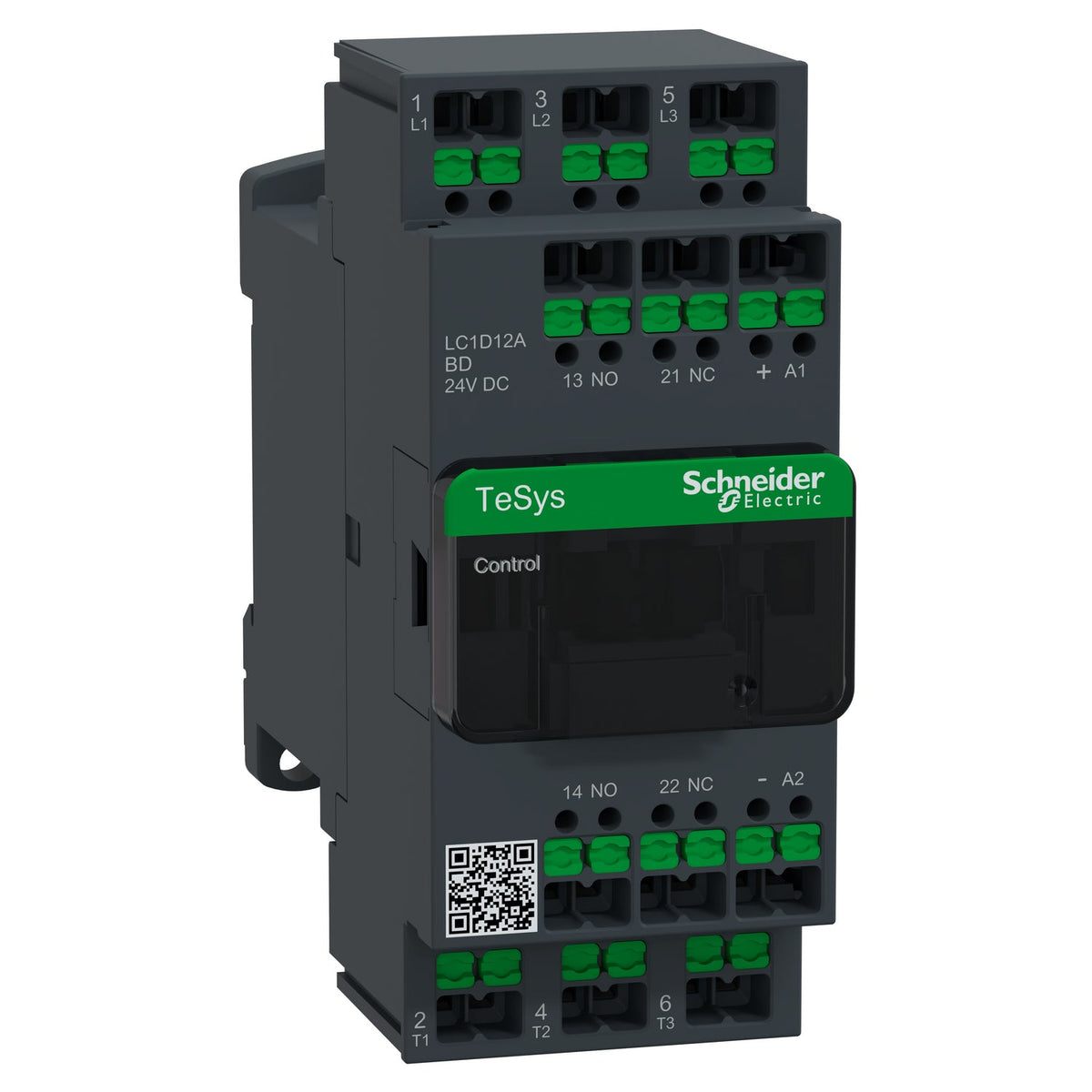

Schneider Electric LC1D12ABD TeSys Deca Contactor 3P 3NO AC-3 12 A ≤440V 24 V DC Coil Snap-In Contactor

TeSys Deca 3P contactor, 12A AC-3, 5.5kW at 400V, 24 V DC coil.

Rated current
12 A
Rated operational voltage
24 V DC
Motor power
5.5 kW
Poles
3P
EAN
3606487538950
Description

About the LC1D

The Schneider Electric LC1D12ABD is a TeSys Deca 3-pole (3NO) contactor rated 12 A AC-3 at up to 440 V, switching 5.5 kW motors at 400 V with a 24 V DC coil. Built-in 1NO+1NC mirror-certified auxiliary contacts and snap-in power and control terminals cut panel wiring time. It switches up to 3600 operations per hour and is rated for ambient temperatures to 60 degrees Celsius.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • CCC
  • IEC 60947-4-1
  • UL 60947-4-1

Selection Notes

Size the LC1D12ABD to motors up to 5.5 kW at 400 V where the full 12 A AC-3 rating applies continuously; the 25 A AC-1 figure only covers resistive loads, not motor starting current, so do not use it to size a motor branch. The 24 V DC coil draws a steady 5.4 W holding power and wires directly to PLC outputs or a DC control rail without an interposing relay; for motors above 5.5 kW at 400 V, the next current rating in the same TeSys Deca family keeps the identical 45 mm frame width and mounting pattern.

Specification

Full specification

71 values · Last verified 29 Oct 2026

Main 9

Range of Product TeSys Deca Advanced
Product or Component Type Contactor
Device short name LC1D
Contactor application Motor control Resistive load
Utilisation category AC-1 AC-3 AC-3e AC-4
Poles description 3P
[Ue] rated operational voltage Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
[Ie] rated operational current 12 A (at <140 °F (60 °C)) at <= 440 V AC-3 for power circuit 12 A (at <140 °F (60 °C)) at <= 440 V AC-3e for power circuit 25 A (at <140 °F (60 °C)) at <= 440 V AC-1 for power circuit
[Uc] control circuit voltage 24 V DC

Complementary 35

Motor power kW 3 kW at 220...230 V AC 50/60 Hz (AC-3) 5.5 kW at 380...400 V AC 50/60 Hz (AC-3) 5.5 kW at 415...440 V AC 50/60 Hz (AC-3) 7.5 kW at 500 V AC 50/60 Hz (AC-3) 7.5 kW at 660...690 V AC 50/60 Hz (AC-3) 3.7 kW at 400 V AC 50/60 Hz (AC-4) 3 kW at 220...230 V AC 50/60 Hz (AC-3e) 5.5 kW at 380...400 V AC 50/60 Hz (AC-3e) 5.5 kW at 415...440 V AC 50/60 Hz (AC-3e) 7.5 kW at 500 V AC 50/60 Hz (AC-3e) 7.5 kW at 660...690 V AC 50/60 Hz (AC-3e)
Compatibility code LC1D
Pole contact composition 3 NO
Protective cover With
[Ith] conventional free air thermal current 25 A (at 140 °F (60 °C)) for power circuit 10 A (at 140 °F (60 °C)) for signalling circuit
Irms rated making capacity 250 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 105 A 104 °F (40 °C) - 10 s for power circuit 210 A 104 °F (40 °C) - 1 s for power circuit 30 A 104 °F (40 °C) - 10 min for power circuit 61 A 104 °F (40 °C) - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 40 A gG at <= 690 V coordination type 1 for power circuit 25 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole 0.36 W AC-3 0.36 W AC-3e 1.56 W AC-1
[Ui] rated insulation voltage Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 6 kV IEC 60947
Safety reliability level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Mechanical durability 30 Mcycles
Electrical durability 2 Mcycles 12 A AC-3 <= 440 V 0.8 Mcycles 25 A AC-1 <= 440 V 2 Mcycles 12 A AC-3e <= 440 V
Control circuit type DC standard
Coil technology Built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits 0.1...0.25 Uc (-40...158 °F (-40...70 °C)):drop-out DC 50/60 Hz 0.7...1.25 Uc (-40...140 °F (-40...60 °C)):operational DC 50 Hz 1...1.25 Uc (140...158 °F (60...70 °C)):operational DC 60 Hz
Inrush power in W 5.4 W 68 °F (20 °C))
Hold-in power consumption in W 5.4 W 68 °F (20 °C)
Operating time 63 ±15 % ms closing 20 ±20 % ms opening
Time constant 28 ms
Maximum operating rate 3600 cyc/h at 60 °C
Connections - terminals Control circuit: snap-in terminal 1 0.0008...0.006 in2 (0.5...4 mm2) - cable stiffness: flexible without cable end Control circuit: snap-in terminal 2 0.0008...0.006 in2 (0.5...4 mm2) - cable stiffness: flexible without cable end Control circuit: snap-in terminal 1 0.0008...0.004 in2 (0.5...2.5 mm2) - cable stiffness: flexible with cable end Control circuit: snap-in terminal 2 0.0008...0.004 in2 (0.5...2.5 mm2) - cable stiffness: flexible with cable end Power circuit: snap-in terminal 1 0.0008...0.006 in2 (0.5...4 mm2) - cable stiffness: flexible without cable end Power circuit: snap-in terminal 2 0.0008...0.006 in2 (0.5...4 mm2) - cable stiffness: flexible without cable end Power circuit: snap-in terminal 1 0.0008...0.004 in2 (0.5...2.5 mm2) - cable stiffness: flexible with cable end Power circuit: snap-in terminal 2 0.0008...0.004 in2 (0.5...2.5 mm2) - cable stiffness: flexible with cable end
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Mounting Support Plate Rail

Environment 13

Standards EN 60947-4-1 IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
Product Certifications CB Scheme CCC cULus CE UKCA EU-RO-MR by DNV
IP degree of protection IP20 front face IEC 60529
Protective treatment THIEC 60068-2-30
Climatic withstand IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
Permissible ambient air temperature around the device -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating
Operating altitude 0...9842.52 ft (0...3000 m)
Fire resistance 1562 °F (850 °C) IEC 60695-2-1
Mechanical robustness Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 10 Gn for 11 ms)
Height 4.2 in (107 mm)
Width 1.8 in (45 mm)
Depth 3.7 in (95 mm)
Net Weight 19.8 oz (562 g)
Show all 71 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LC1D12ABD
Type designation LC1D
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487538950

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.562 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 29 Oct 2026
