Schneider Electric LC1D09BNE TeSys Deca Advanced Contactor 3P 3NO AC-3 9 A 24-60 V AC/DC Coil Contactor

% $-58.06

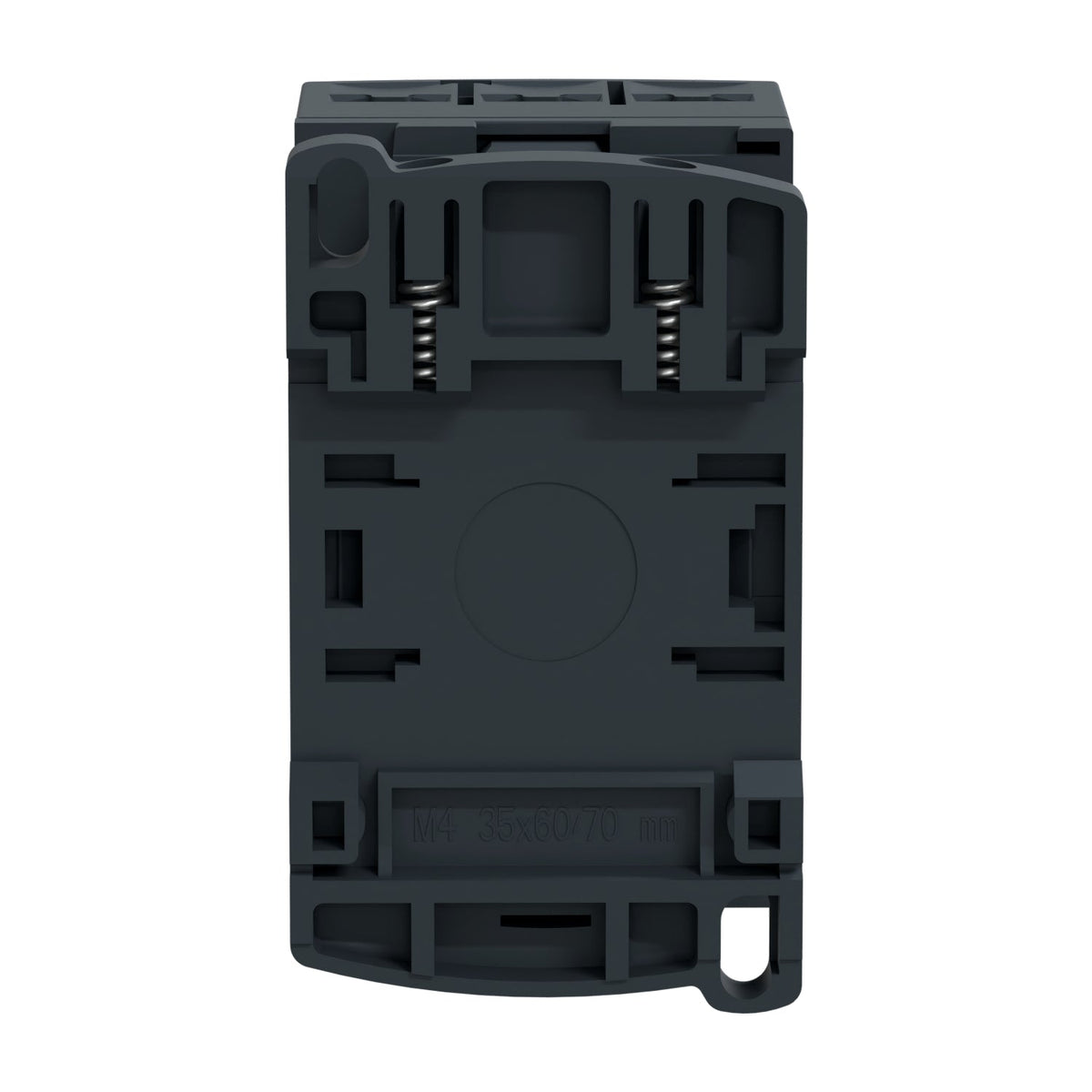

Schneider Electric LC1D09BNE TeSys Deca Advanced contactor 3P 9 A 24-60 V AC/DC coil
Schneider Electric LC1D09BNE TeSys Deca Advanced contactor 3P 9 A 24-60 V AC/DC coil

Schneider Electric LC1D09BNE TeSys Deca Advanced Contactor 3P 3NO AC-3 9 A 24-60 V AC/DC Coil Contactor

Brand: Schneider Electric
Reference No: LC1D09BNE
Catalog No: LC1D09BNE
Series: TeSys Deca Advanced
Tariff Code (HS): 853650
Rated Current: 9 A
Power: 4 kW
Rated Voltage: 24-60 V AC/DC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$58.06

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LC1D09BNE is a 3-pole TeSys Deca Advanced contactor rated 9 A AC-3 at up to 440 V, switching motors up to 4 kW at 400 V. It uses a wide-band 24-60 V AC/DC electronic coil for direct PLC output connection and includes 1 built-in normally-open and 1 mirror-certified normally-closed auxiliary contact, with screw clamp terminals in a compact 45 mm housing.

Technical Specifications

Reference LC1D09BNE
Brand Schneider Electric
Range TeSys Deca Advanced
Device Short Name LC1D
Poles 3P
Pole Contact Composition 3 NO
Utilisation Category AC-1, AC-3, AC-3e
[Ie] Rated Current (AC-3, <=440 V) 9 A
[Ie] Rated Current (AC-1, <=440 V) 25 A
Motor Power (400 V AC-3) 4 kW
Motor Power (500 V AC-3) 5.5 kW
[Uc] Control Circuit Voltage 24-60 V AC/DC
Coil Technology Wide-band electronic
Auxiliary Contact Composition 1 NO + 1 NC (mirror)
[Ue] Rated Operational Voltage <= 690 V AC
Rated Breaking Capacity 250 A at 440 V
Maximum Operating Rate 3600 cyc/h
Mounting Support Rail, plate
IP Degree of Protection IP20
Ambient Air Temperature (Operation) -40°C to 60°C
Height x Width x Depth 77 x 45 x 86 mm
Net Weight 0.368 kg
GTIN 3606480987632

Certifications & Standards

  • CCC
  • CSA
  • EAC
  • UL
  • DNV-GL
  • EN/IEC 60947-4-1

Selection Notes

The LC1D09BNE's 24-60 V AC/DC electronic coil accepts a direct PLC output without an interposing relay, and the built-in mirror NC contact lets this coil size be used in safety-related circuits. Up to a 480 V 35 A circuit breaker it reaches 85 kA SCCR, or up to 100 kA with a 600 V 25 A Class J/CC fuse. For a 12 A motor rating in the same coil family, use the LC1D12BNE; for a wider 100-250 V coil instead of 24-60 V, use the LC1D12KUE.

Technical Details

Short Description
3P TeSys Deca Advanced contactor, AC-3 9 A at up to 440 V, 4 kW at 400 V, 24-60 V AC/DC electronic coil.
Rated Current (Ampere)
9 A
Rated Voltage (VAC)
24-60 V AC/DC
Mounting Type
Rail, plate
Protection Type
IP20
Catalog No
LC1D09BNE
Number of Poles
3P
Power (kW)
4 kW
Delivery Date (Days)
30 days
Model Number
LC1D
Tariff Code
853650
