- Part number
- LA9RM201
Description
About the LA9RM201
About the LA9RM201

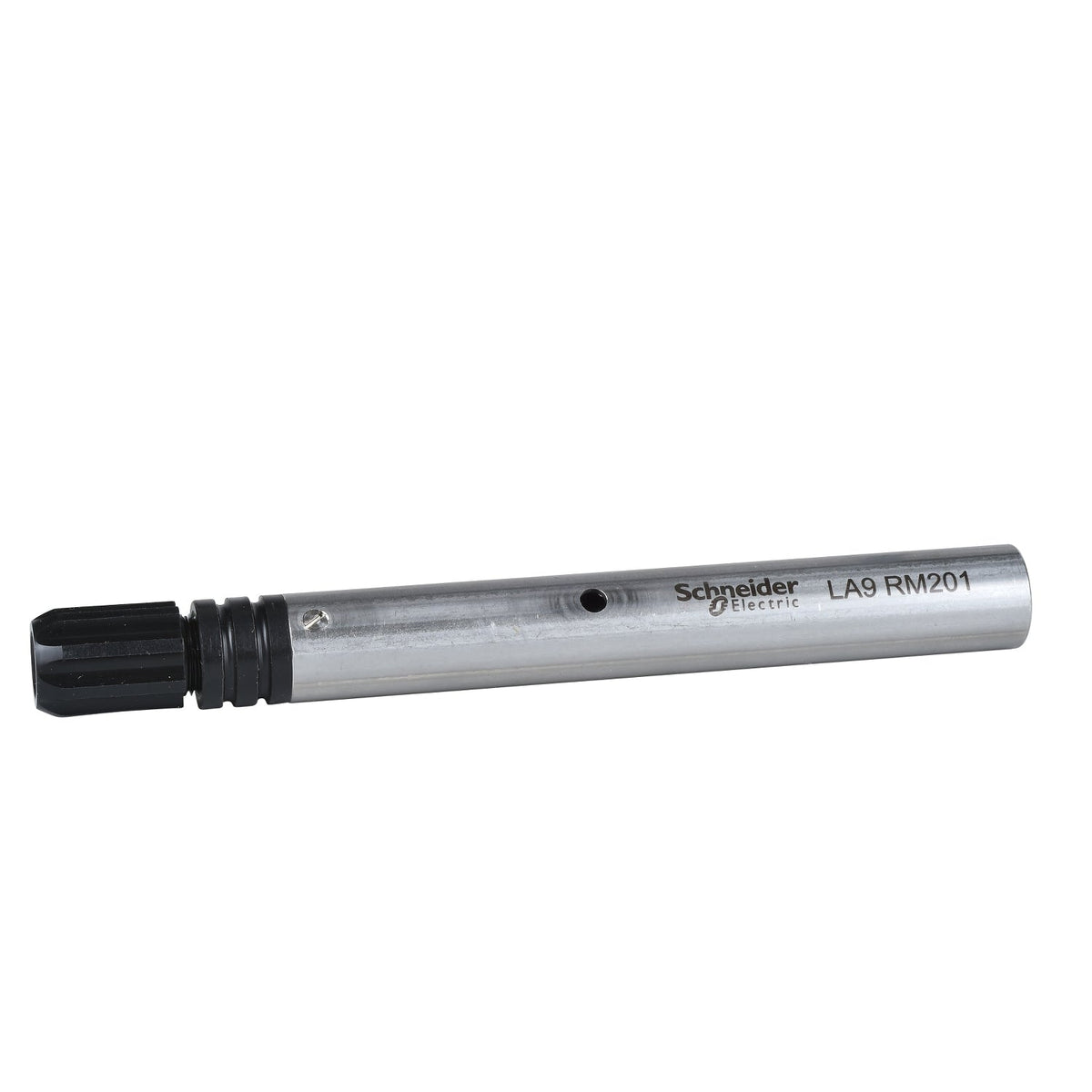

The Schneider Electric LA9RM201 is a Harmony liquid-level control probe accessory for the RM84, RM4L and RM35LM control relays, detecting liquid presence by cable suspension rather than a fixed float switch. It is rated for continuous operation up to 100 degrees Celsius and measures 16 mm in diameter by 150 mm in length. The probe ships in packs of 40 units for multi-point level installations.
Selection Notes
Use the LA9RM201 as a low-point or high-point sensing probe wired into an RM84, RM4L or RM35LM liquid-level control relay; the relay — not the probe — handles the switching logic, so the probe itself only needs to tolerate the tank or vessel's temperature and immersion depth. The 150 mm cable length and suspended mounting method suit open tanks and sumps better than threaded or flush probes; where the medium exceeds 100 °C, a different sensing method is required.
Specification
Full specification
Main 6
| Range of Product | Harmony Control Relays |
|---|---|
| Product or Component Type | Level control probe |
| Accessory / separate part designation | Probe for liquid level control |
| Accessory / separate part destination | Liquid level control relay |
| Accessory / separate part category | Relay accessories |
| Product Compatibility | RM84, RM4L, RM35LM |
Complementary 4
| Diameter | 0.6 in (16 mm) |
|---|---|
| Length | 5.9 in (150 mm) |
| Type of Installation | Cable suspension |
| Net Weight | 0.2 lb(US) (0.1 kg) |
Environment 1
| Maximum ambient air temperature for operation | 212 °F (100 °C) |
|---|
Show all 24 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LA9RM201 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110190755 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for LA9RM201
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the LA9RM201
What is the HS code of LA9RM201 for customs?
The tariff (HS) code on file for LA9RM201 is 853890.
What is the EAN of LA9RM201?
The EAN (GTIN) of LA9RM201 is 3389110190755.
Where does LA9RM201 ship from, and how fast?
LA9RM201 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
