Schneider Electric K30D002UP Harmony K K30 2-Pole 32A Front Mount Cam Switch
Harmony K K30 2-pole cam changeover switch, 32 A Ith, 690 V Ui, IP40, front mount
Description
About the K30D002UP
About the K30D002UP

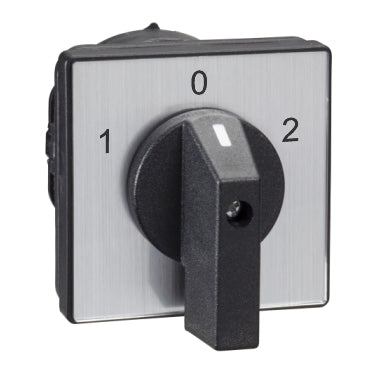

The Schneider Electric K30D002UP is a Harmony K series front-mounted cam changeover switch with 2 poles, rated for 32 A conventional free-air thermal current (Ith) and 690 V insulation voltage (Ui). The 64 x 64 mm plastic front plate carries a black handle marked 1-0-2, switching 60 degrees between two positions with an off position in the center, IP40 rated.
Certifications & Standards
- cULus
- IEC 60947-3
Selection Notes
The 2-pole configuration suits circuits where only two conductors need to switch between sources, such as single-phase changeover or switching one motor winding pair between two supplies. With a 32 A Ith rating and 690 V Ui, it covers general-purpose motor and lighting changeover duty inside enclosed panels; the 3-pole version exists for full three-phase changeover where all three line conductors must switch together. Pick the 2P body when a leg or neutral stays common between the two switched sources.
Applications
Typical uses include changeover between two single-phase supplies, switching a control circuit between manual and automatic operating mode, or alternating a two-wire load between main and standby feed. The captive screw clamp terminals accept 2 x 4 mm2 flexible or 2 x 6 mm2 solid conductors, so panel wiring does not need ferrules. The 4-hole front mounting and 64 x 64 mm cutout match the standard Harmony K panel footprint.
Specification
Full specification
Main 16
| Range of Product | Harmony K |
|---|---|
| Product or Component Type | Complete cam switch |
| Component name | K30 |
| [Ith] conventional free air thermal current | 32 A |
| Mounting Location | Front |
| Fixing Mode | 4 holes |
| Cam switch head type | With front plate 64 x 64 mm |
| Type of operator | Black handle |
| Rotary handle padlocking | Without |
| Presentation of legend | With metallic, 1 - 0 - 2 black |
| Cam switch function | Changeover switch |
| Return | Without |
| Off position | With Off position |
| Poles description | 2P |
| Switching positions | Right: 0° - 60°, Left: 0° - 300° |
| IP degree of protection | IP40 conforming to IEC 60529 |
Complementary 15
| Switching angle | 60 ° |
|---|---|
| [Ui] rated insulation voltage | 690 V 3)IEC 60947-1 |
| Short-circuit current | 5000 A |
| Short-circuit protection | 50 A cartridge fuse gG |
| [Uimp] rated impulse withstand voltage | 6 kV EN 947-1, 6 kV IEC 947-1 |
| Contact operation | Slow-break |
| positive opening | With |
| Electrical connection | Captive screw clamp terminals flexible 2 x 4 mm², Captive screw clamp terminals solid 2 x 6 mm² |
| Tightening torque | 10.6 lbf.in (1.2 N.m) |
| Switching capacity in mA | 11000 mA DC 120 V 2 inductive 50 ms), 11000 mA DC 180 V 3 inductive 50 ms), 11000 mA DC 60 V 1 inductive 50 ms), 1200 mA DC 220 V 1 resistive 1 ms), 1200 mA DC 440 V 2 resistive 1 ms), 1200 mA DC 660 V 3 resistive 1 ms), 16000 mA DC 140 V 3 inductive 50 ms), 16000 mA DC 48 V 1 inductive 50 ms), 16000 mA DC 95 V 2 inductive 50 ms), 23000 mA DC 120 V 2 resistive 1 ms), 23000 mA DC 180 V 3 resistive 1 ms), 23000 mA DC 60 V 1 resistive 1 ms), 25000 mA DC 30 V 1 inductive 50 ms), 25000 mA DC 60 V 2 inductive 50 ms), 25000 mA DC 90 V 3 inductive 50 ms), 3200 mA DC 110 V 1 inductive 50 ms), 3200 mA DC 220 V 2 inductive 50 ms), 3200 mA DC 330 V 3 inductive 50 ms), 32000 mA DC 140 V 3 resistive 1 ms), 32000 mA DC 24 V 1 inductive 50 ms), 32000 mA DC 24 V 1 resistive 1 ms), 32000 mA DC 48 V 1 resistive 1 ms), 32000 mA DC 48 V 2 inductive 50 ms), 32000 mA DC 48 V 2 resistive 1 ms), 32000 mA DC 70 V 3 inductive 50 ms), 32000 mA DC 70 V 3 resistive 1 ms), 32000 mA DC 95 V 2 resistive 1 ms), 400 mA DC 440 V 1 resistive 1 ms), 400 mA DC 660 V 2 resistive 1 ms), 6500 mA DC 110 V 1 resistive 1 ms), 6500 mA DC 220 V 2 resistive 1 ms), 6500 mA DC 330 V 3 resistive 1 ms) |
| Mechanical durability | 300000 cycles |
| CAD overall width | 2.5 in (64 mm) |
| CAD overall height | 2.5 in (64 mm) |
| CAD overall depth | 3.7 in (93 mm) |
| Net Weight | 0.55 lb(US) (0.25 kg) |
Environment 6
| Standards | IEC 60947-3 |
|---|---|
| Product certifications | CULus 120 V 2 hp 1 phase, CULus 240 V 5 hp 1 phase, CULus 240 V 5 hp 3 phase, CULus 480 V 20 hp 3 phase |
| Protective treatment | TC |
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536, Class II conforming to NF C 20-030 |
Show all 61 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | K30D002UP |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110083330 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.528 in (11.500 cm) |
| Package 1 Width | 2.835 in (7.200 cm) |
| Package 1 Length | 2.835 in (7.200 cm) |
| Package weight(Lbs) | 8.289 oz (235.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 17.024 lb(US) (7.722 kg) |
| Shipping weight | 0.25 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
