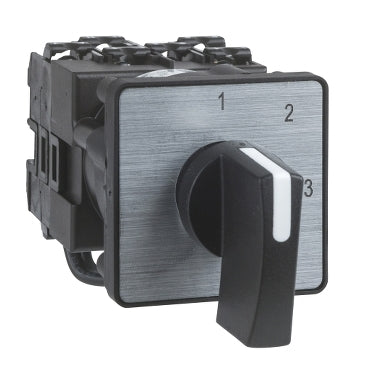

Schneider Electric K2H004ULH Harmony K K2 20A 4P 45° Cam Changeover Switch
Harmony K2 cam changeover switch, 4-pole, 20 A Ith, 45 degree switching angle, IP40, screw mounting.
Description
About the K2H004ULH
About the K2H004ULH
The Schneider Electric K2H004ULH is a Harmony K2 cam changeover switch with four poles, a 45-degree switching angle, and a 20 A conventional free air thermal current (Ith). Front-mounted with a 45 x 45 mm plate and screw-clamp terminals, it withstands a 10,000 A short-circuit current behind a 20 A gG fuse and carries an IP40 enclosure rating.
Certifications & Standards
- CSA
- UL
- IEC 60947-3
- IEC 60947-5-1
- CENELEC EN 50013
Selection Notes
The 4-pole changeover configuration switches all four conductors of a three-phase-plus-neutral circuit between two sources at up to 20 A Ith, where the 3-pole version would leave the neutral unswitched. It shares the K2 body, 45 x 45 mm front plate, and 20 A gG fuse back-up with the 2-pole and 3-pole changeover variants, differing only in depth, 107 mm, to fit the extra pole. Screw-clamp terminals accept flexible conductors up to 1.5 mm² or solid conductors up to 2.5 mm² on every pole.
Specification
Full specification
Main 16
| Range of product | Harmony K |
|---|---|
| Product or component type | Complete cam switch |
| Component name | K2 |
| [Ith] conventional free air thermal current | 20 A |
| Product mounting | Front mounting |
| fixing mode | Multifixing |
| Cam switch head type | With front plate 45 x 45 mm |
| Type of operator | Black handle, length = 35 mm |
| Rotary handle padlocking | Without |
| Presentation of legend | With metallic legend, 2 - 0 - 1 black marking |
| Cam switch function | Changeover switch |
| Return | Without |
| Off position | With Off position |
| Poles description | 4P |
| Switching positions | Left: 0° - 315°, Right: 0° - 45° |
| IP degree of protection | IP40 conforming to IEC 60529 |
Complementary 16
| Switching angle | 45 ° |
|---|---|
| [Ui] rated insulation voltage | 690 V (pollution degree 3) conforming to IEC 60947-1 |
| [Ithe] conventional enclosed thermal current | 16 A |
| Electrical durability | 200000 cycles AC-23, 200000 cycles AC-3, 600000 cycles AC-15, 600000 cycles AC-21 |
| Maximum operating rate | 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-3, 8.333 cyc/mn AC-15 |
| Short-circuit current | 10000 A |
| Short-circuit protection | 20 A cartridge fuse, type gG |
| [Uimp] rated impulse withstand voltage | 4 kV in isolating function, 6 kV conforming to IEC 947-1 |
| Contact operation | Slow-break |
| positive opening | With |
| Electrical connection | Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm², Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm² |
| Mechanical durability | 1000000 cycles |
| CAD overall width | 45 mm |
| CAD overall height | 45 mm |
| CAD overall depth | 107 mm |
| Net weight | 0.195 kg |
Environment 8
| Standards | IEC 60947-3 for power circuit, IEC 60947-5-1 for control circuit, CENELEC EN 50013 |
|---|---|
| Product certifications | CSA 240 V 3 hp 3 phases 2 pole(s), UL 240 V 0.33 hp 1 phase 2 pole(s), CSA 240 V 1 hp 1 phase, UL 240 V 1 hp 3 phases |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Shock resistance | 30 gn conforming to IEC 68-2-27 |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz) |
| Electrical shock protection class | Class II conforming to IEC 536, Class II |
Show all 57 specifications ↓ Show less ↑17 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | K2H004ULH |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 10
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.800 cm |
| Package 1 Width | 6.700 cm |
| Package 1 Length | 16.800 cm |
| Package 1 Weight | 210.000 g |
| Shipping weight | 0.195 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
