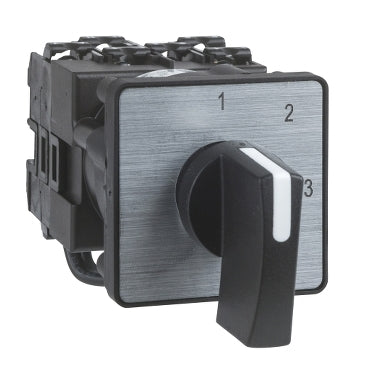

Schneider Electric K2D002ULH Harmony K K2 20A 2P 45° Cam Changeover Switch
Harmony K2 cam changeover switch, 2-pole, 20 A Ith, 45 degree switching angle, IP40, screw mounting.
Description
About the K2D002ULH
About the K2D002ULH
The Schneider Electric K2D002ULH is a Harmony K2 cam changeover switch with two poles, a 45-degree switching angle, and a 20 A conventional free air thermal current (Ith). Front-mounted with a 45 x 45 mm plate, screw-clamp terminals, and a metallic 2-0-1 legend, it carries a 10 kA short-circuit withstand and an IP40 enclosure rating.
Certifications & Standards
- CSA
- UL
- IEC 60947-3
- IEC 60947-5-1
- CENELEC EN 50013
Selection Notes
The 2-pole changeover configuration is sized for the heavier-duty K2 body, 20 A Ith versus the K1's 12 A, suited to switching single-phase loads between two sources at 400 V. Choose the 3-pole or 4-pole K2 changeover versions for three-phase circuits, or the smaller K1 body where the 12 A rating is sufficient. Upstream protection is a 20 A gG cartridge fuse against the 10 kA short-circuit rating. The 45 x 45 mm front plate and metallic 2-0-1 legend keep the panel cutout and marking identical across the whole K2 changeover family regardless of pole count.
Specification
Full specification
Main 16
| Range of product | Harmony K |
|---|---|
| Product or component type | Complete cam switch |
| Component name | K2 |
| [Ith] conventional free air thermal current | 20 A |
| Product mounting | Front mounting |
| fixing mode | Multifixing |
| Cam switch head type | With front plate 45 x 45 mm |
| Type of operator | Black handle, length = 35 mm |
| Rotary handle padlocking | Without |
| Presentation of legend | With metallic legend, 2 - 0 - 1 black marking |
| Cam switch function | Changeover switch |
| Return | Without |
| Off position | With Off position |
| Poles description | 2P |
| Switching positions | Left: 0° - 315°, Right: 0° - 45° |
| IP degree of protection | IP40 conforming to IEC 60529 |
Complementary 16
| Switching angle | 45 ° |
|---|---|
| [Ui] rated insulation voltage | 690 V (pollution degree 3) conforming to IEC 60947-1 |
| [Ithe] conventional enclosed thermal current | 16 A |
| Electrical durability | 200000 cycles AC-23, 200000 cycles AC-3, 600000 cycles AC-15, 600000 cycles AC-21 |
| Maximum operating rate | 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-3, 8.333 cyc/mn AC-15 |
| Short-circuit current | 10000 A |
| Short-circuit protection | 20 A cartridge fuse, type gG |
| [Uimp] rated impulse withstand voltage | 4 kV in isolating function, 6 kV conforming to IEC 947-1 |
| Contact operation | Slow-break |
| positive opening | With |
| Electrical connection | Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm², Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm² |
| Mechanical durability | 1000000 cycles |
| CAD overall width | 45 mm |
| CAD overall height | 45 mm |
| CAD overall depth | 87 mm |
| Net weight | 0.14 kg |
Environment 8
| Standards | IEC 60947-3 for power circuit, IEC 60947-5-1 for control circuit, CENELEC EN 50013 |
|---|---|
| Product certifications | CSA 240 V 3 hp 3 phases 2 pole(s), UL 240 V 0.33 hp 1 phase 2 pole(s), CSA 240 V 1 hp 1 phase, UL 240 V 1 hp 3 phases |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Shock resistance | 30 gn conforming to IEC 68-2-27 |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz) |
| Electrical shock protection class | Class II conforming to IEC 536, Class II |
Show all 69 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | K2D002ULH |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 11.000 cm |
| Package 1 Weight | 155.300 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.698 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 62.320 kg |
| Shipping weight | 0.14 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
