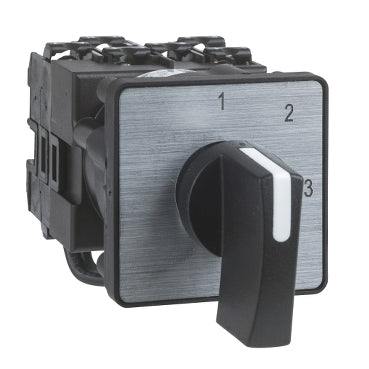

Schneider Electric K2C003ALH Harmony K K2 3-Pole 20A 45deg Cam Switch
Harmony K2 cam switch, 3 poles, 20 A, 45° angle, off position, multifixing panel mount.
Description
About the K2C003ALH
About the K2C003ALH
The Schneider Electric K2C003ALH is a Harmony K2 cam switch with three poles, a 45° switching angle, and a 20 A conventional free-air thermal current (Ith). It switches all three poles together between an off position and one on position (0-1 marking), and mounts to a front panel by multifixing for three-phase disconnect or selector duty.
Certifications & Standards
- CSA
- UL
- CSA
- UL
- CCC
- IEC 60947-3
- IEC 60947-5-1
- CENELEC EN 50013
- GB/T 14048.5
- GB/T 14048.3
Selection Notes
At 20 A Ith on the K2 frame, the K2C003ALH handles a higher pilot or small three-phase load than the 12 A K1-frame switches in the same Harmony K range, while keeping the same 45° on/off function and visible off position. CCC and GB/T 14048.3/14048.5 certification on this variant supports installations needing Chinese national approval. Choose the K1 frame instead when panel space is tighter and the circuit stays under 12 A.
Applications
Used as a manual three-phase disconnect or selector switch on control-panel doors in machine-building and panel-shop assemblies where the load exceeds the K1 frame's current rating.
Specification
Full specification
Main 16
| Range of product | Harmony K |
|---|---|
| Product or component type | Complete cam switch |
| Component name | K2 |
| [Ith] conventional free air thermal current | 20 A |
| Mounting location | Front |
| fixing mode | Multifixing |
| Cam switch head type | With front plate 45 x 45 mm |
| Type of operator | Black handle, length = 35 mm |
| Rotary handle padlocking | Without |
| Presentation of legend | With metallic legend, 0 - 1 black marking |
| Cam switch function | Switch |
| Return | Without |
| Off position | With Off position |
| Poles description | 3P |
| Switching positions | Right: 0° - 45° |
| IP degree of protection | IP40 conforming to IEC 60529 |
Complementary 16
| Switching angle | 45 ° |
|---|---|
| [Ui] rated insulation voltage | 690 V (pollution degree 3) conforming to IEC 60947-1 |
| [Ithe] conventional enclosed thermal current | 16 A |
| Electrical durability | 200000 cycles AC-23, 200000 cycles AC-3, 600000 cycles AC-15, 600000 cycles AC-21 |
| Maximum operating rate | 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-3, 8.333 cyc/mn AC-15 |
| Short-circuit current | 10000 A |
| Short-circuit protection | 20 A cartridge fuse, type gG |
| [Uimp] rated impulse withstand voltage | 4 kV in isolating function, 6 kV conforming to IEC 947-1 |
| Contact operation | Slow-break |
| positive opening | With |
| Electrical connection | Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm², Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm² |
| Mechanical durability | 1000000 cycles |
| CAD overall width | 45 mm |
| CAD overall height | 45 mm |
| CAD overall depth | 87 mm |
| Net weight | 0.133 kg |
Environment 8
| Standards | IEC 60947-3 for power circuit, IEC 60947-5-1 for control circuit, CENELEC EN 50013, GB/T 14048.5 for control circuit, GB/T 14048.3 for power circuit |
|---|---|
| Product certifications | CSA 240 V 3 hp 3 phases 2 -pole(s), UL 240 V 0.33 hp 1 phase 2 -pole(s), CSA 240 V 1 hp 1 phase, UL 240 V 1 hp 3 phases, CCC |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Shock resistance | 30 gn conforming to IEC 68-2-27 |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz) |
| Overvoltage category | Class II conforming to IEC 536, Class II conforming to NF C 20-030 |
