Part number
K1D024MLH
$30.61 On request Dispatch — · From TürkiyeGet a Quote

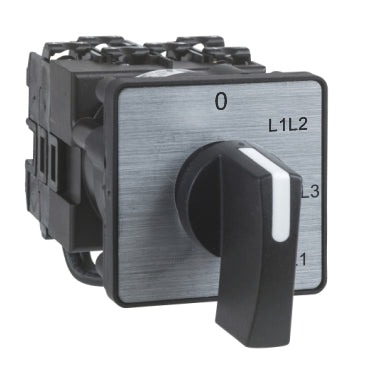

Schneider Electric K1D024MLH Harmony K K1 3-Phase 12A Cam Voltmeter Switch

Harmony K1 cam voltmeter switch, 3-phase L-L selection, 12 A Ith, 4 positions, IP40.

Poles
1P
Description

About the K1D024MLH

The Schneider Electric K1D024MLH is a Harmony K1 cam voltmeter switch that selects between three line-to-line voltage pairs (L1L2, L2L3, L3L1) plus an off position, with a 12 A conventional free-air thermal current (Ith) and 690 V rated insulation voltage. Its black handle carries a 0-L1L2-L2L3-L3L1 metallic legend across four 45° switching positions for connecting a single voltmeter to any of the three phase pairs.

Certifications & Standards

  • CSA
  • CSA
  • UL
  • UL
  • IEC 60947-3
  • IEC 60947-5-1
  • CENELEC EN 50013

Selection Notes

The K1D024MLH is a voltmeter selector, not a load switch — it lets one panel-mounted voltmeter read any of the three line-to-line pairs by rotating through four positions instead of wiring three separate meters. Its off position isolates the voltmeter circuit when the panel is not being monitored. Size it for a voltmeter's instrumentation-level burden, not for motor or power switching, since no AC-3 operational current rating applies to this voltmeter-switch function.

Applications

Used on switchboard and panel-builder projects that need a single voltmeter to display all three line-to-line voltages via a front-panel selector instead of a dedicated meter per phase pair.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 16

Range of product Harmony K
Product or component type Complete cam switch
Component name K1
[Ith] conventional free air thermal current 12 A
Mounting location Front
fixing mode Multifixing
Cam switch head type With front plate 45 x 45 mm
Type of operator Black handle, length = 35 mm
Rotary handle padlocking Without
Presentation of legend With metallic legend, 0 - L1L2 - L2L3 - L3L1 black marking
Cam switch function Voltmeter switch
Return Without
Type of measurement Between 3 phases
Off position With Off position
Switching positions Right: 0° - 45° - 90° - 135°
IP degree of protection IP40 conforming to IEC 60529

Complementary 18

Switching angle 45 °
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current 10 A
Rated operational power in W 10500 W AC-21, 500...660 V 3 phases conforming to IEC 947-3, 1100 W AC-3, 230 V 3 phases conforming to IEC 947-3, 1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 400 V 1 phase conforming to IEC 947-3, 1500 W AC-3, 400 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 500 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 690 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3, 4800 W AC-21, 230 V 3 phases conforming to IEC 947-3, 600 W AC-3, 230 V 1 phase conforming to IEC 947-3, 8300 W AC-21, 400 V 3 phases conforming to IEC 947-3
[Ie] rated operational current AC 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3, 2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3, 2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3, 3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3, 3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3, 4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3, 4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3, 5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3, 1 A at 500 V AC-15 conforming to IEC 947-5-1, 2 A at 400 V AC-15 conforming to IEC 947-5-1, 3 A at 230 V AC-15 conforming to IEC 947-5-1
Electrical durability 1000000 cycles AC-15, 1000000 cycles AC-21, 500000 cycles AC-23, 500000 cycles AC-3
Maximum operating rate 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-3, 8.333 cyc/mn AC-15
Short-circuit current 10000 A
Short-circuit protection 16 A cartridge fuse, type gG
[Uimp] rated impulse withstand voltage 4 kV in isolating function, 6 kV conforming to IEC 947-1
Contact operation Slow-break
positive opening With
Electrical connection Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm², Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Mechanical durability 1000000 cycles
CAD overall width 45 mm
CAD overall height 45 mm
CAD overall depth 87 mm
Net weight 0.14 kg

Environment 8

Standards IEC 60947-3 for power circuit, IEC 60947-5-1 for control circuit, CENELEC EN 50013
Product certifications CSA 240 V 1 hp 1 phase, CSA 240 V 3 hp 3 phases 2 -pole(s), UL 240 V 1 hp 3 phases, UL 240 V 0.33 hp 1 phase 2 -pole(s)
Protective treatment TC
Ambient air temperature for operation -25…55 °C
Ambient air temperature for storage -40…70 °C
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
Overvoltage category Class II conforming to IEC 536, Class II conforming to NF C 20-030
Show all 71 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number K1D024MLH
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 6.500 cm
Package 1 Length 11.000 cm
Package 1 Weight 154.800 g
Unit Type of Package 2 S01
Number of Units in Package 2 10
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 1.689 kg
Unit Type of Package 3 P06
Number of Units in Package 3 320
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 62.059 kg
Shipping weight 0.14 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for K1D024MLH

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60947-3 for power circuit
  • IEC 60947-5-1 for control circuit
  • CENELEC EN 50013
Quick answers

Questions about the K1D024MLH

What is the HS code of K1D024MLH for customs?

The tariff (HS) code on file for K1D024MLH is 853650.

Where does K1D024MLH ship from, and how fast?

K1D024MLH ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
