Part number
K1C003NLH
$25.93 On request Dispatch — · From TürkiyeGet a Quote

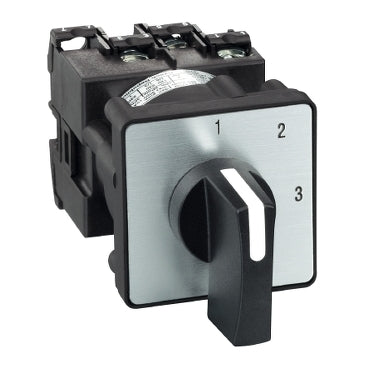

Schneider Electric K1C003NLH Harmony K K1 1-Pole 12A 3-Step Cam Stepping Switch

Harmony K1 cam stepping switch, 1 pole, 12 A, 3 steps, no off position, IP40.

Poles
2P
Description

About the K1C003NLH

The Schneider Electric K1C003NLH is a Harmony K1 cam stepping switch with a single pole, a 45° switching angle, and a 12 A conventional free-air thermal current (Ith). It has three steps (1-2-3 marking) with no off position, so the circuit stays live at every switch position, and it mounts to a front panel by multifixing for continuous three-position selection.

Certifications & Standards

  • CSA
  • UL
  • CSA
  • UL
  • IEC 60947-3
  • IEC 60947-5-1
  • CENELEC EN 50013

Selection Notes

Unlike the off-position stepping switch in the K1 range, the K1C003NLH has no off position — the circuit is always connected to step 1, 2, or 3, so use it where a de-energized state is never required, such as selecting between three fixed setpoints that must always have one active. Its single pole and 12 A Ith rating suit pilot or signal circuits rather than direct motor power. The 0°-45°-90° switching range gives three distinct 45° detents for the three positions.

Applications

Used as a three-position selector switch on control-panel doors for choosing between three fixed setpoints, ranges, or signal sources where the circuit must always remain connected to one of the positions.

Specification

Full specification

72 values · Last verified 30 Oct 2026

Main 16

Range of product Harmony K
Product or component type Complete cam switch
Component name K1
[Ith] conventional free air thermal current 12 A
Mounting location Front
fixing mode Multifixing
Cam switch head type With front plate 45 x 45 mm
Type of operator Black handle, length = 35 mm
Rotary handle padlocking Without
Presentation of legend With metallic legend, 1 - 2 - 3 black marking
Cam switch function Stepping switch
Return Without
Off position Without Off position
Poles description 1P
Switching positions Right: 0° - 45° - 90°
IP degree of protection IP40 conforming to IEC 60529

Complementary 19

Number of steps 3
Switching angle 45 °
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current 10 A
Rated operational power in W 10500 W AC-21, 500...660 V 3 phases conforming to IEC 947-3, 1100 W AC-3, 230 V 3 phases conforming to IEC 947-3, 1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 400 V 1 phase conforming to IEC 947-3, 1500 W AC-3, 400 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 500 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 690 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3, 4800 W AC-21, 230 V 3 phases conforming to IEC 947-3, 600 W AC-3, 230 V 1 phase conforming to IEC 947-3, 8300 W AC-21, 400 V 3 phases conforming to IEC 947-3
[Ie] rated operational current AC 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3, 2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3, 2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3, 3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3, 3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3, 4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3, 4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3, 5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3, 1 A at 500 V AC-15 conforming to IEC 947-5-1, 2 A at 400 V AC-15 conforming to IEC 947-5-1, 3 A at 230 V AC-15 conforming to IEC 947-5-1
Electrical durability 1000000 cycles AC-15, 1000000 cycles AC-21, 500000 cycles AC-23, 500000 cycles AC-3
Maximum operating rate 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-3, 8.333 cyc/mn AC-15
Short-circuit current 10000 A
Short-circuit protection 16 A cartridge fuse, type gG
[Uimp] rated impulse withstand voltage 4 kV in isolating function, 6 kV conforming to IEC 947-1
Contact operation Slow-break
positive opening With
Electrical connection Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm², Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Mechanical durability 1000000 cycles
CAD overall width 45 mm
CAD overall height 45 mm
CAD overall depth 87 mm
Net weight 0.135 kg

Environment 8

Standards IEC 60947-3 for power circuit, IEC 60947-5-1 for control circuit, CENELEC EN 50013
Product certifications CSA 240 V 3 hp 3 phases 2 -pole(s), UL 240 V 0.33 hp 1 phase 2 -pole(s), CSA 240 V 1 hp 1 phase, UL 240 V 1 hp 3 phases
Protective treatment TC
Ambient air temperature for operation -25…55 °C
Ambient air temperature for storage -40…70 °C
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
Overvoltage category Class II conforming to IEC 536, Class II conforming to NF C 20-030
Show all 72 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number K1C003NLH
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 6.500 cm
Package 1 Length 11.000 cm
Package 1 Weight 148.000 g
Unit Type of Package 2 S01
Number of Units in Package 2 10
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 1.611 kg
Unit Type of Package 3 P06
Number of Units in Package 3 320
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 59.552 kg
Shipping weight 0.135 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
