- Part number
- GVAU385
- Model no
- GVAU
Description
About the GVAU
About the GVAU

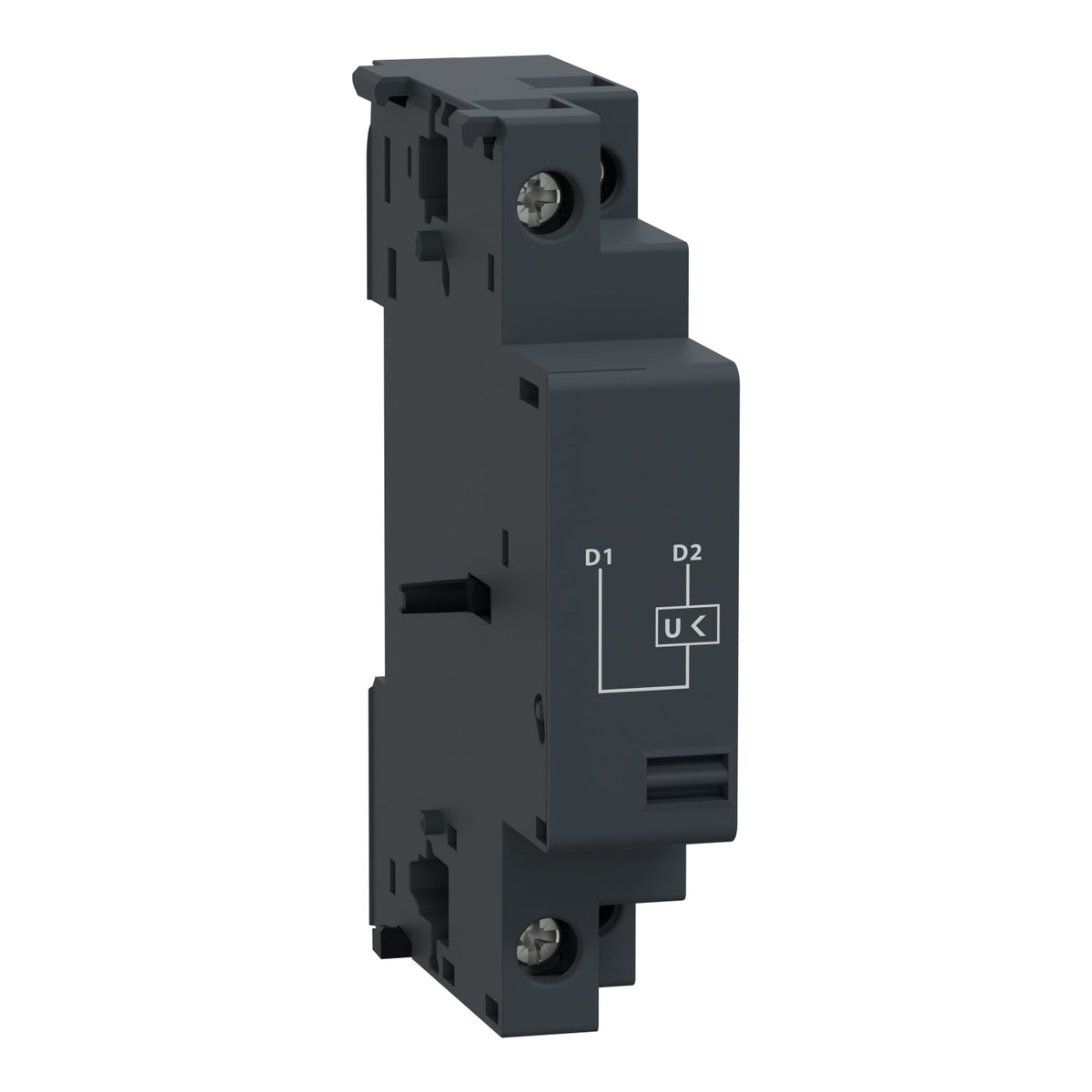

The Schneider Electric GVAU385 is a TeSys Deca MN undervoltage release for GV2 and GV3 motor circuit breakers, built for a 380-400 V AC 50 Hz / 440 V AC 60 Hz control circuit. It trips the breaker once control voltage falls below 0.35 Uc, opens somewhere in the 0.35-0.7 Uc band, and only lets the breaker close again once voltage is back in the 0.85-1.1 Uc range. It mounts on the right side with screw-clamp terminals.
Selection Notes
Select the GVAU385 to enforce no-volt protection on a 380-400 V AC control circuit: the breaker drops out automatically on supply loss and cannot be reclosed until voltage recovers above 0.85 Un, which is the key difference from the GVAS385 shunt release that only opens on a deliberate trip command. For a 220-240 V AC control circuit, the GVAU225 is the matching sibling.
Specification
Full specification
Main 4
| Range | TeSys, TeSys Deca |
|---|---|
| Product or Component Type | Undervoltage release |
| Device short name | GVAU |
| [Uc] control circuit voltage | 380...400 V AC 50 Hz, 440 V AC 60 Hz |
Complementary 19
| Range compatibility | TeSys GV2ME, TeSys GV2LE, TeSys GV2L, TeSys GV2P, TeSys GV3L, TeSys GV3P, TeSys Deca |
|---|---|
| Control circuit voltage limits | 0.85...1.1 Un |
| [Ui] rated insulation voltage | 690 V AC IEC 60947-1, 600 V AC UL 60947-4-1, 600 V AC CSA C22.2 No 60947-4-1 |
| Threshold tripping voltage | 0.7...0.35 Un |
| Inrush power in VA | 12 VA AC |
| Inrush power in W | 8 W |
| Hold-in Power Consumption in VA | 3.5 VA AC |
| Hold-in power consumption in W | 1.1 W |
| Operating time | 10...15 ms IEC 60947-1 |
| On-load factor | 100 % |
| Connections - terminals | screw clamp terminals 1 0.002…0.004 in² (1…2.5 mm²)solid, screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)solid, screw clamp terminals 1 0.001…0.004 in² (0.75…2.5 mm²)flexible without cable end, screw clamp terminals 2 0.001…0.004 in² (0.75…2.5 mm²)flexible without cable end, screw clamp terminals 1 0.001…0.002 in² (0.75…1.5 mm²)flexible with cable end, screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²)flexible with cable end |
| Tightening torque | < 1.4 N.m screw clamp terminals |
| Mechanical durability | 10000 cycles with GV3P and GV3L, 30000 cycles with GV2ME and GV2P |
| Quantity per Set | Set of 10 |
| Height | 3.5 in (89 mm) |
| Width | 0.7 in (18 mm) |
| Depth | 2.6 in (66 mm) |
| Net Weight | 0.231 lb(US) (0.105 kg) |
| color | Dark grey |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 37 specifications ↓ Show less ↑13 more values in Identification, Logistics.
Identification 8
| Part number | GVAU385 |
|---|---|
| Type designation | GVAU |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110346022 |
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.105 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for GVAU385
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the GVAU
Which supply voltage is GVAU rated for?
The rated operational voltage of GVAU is 380–400 V AC.
What is the HS code of GVAU for customs?
The tariff (HS) code on file for GVAU is 853890.
What is the EAN of GVAU?
The EAN (GTIN) of GVAU is 3389110346022.
Where does GVAU ship from, and how fast?
GVAU ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
