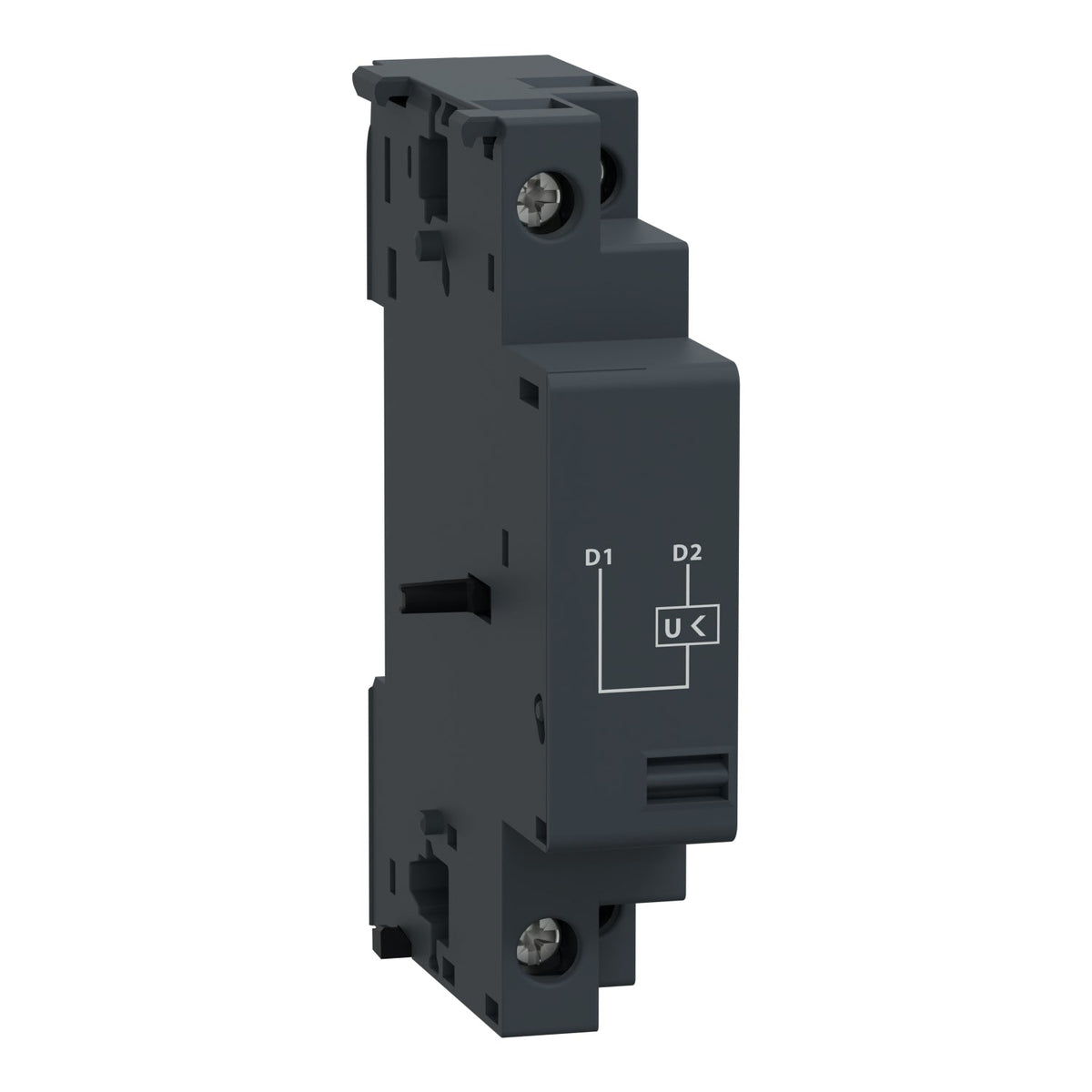

Schneider Electric GVAU225 TeSys Deca Undervoltage Release MN 220-240 V AC Automation Component

Name: Schneider Electric GVAU225 TeSys Deca Undervoltage Release MN 220-240 V AC Automation Component
Brand: Schneider Electric
SKU: GVAU225
Price: 23.93 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: GVAU225

Catalog No: GVAU225

Tariff Code (HS): 853890

Rated Voltage: 220-240 V

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$23.93

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric GVAU225 is a TeSys Deca MN undervoltage release for GV2 and GV3 motor circuit breakers, built for a 220-240 V AC 50 Hz control circuit. It trips the breaker once control voltage falls below 0.35 Uc, opens somewhere in the 0.35-0.7 Uc band, and only lets the breaker close again once voltage is back in the 0.85-1.1 Uc range. It mounts on the right side with screw-clamp terminals.

Technical Specifications

Reference	GVAU225
Brand	Schneider Electric
Range	TeSys Deca
Device short name	GVAU
Product or component type	Undervoltage release (MN)
Range compatibility	TeSys GV2ME, GV2LE, GV2L, GV2P, GV3L, GV3P
[Uc] control circuit voltage	220-240 V AC 50 Hz
Control circuit voltage limits (closing)	0.85-1.1 Un
[Ui] rated insulation voltage	690 V AC (IEC 60947-1) \| 600 V AC (UL/CSA 60947-4-1)
Threshold tripping voltage	0.35-0.7 Un
Inrush power	12 VA / 8 W
Hold-in power consumption	3.5 VA / 1.1 W
Operating time	10-15 ms (IEC 60947-1)
On-load factor	100%
Connections - terminals	Screw clamp, 0.75-2.5 mm²
Tightening torque	< 1.4 N.m, screw-clamp terminals
Dimensions (H x W x D)	89 x 18 x 66 mm
Net weight	0.105 kg

Selection Notes

Select the GVAU225 to enforce no-volt protection on a 220-240 V AC control circuit: the breaker drops out automatically on supply loss and cannot be reclosed until voltage recovers above 0.85 Un, which is the key difference from the GVAS225 shunt release that only opens on a deliberate trip command. For a 380-400 V AC control circuit, the GVAU385 is the matching sibling.

Technical Details

Short Description

TeSys Deca MN undervoltage release for GV2/GV3 breakers, 220-240 V AC 50 Hz, right side mount.

Rated Voltage (VAC)

220-240 V

Mounting Type

Right side

Catalog No

GVAU225

Delivery Date (Days)

30 days

Model Number

GVAU

Tariff Code

853890
