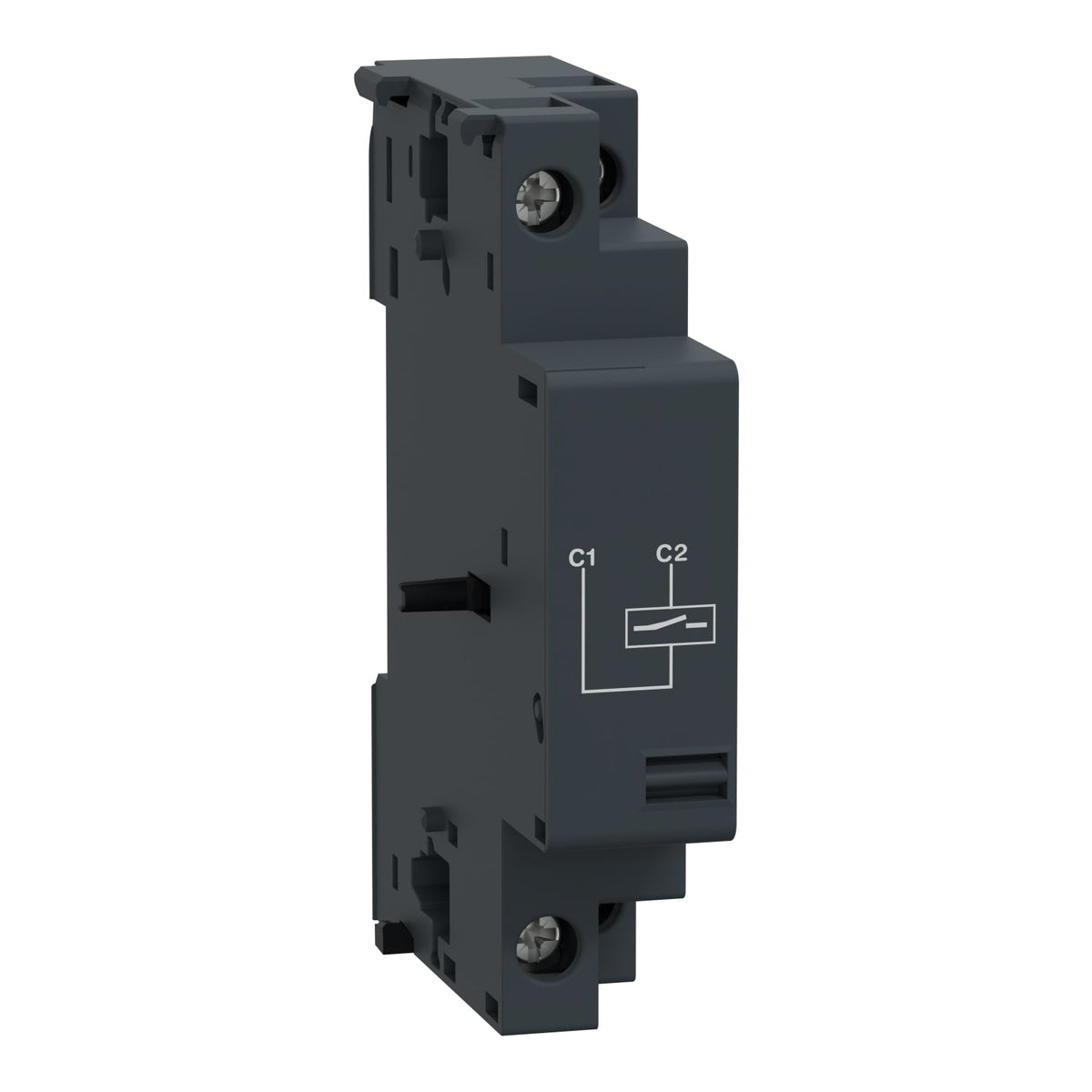

Schneider Electric GVAS385 TeSys Deca Shunt Trip Release MX 380-400 V AC Automation Component

Name: Schneider Electric GVAS385 TeSys Deca Shunt Trip Release MX 380-400 V AC Automation Component
Brand: Schneider Electric
SKU: GVAS385
Price: 27.08 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: GVAS385

Catalog No: GVAS385

Tariff Code (HS): 853890

Rated Voltage: 380-400 V

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$27.08

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric GVAS385 is a TeSys Deca MX shunt trip release for GV2 and GV3 motor circuit breakers, built for a 380-400 V AC 50 Hz / 440 V AC 60 Hz control circuit. It opens the breaker when control voltage is applied within 0.7-1.1 Uc for an impulse longer than 20 ms, or on a maintained signal, and mounts on the right side with screw-clamp terminals.

Technical Specifications

Reference	GVAS385
Brand	Schneider Electric
Range	TeSys Deca
Device short name	GVAS
Product or component type	Shunt trip release (MX)
Range compatibility	TeSys GV2ME, GV2LE, GV2L, GV2P, GV3L, GV3P
[Uc] control circuit voltage	380-400 V AC 50 Hz \| 440 V AC 60 Hz
Control circuit voltage limits	0.7-1.1 Un
[Ui] rated insulation voltage	690 V AC (IEC 60947-1) \| 600 V AC (UL/CSA 60947-4-1)
Threshold tripping voltage	0.2-0.75 Un
Inrush power	14 VA / 10.5 W
Hold-in power consumption	5 VA / 1.6 W
Operating time	10-15 ms (IEC 60947-1)
On-load factor	100%
Connections - terminals	Screw clamp, 0.75-2.5 mm²
Tightening torque	< 1.4 N.m, screw-clamp terminals
Dimensions (H x W x D)	89 x 18 x 66 mm
Net weight	0.105 kg

Selection Notes

Select the GVAS385 when the remote-trip control circuit runs on 380-400 V AC (or 440 V AC at 60 Hz); a 20 ms minimum impulse (or a maintained signal) within 0.7-1.1 Uc guarantees a reliable opening command, and it mounts on the right side of a GV2/GV3 breaker, leaving the left side free for auxiliary contact blocks. For a 220-240 V AC control circuit, the GVAS225 is the matching sibling.

Technical Details

Short Description

TeSys Deca MX shunt trip release for GV2/GV3 breakers, 380-400 V AC 50 Hz / 440 V 60 Hz, right side.

Rated Voltage (VAC)

380-400 V

Mounting Type

Right side

Catalog No

GVAS385

Delivery Date (Days)

30 days

Model Number

GVAS

Tariff Code

853890
