Schneider Electric GVAS225 TeSys Deca Shunt Trip Release MX 220-240 V AC Automation Component

% $-27.08

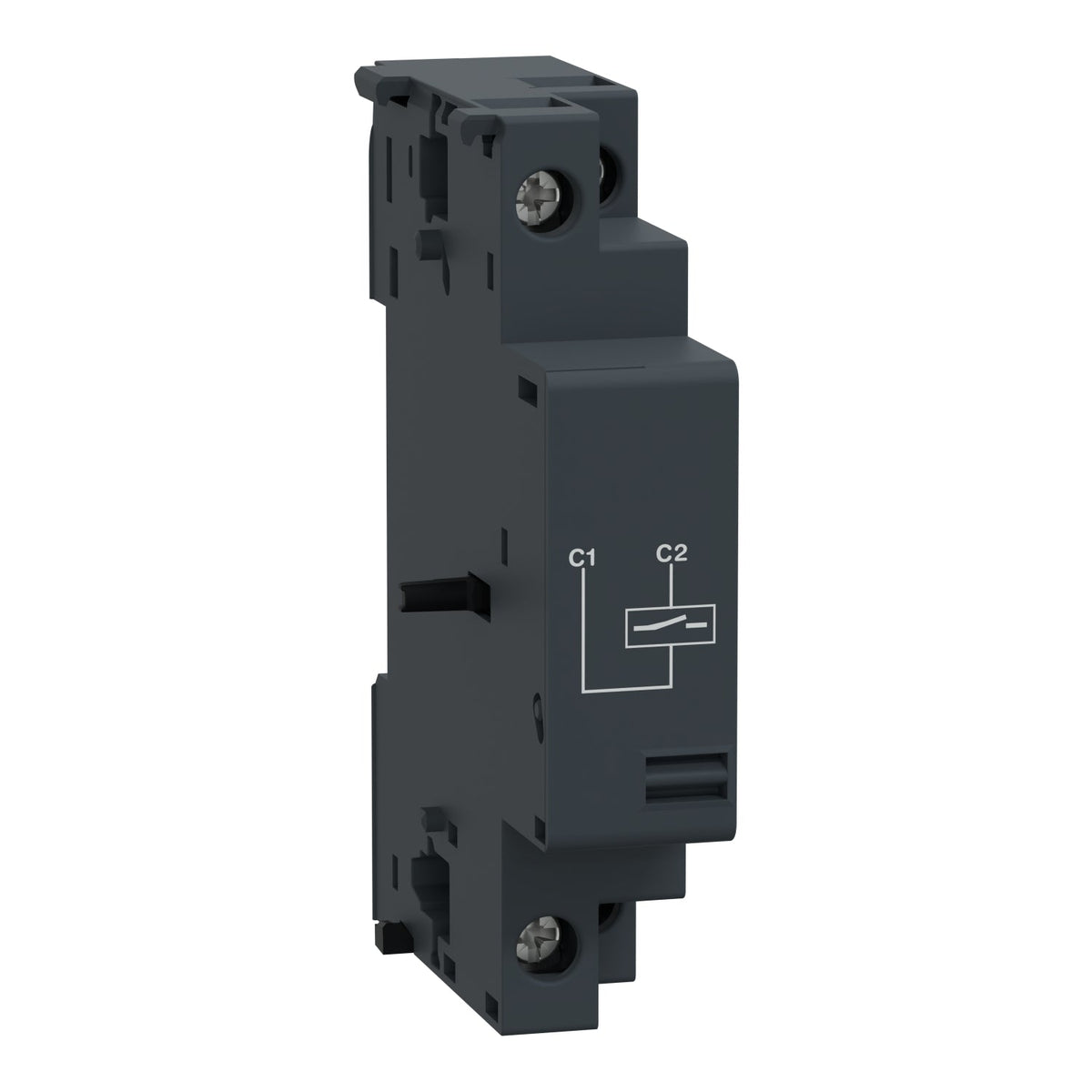

Schneider Electric GVAS225 TeSys Deca Shunt Trip Release MX - 220-240 V AC
Schneider Electric GVAS225 TeSys Deca Shunt Trip Release MX - 220-240 V AC

Schneider Electric GVAS225 TeSys Deca Shunt Trip Release MX 220-240 V AC Automation Component

Brand: Schneider Electric
Reference No: GVAS225
Catalog No: GVAS225
Tariff Code (HS): 853890
Rated Voltage: 220-240 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$27.08

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric GVAS225 is a TeSys Deca MX shunt trip release for GV2 and GV3 motor circuit breakers, built for a 220-240 V AC 50 Hz control circuit. It opens the breaker when control voltage is applied within 0.7-1.1 Uc for an impulse longer than 20 ms, or on a maintained signal, and mounts on the right side with screw-clamp terminals.

Technical Specifications

Reference GVAS225
Brand Schneider Electric
Range TeSys Deca
Device short name GVAS
Product or component type Shunt trip release (MX)
Range compatibility TeSys GV2ME, GV2LE, GV2L, GV2P, GV3L, GV3P
[Uc] control circuit voltage 220-240 V AC 50 Hz
Control circuit voltage limits 0.7-1.1 Un
[Ui] rated insulation voltage 690 V AC (IEC 60947-1) | 600 V AC (UL/CSA 60947-4-1)
Threshold tripping voltage 0.2-0.75 Un
Inrush power 14 VA / 10.5 W
Hold-in power consumption 5 VA / 1.6 W
Operating time 10-15 ms (IEC 60947-1)
On-load factor 100%
Connections - terminals Screw clamp, 0.75-2.5 mm²
Tightening torque < 1.4 N.m, screw-clamp terminals
Dimensions (H x W x D) 89 x 18 x 66 mm
Net weight 0.105 kg

Selection Notes

Select the GVAS225 when the remote-trip control circuit runs on 220-240 V AC; a 20 ms minimum impulse (or a maintained signal) within 0.7-1.1 Uc guarantees a reliable opening command, and it mounts on the right side of a GV2/GV3 breaker, leaving the left side free for auxiliary contact blocks. For a 380-400 V AC control circuit, the GVAS385 is the matching sibling.

Technical Details

Short Description
TeSys Deca MX shunt trip release for GV2/GV3 breakers, 220-240 V AC 50 Hz, right side mount.
Rated Voltage (VAC)
220-240 V
Mounting Type
Right side
Catalog No
GVAS225
Delivery Date (Days)
30 days
Model Number
GVAS
Tariff Code
853890
