- Part number
- GVAN20
- Model no
- GVAN
Description
About the GVAN
About the GVAN

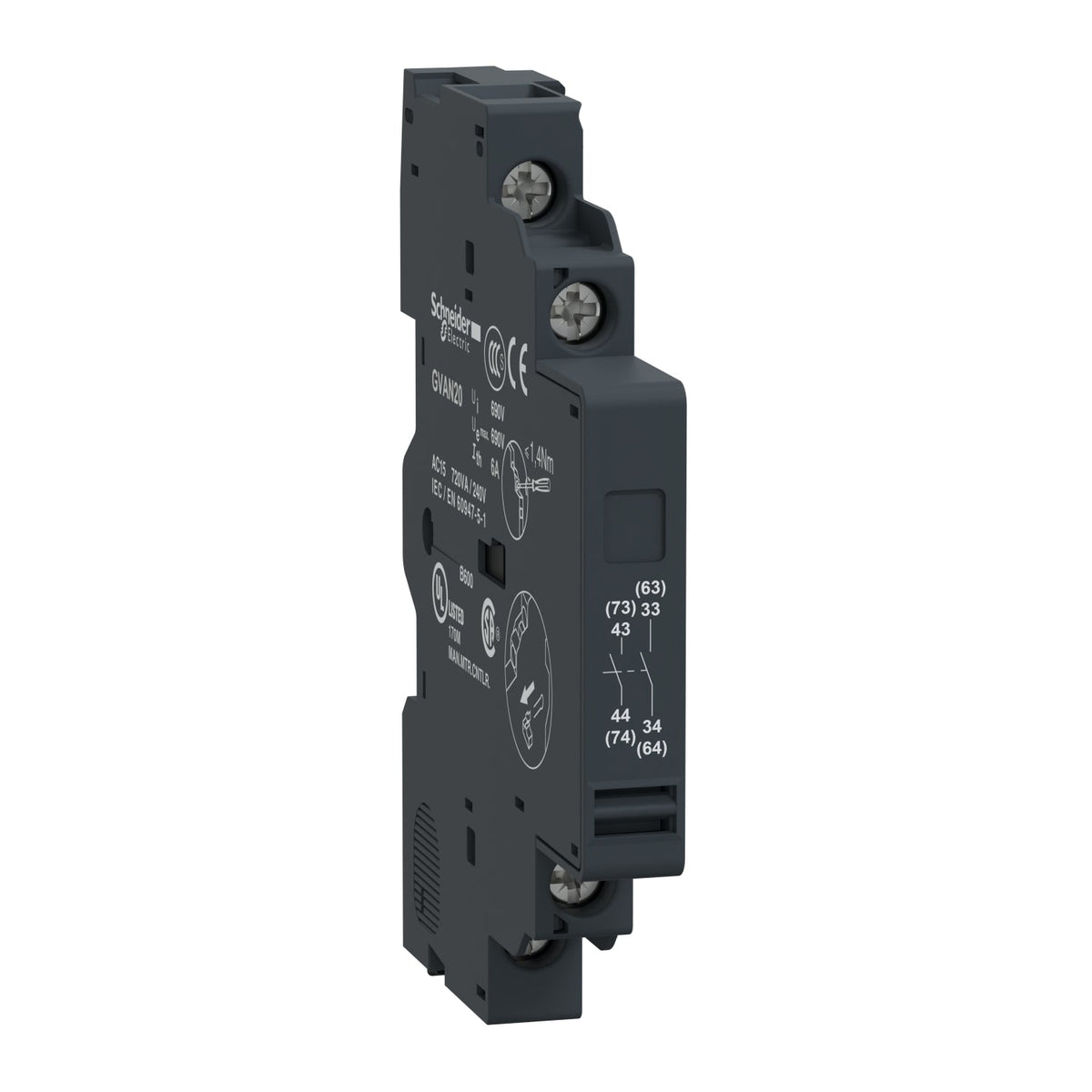

The Schneider Electric GVAN20 is a TeSys Deca auxiliary contact block for GV2 and GV3 motor circuit breakers, providing 2 instantaneous NO contacts rated to 6 A at 690 V AC. It mounts on the left side of the breaker, with up to two blocks stackable, and connects by screw-clamp terminals.
Certifications & Standards
- UKCA
Selection Notes
Choose the GVAN20 where the signalling circuit only needs two plain NO contacts at the full 6 A/690 V side-mount level, with up to two blocks stackable on the same side of a GV2 or GV3 breaker; where one contact should instead be NC, the GVAN11 is the matching sibling at the same rating.
Specification
Full specification
Main 6
| Range | TeSys, TeSys Deca |
|---|---|
| Device short name | GVAN |
| Product or Component Type | Auxiliary contact block |
| Product Compatibility | GV2ME, GV3P, GV2RT, GV2LE, GV2L, GV3L, GV2P |
| Mounting Location | Left side |
| Pole contact composition | 2 NO |
Complementary 14
| [Ui] rated insulation voltage | 600 V UL 508, 690 V IEC 60947-1, 600 V CSA C22.2 No 14 |
|---|---|
| [Ue] rated operational voltage | 48...690 V AC, 24...240 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... circuit breaker, GG fuse 10 A |
| Rated operational power in VA | 300 VA 48 V AC-15 100000 cycles, 414 VA 690 V AC-15 100000 cycles, 500 VA 110…127 V AC-15 100000 cycles, 500 VA 500 V AC-15 100000 cycles, 650 VA 440 V AC-15 100000 cycles, 720 VA 230…240 V AC-15 100000 cycles, 850 VA 380…415 V AC-15 100000 cycles |
| Rated operational power in W | 120 W 240 V DC-13 100000 cycles, 140 W 110 V DC-13 100000 cycles, 140 W 24 V DC-13 100000 cycles, 180 W 60 V DC-13 100000 cycles, 240 W 48 V DC-13 100000 cycles |
| Height | 3.5 in (89 mm) |
| Width | 0.4 in (9.3 mm) |
| Depth | 2.6 in (66 mm) |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| color | Dark grey |
Environment 2
| Environmental characteristic | Normal environment |
|---|---|
| Product Certifications | UKCA |
Show all 36 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | GVAN20 |
|---|---|
| Type designation | GVAN |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110343502 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for GVAN20
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UKCA
Quick answers
Questions about the GVAN
What is the HS code of GVAN for customs?
The tariff (HS) code on file for GVAN is 853890.
What is the EAN of GVAN?
The EAN (GTIN) of GVAN is 3389110343502.
Where does GVAN ship from, and how fast?
GVAN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
