Schneider Electric GVAM11 TeSys Deca Auxiliary Contact Block Short-Circuit Signal 1 C/O Automation Component

% $-14.47

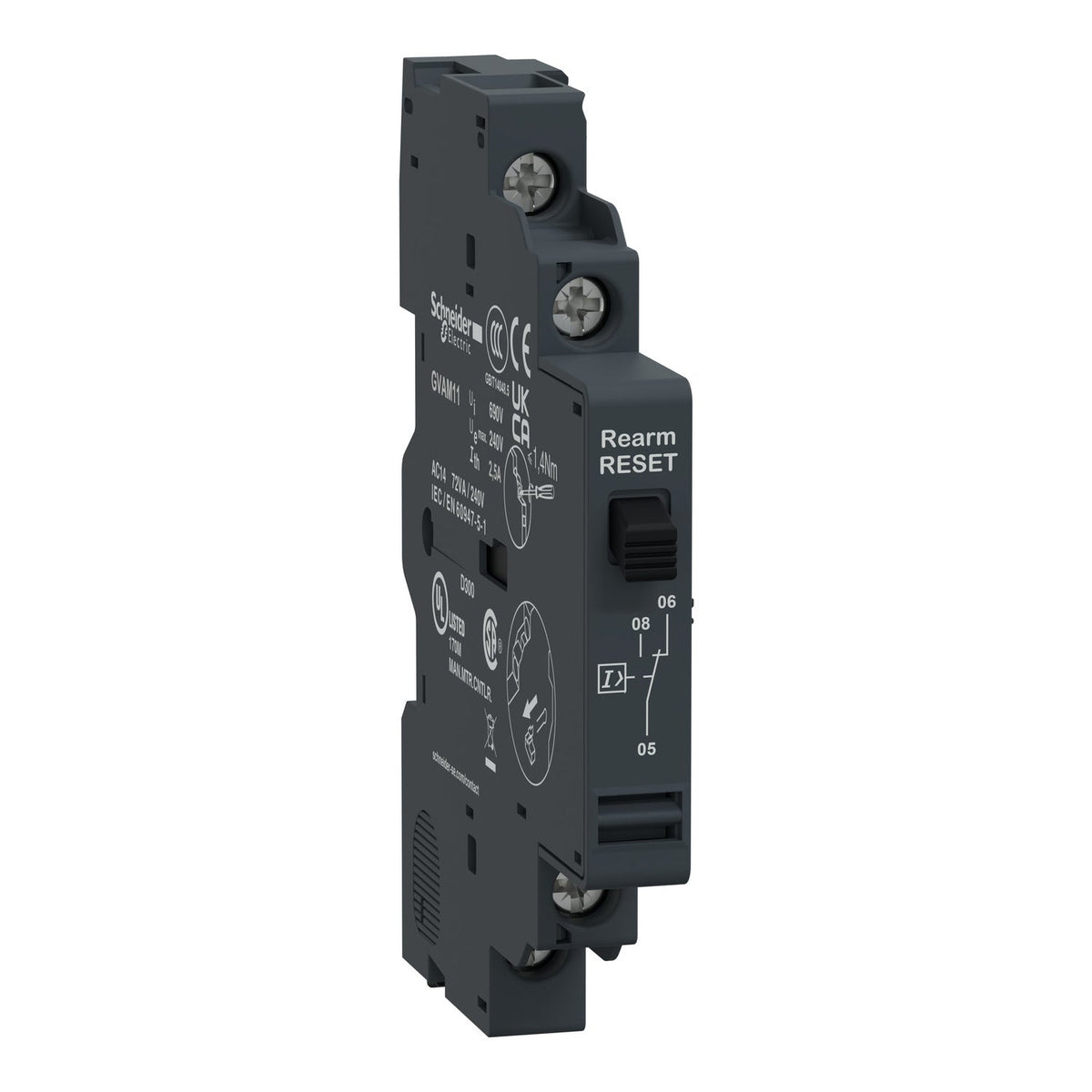

Schneider Electric GVAM11 TeSys Deca Auxiliary Contact Block - Short-Circuit Signal 1 C/O
Schneider Electric GVAM11 TeSys Deca Auxiliary Contact Block - Short-Circuit Signal 1 C/O

Schneider Electric GVAM11 TeSys Deca Auxiliary Contact Block Short-Circuit Signal 1 C/O Automation Component

Brand: Schneider Electric
Reference No: GVAM11
Catalog No: GVAM11
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$14.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric GVAM11 is a TeSys Deca auxiliary contact block for GV2 and GV3 motor circuit breakers, providing a single changeover (1 C/O) contact dedicated to short-circuit signalling. It mounts on the left side of the breaker and connects by screw-clamp terminals.

Technical Specifications

Reference GVAM11
Brand Schneider Electric
Range TeSys Deca
Device short name GVAM
Product or component type Auxiliary contact block
Product compatibility GV2P, GV2L, GV2ME, GV2LE, GV2RT, GV2LM, GV3P, GV3L
Mounting location Left side
Auxiliary contacts operation Short-circuit signal, 1 C/O
Pole contact composition 1 C/O
[Ui] rated insulation voltage 690 V (IEC 60947-1) | 300 V (UL 508) | 300 V (CSA C22.2 No 14)
[Ue] rated operational voltage 24-240 V AC | 24-60 V DC
[Ith] conventional free air thermal current 2.5 A (fault signalling)
Minimum switching current/voltage 5 mA / 17 V
Protection type GB2CB circuit breaker | GG fuse 10 A
Tightening torque 1.4 N.m, screw-clamp terminals
Dimensions (H x W x D) 89 x 9.3 x 66 mm
Net weight 0.055 kg

Certifications & Standards

  • CB Scheme
  • CE
  • UKCA
  • CCC
  • cULus
  • EAC
  • EN/IEC 60947-5-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • IEC/EN 60335-1
  • IEC/EN 60335-2-40

Selection Notes

Use the GVAM11 when the control circuit needs a dedicated changeover contact that signals short-circuit tripping specifically, distinct from a general fault or overload indication; it mounts in the same left-side position as the GVAD and GVAN blocks, so only one of these side-mount accessories fits per breaker at a time.

Technical Details

Short Description
TeSys Deca auxiliary contact block for GV2/GV3 breakers, 1 C/O short-circuit signal, left side.
Mounting Type
Left side
Catalog No
GVAM11
Delivery Date (Days)
30 days
Model Number
GVAM
Tariff Code
853890
