Schneider Electric GVAE11 TeSys Deca Auxiliary Contact Block 1NO+1NC Front Mount Automation Component

% $-6.43

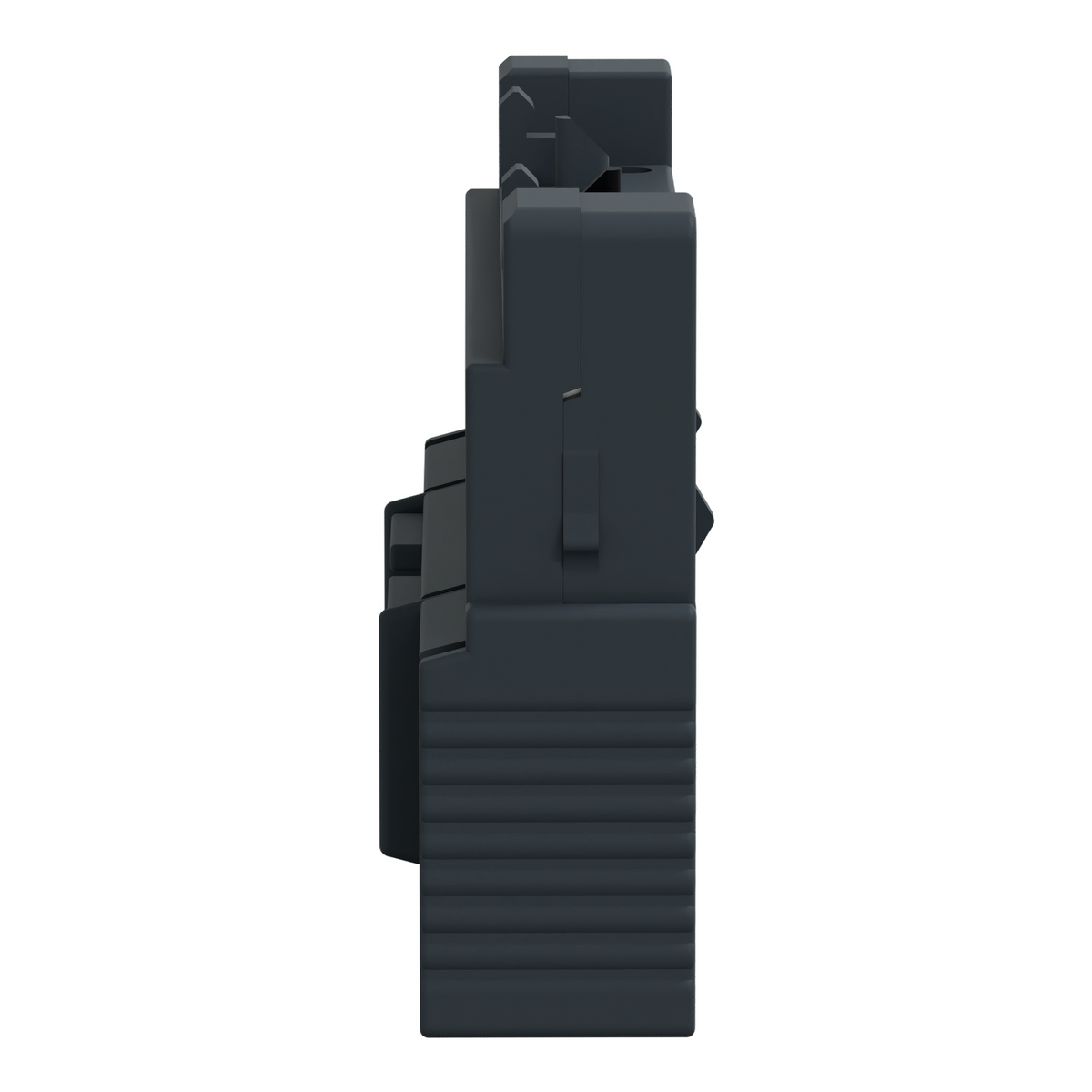

Schneider Electric GVAE11 TeSys Deca Auxiliary Contact Block - 1NO+1NC Front Mount
Schneider Electric GVAE11 TeSys Deca Auxiliary Contact Block - 1NO+1NC Front Mount

Schneider Electric GVAE11 TeSys Deca Auxiliary Contact Block 1NO+1NC Front Mount Automation Component

Brand: Schneider Electric
Reference No: GVAE11
Catalog No: GVAE11
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$6.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric GVAE11 is a TeSys Deca auxiliary contact block for GV2 and GV3 motor circuit breakers, providing 1 NO plus 1 NC instantaneous contact. It mounts on the front face of the breaker, connects by screw-clamp terminals, and is sold in sets of 10 units.

Technical Specifications

Reference GVAE11
Brand Schneider Electric
Range TeSys Deca
Device short name GVAE
Product or component type Auxiliary contact block
Product compatibility GV2P, GV2L, GV2ME, GV2LE, GV2RT, GV2LM, GV3P, GV3L
Mounting location Front side
Pole contact composition 1 NO + 1 NC
Quantity per set Set of 10
[Ui] rated insulation voltage 300 V (UL 508) | 300 V (CSA C22.2 No 14) | 250 V (IEC 60947-1)
[Ue] rated operational voltage 24-240 V AC | 24-60 V DC
[Ith] conventional free air thermal current 2.5 A
Minimum switching current/voltage 5 mA / 17 V
Protection type GG fuse 10 A | GB2CB06 circuit breaker (10 A max)
Tightening torque 1.7 N.m, screw-clamp terminals
Dimensions (H x W x D) 11 x 45 x 29 mm
Net weight 0.02 kg

Certifications & Standards

  • CB Scheme
  • CE
  • UKCA
  • CCC
  • cULus
  • EAC
  • EN/IEC 60947-5-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • IEC/EN 60335-1
  • IEC/EN 60335-2-40

Selection Notes

Specify the GVAE11 wherever a GV2 or GV3 breaker needs front-mounted status contacts combining an NO and an NC signal in a single block, sold in packs of 10 to match batch panel-build quantities; where only 2 NO contacts are needed, the GVAE20 is the matching front-mount sibling.

Technical Details

Short Description
TeSys Deca front-mount auxiliary contact block for GV2/GV3 breakers, 1 NO + 1 NC, set of 10.
Mounting Type
Front side
Catalog No
GVAE11
Delivery Date (Days)
30 days
Model Number
GVAE
Tariff Code
853890
