- Part number
- GVAD1010
- Model no
- GVAD
Description
About the GVAD
About the GVAD

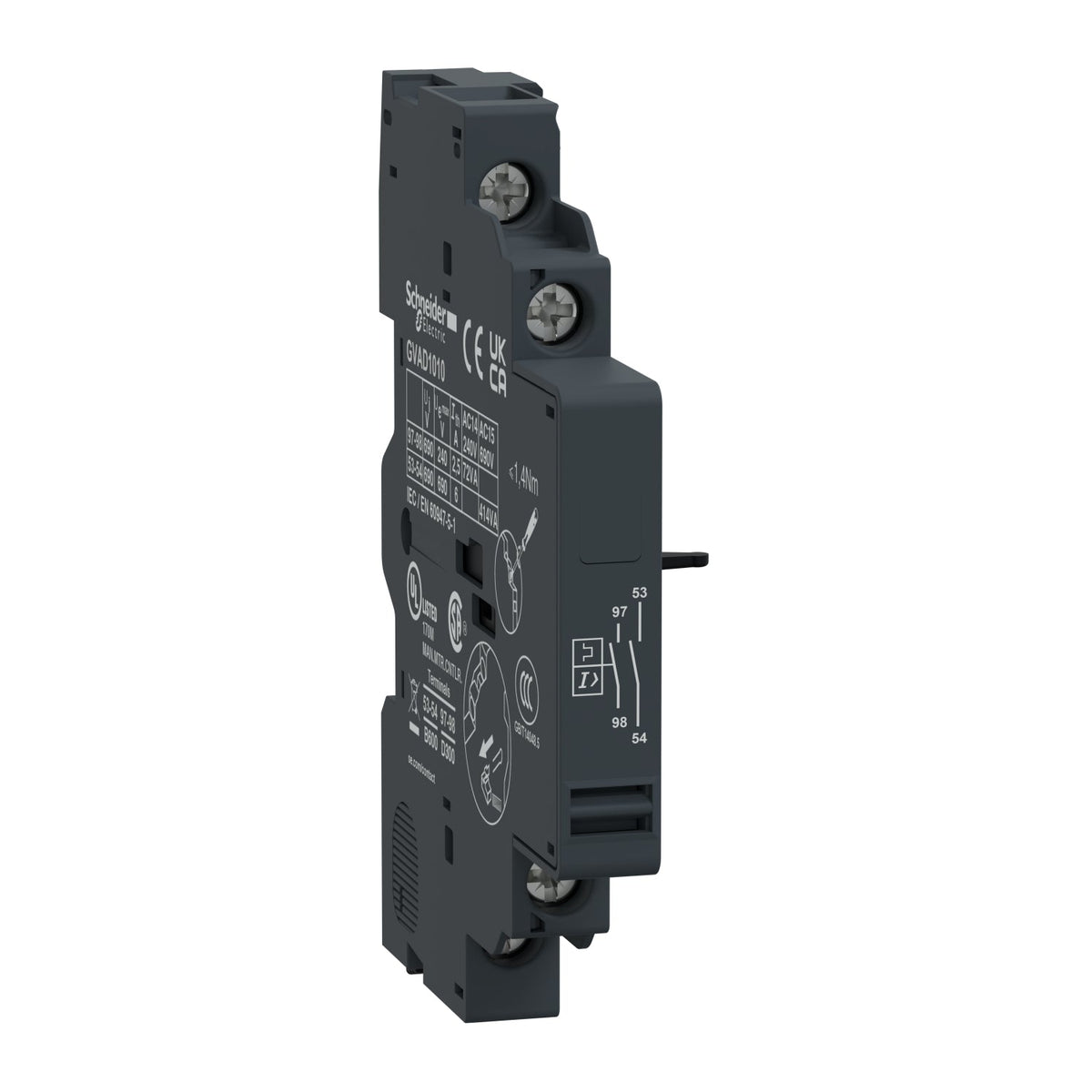

The Schneider Electric GVAD1010 is a TeSys Deca auxiliary contact block for GV2 and GV3 motor circuit breakers, combining 1 instantaneous NO contact with 1 NO fault-signalling contact. It mounts on the left side of the breaker and connects by screw-clamp terminals.
Certifications & Standards
- UKCA
Selection Notes
Pick the GVAD1010 when both auxiliary contacts on a GV2 or GV3 breaker should report as plain NO signals, including the fault-status output; where the fault contact needs to be NC instead, the GVAD0110 is the matching sibling with the same left-side mounting and switching ratings.
Specification
Full specification
Main 7
| Range | TeSys, TeSys Deca |
|---|---|
| Device short name | GVAD |
| Product or Component Type | Auxiliary contact block |
| Product Compatibility | GV2L, GV2P, GV2RT, GV3L, GV2LE, GV3P, GV2ME |
| Mounting Location | Left side |
| Auxiliary contacts operation | Fault signal 1 NO |
| Pole contact composition | 2 NO |
Complementary 14
| [Ui] rated insulation voltage | 690 V IEC 60947-1, 300 V UL 508, 300 V CSA C22.2 No 14 |
|---|---|
| [Ue] rated operational voltage | 48...690 V AC, 24...240 V DC |
| [Ith] conventional free air thermal current | 6 A, 2.5 A for fault signalling |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... circuit breaker, GG fuse 10 A |
| Rated operational power in VA | 300 VA 48 V AC-15 100000 cycles, 414 VA 690 V AC-15 100000 cycles, 500 VA 110…127 V AC-15 100000 cycles, 500 VA 500 V AC-15 100000 cycles, 650 VA 440 V AC-15 100000 cycles, 720 VA 230…240 V AC-15 100000 cycles, 850 VA 380…415 V AC-15 100000 cycles, 36 VA 24 V AC-14 1000 cycles, 48 VA 48 V AC-14 1000 cycles, 72 VA 110…127 V AC-14 1000 cycles |
| Rated operational power in W | 120 W 240 V DC-13 100000 cycles, 140 W 110 V DC-13 100000 cycles, 140 W 24 V DC-13 100000 cycles, 180 W 60 V DC-13 100000 cycles, 240 W 48 V DC-13 100000 cycles, 15 W 48 V DC-13 1000 cycles, 24 W 24 V DC-13 1000 cycles, 9 W 60 V DC-13 1000 cycles |
| Height | 3.5 in (89 mm) |
| Width | 0.4 in (9.3 mm) |
| Depth | 2.6 in (66 mm) |
| Net Weight | 0.121 lb(US) (0.055 kg) |
| color | Dark grey |
Environment 2
| Environmental characteristic | Normal environment |
|---|---|
| Product Certifications | UKCA |
Show all 37 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | GVAD1010 |
|---|---|
| Type designation | GVAD |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110343557 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.055 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
