Schneider Electric GV4APN02 TeSys GV4 Extended Rotary Handle Red IP54 Automation Component

% $-91.32

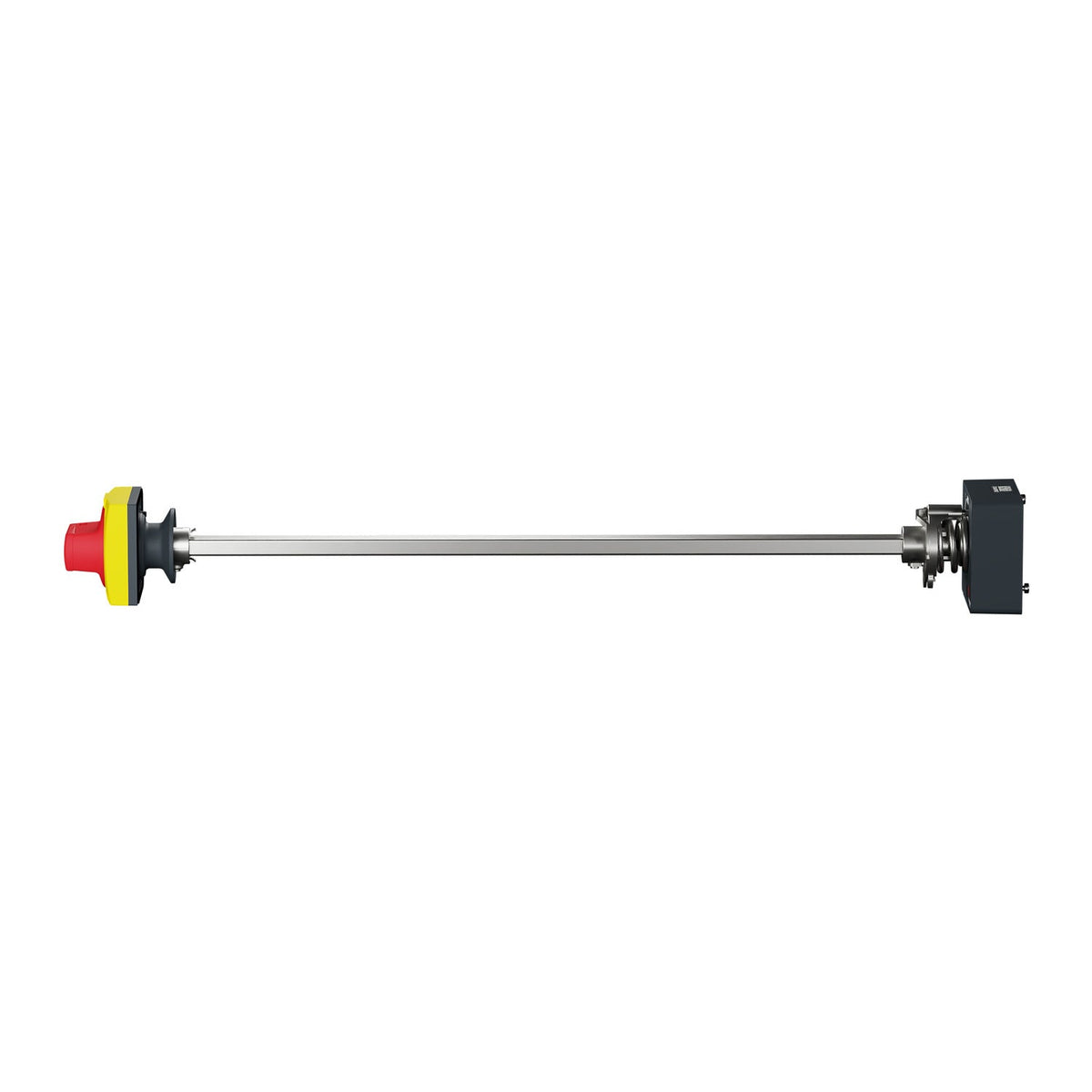

Schneider Electric GV4APN02 TeSys GV4 extended rotary handle - red IP54
Schneider Electric GV4APN02 TeSys GV4 extended rotary handle - red IP54

Schneider Electric GV4APN02 TeSys GV4 Extended Rotary Handle Red IP54 Automation Component

Brand: Schneider Electric
Reference No: GV4APN02
Catalog No: GV4APN02
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$91.32

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric GV4APN02 is an extended rotary handle kit for TeSys GV4 circuit breakers mounted inside an enclosure and operated from the door, built for emergency-switch duty. Its red handle on a yellow front plate shows OFF, ON and TRIP, includes a length-adjustable shaft for a 214-627 mm back-to-door distance, and keeps IP54 protection at the door cut-out.

Technical Specifications

Reference GV4APN02
GTIN 3606485444741
Brand Schneider Electric
Range TeSys, TeSys Deca
Product Type Rotary handle kit
Range Compatibility TeSys GV4, TeSys BV4, TeSys Deca
Rotary Handle Mounting Style Extended
Mounting Mode Fixed
Mounting Location Door of enclosure
Handle Colour Red
Handle Front Plate Colour Yellow
Padlocking 1 to 3 padlocks (4-8 mm shackle), in OFF position
Back/Door Distance 214-627 mm
IP Degree of Protection IP54
Units per Package 12

Selection Notes

Specify the GV4APN02 when the breaker sits inside an enclosure and needs a red/yellow emergency-switch handle operated from the door; the GV4APN01 variant covers ordinary black main-switch duty on the same extended mechanism, and the compact GV4ADN02 direct handle applies when the breaker is operated at its own face.

Technical Details

Short Description
Extended rotary handle kit, red/yellow, IP54, for door-mounted TeSys GV4 breakers
Mounting Type
Door of enclosure
Protection Type
IP54
Catalog No
GV4APN02
Delivery Date (Days)
30 days
Model Number
GV4APN02
Tariff Code
853890
