- Part number
- GS2AE22
- Model no
- GS2AE
Description
About the GS2AE
About the GS2AE

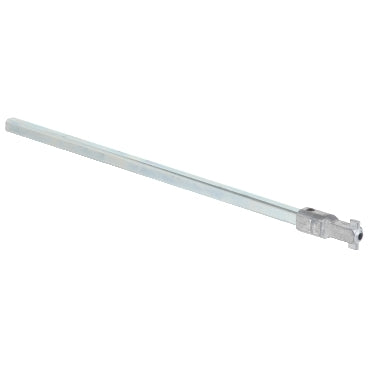

The Schneider Electric GS2AE22 is a TeSys GS shaft extension that lengthens the operating shaft of a GS2 or FuPact fuse switch-disconnector rated 50-400 A, letting the handle reach an external door-mounted position. It measures 200 mm long with a 10x10 mm cross-section and weighs 0.16 kg, matching the square drive shaft used across the GS2F through GS2Q and GSB/GSC/GSD switch bodies.
Selection Notes
Specify the 200 mm GS2AE22 when the switch body sits deeper in the enclosure than the standard handle reach allows; the accessory carries no current or voltage rating of its own, since the switch-disconnector it extends provides all electrical ratings.
Specification
Full specification
Main 6
| Range | TeSys |
|---|---|
| Device short name | GS2AE |
| Product or component type | Shaft extension |
| Accessory / separate part category | Control accessory |
| Range compatibility | TeSys TeSys GS GS2F, TeSys TeSys GS GS2G, TeSys TeSys GS GS2J, TeSys TeSys GS GS2K, TeSys TeSys GS GS2L, TeSys TeSys GS GS2M, TeSys TeSys GS GS2N, TeSys TeSys GS GS2P, TeSys TeSys GS GS2Q, FuPact FuPacT GS GSC50, FuPact FuPacT GS GSB63, FuPact FuPacT GS GSD63, FuPact FuPacT GS GSB100, FuPact FuPacT GS GSC125, FuPact FuPacT GS GSD125, FuPact FuPacT GS GSD160, FuPact FuPacT GS GSB200, FuPact FuPacT GS GSB250, FuPact FuPacT GS GSD250, FuPact FuPacT GS GSB400, FuPact FuPacT GS GSD400 |
| switch rated current | 50 A, 60 A, 63 A, 100 A, 125 A, 160 A, 200 A, 250 A, 315 A, 400 A |
Complementary 3
| Length | 200 mm |
|---|---|
| Shaft cross section | 10 x 10 mm |
| Net weight | 0.16 kg |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 33 specifications ↓ Show less ↑23 more values in Identification, Logistics.
Identification 7
| Part number | GS2AE22 |
|---|---|
| Type designation | GS2AE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 5.500 cm |
| Package 1 Length | 20.500 cm |
| Package 1 Weight | 161.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.300 kg |
| Shipping weight | 0.16 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for GS2AE22
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the GS2AE
What is the HS code of GS2AE for customs?
The tariff (HS) code on file for GS2AE is 853650.
Where does GS2AE ship from, and how fast?
GS2AE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
