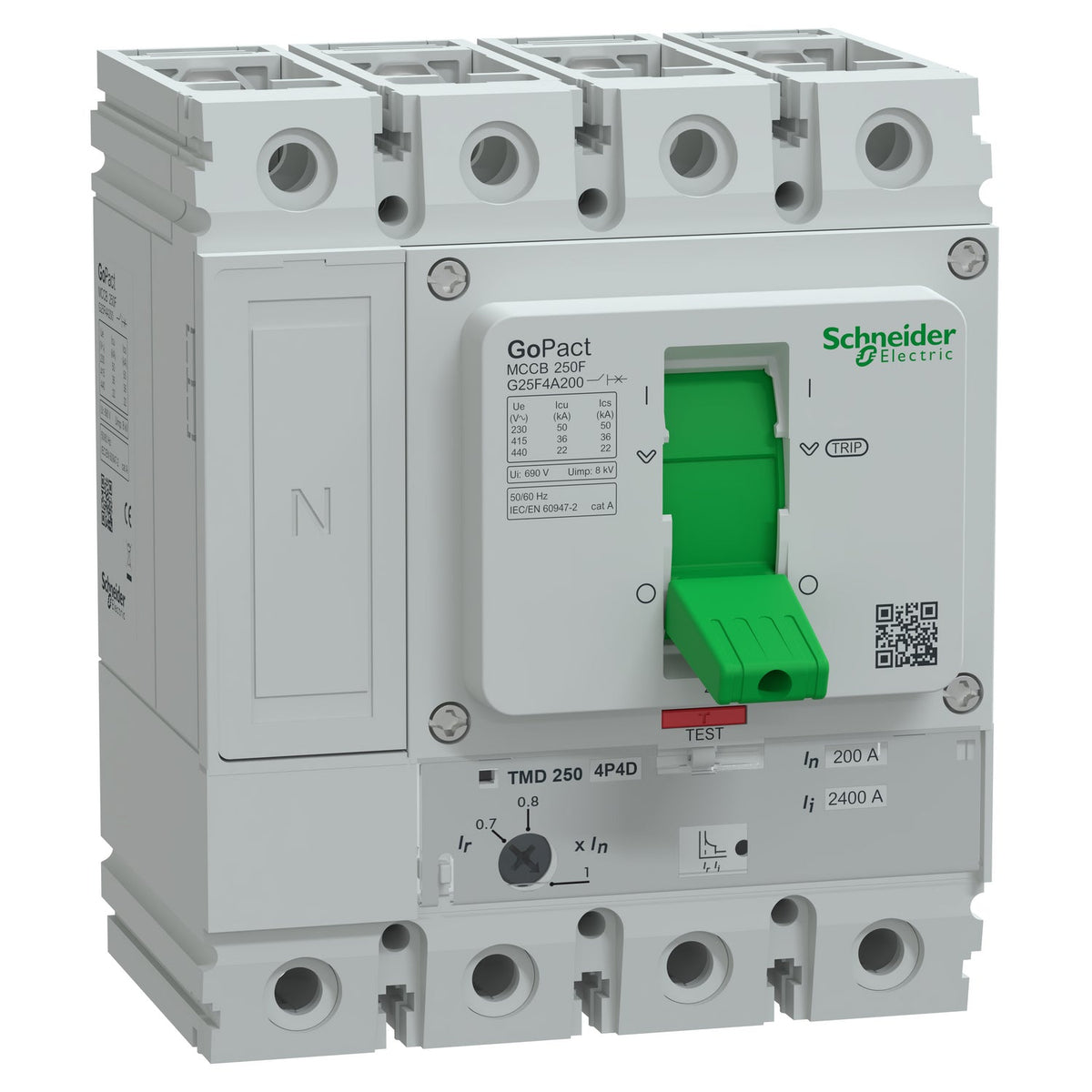

Schneider Electric G25F4A200 GoPact MCCB250F 4P 200 A 36 kA TM-D Fixed Moulded Case Circuit Breaker

The Schneider Electric G25F4A200 is a 4-pole GoPact MCCB250F moulded case circuit breaker rated 200 A (In) at 415 V AC (Ue), with 36 kA breaking capacity (Icu) at 380/415 V AC. It carries a thermal-magnetic TM-D trip unit (functions LI) with Ir thermal pick-up adjustable from 140 to 200 A and an 12 x In fixed magnetic short-circuit trip, and mounts fixed with front screw-terminal connections for distribution circuits in panels and switchboards.

Technical Specifications

Certifications & Standards

• EN/IEC 60947-1
• EN/IEC 60947-2
• EN/IEC 60947-2 Annex H

Selection Notes
