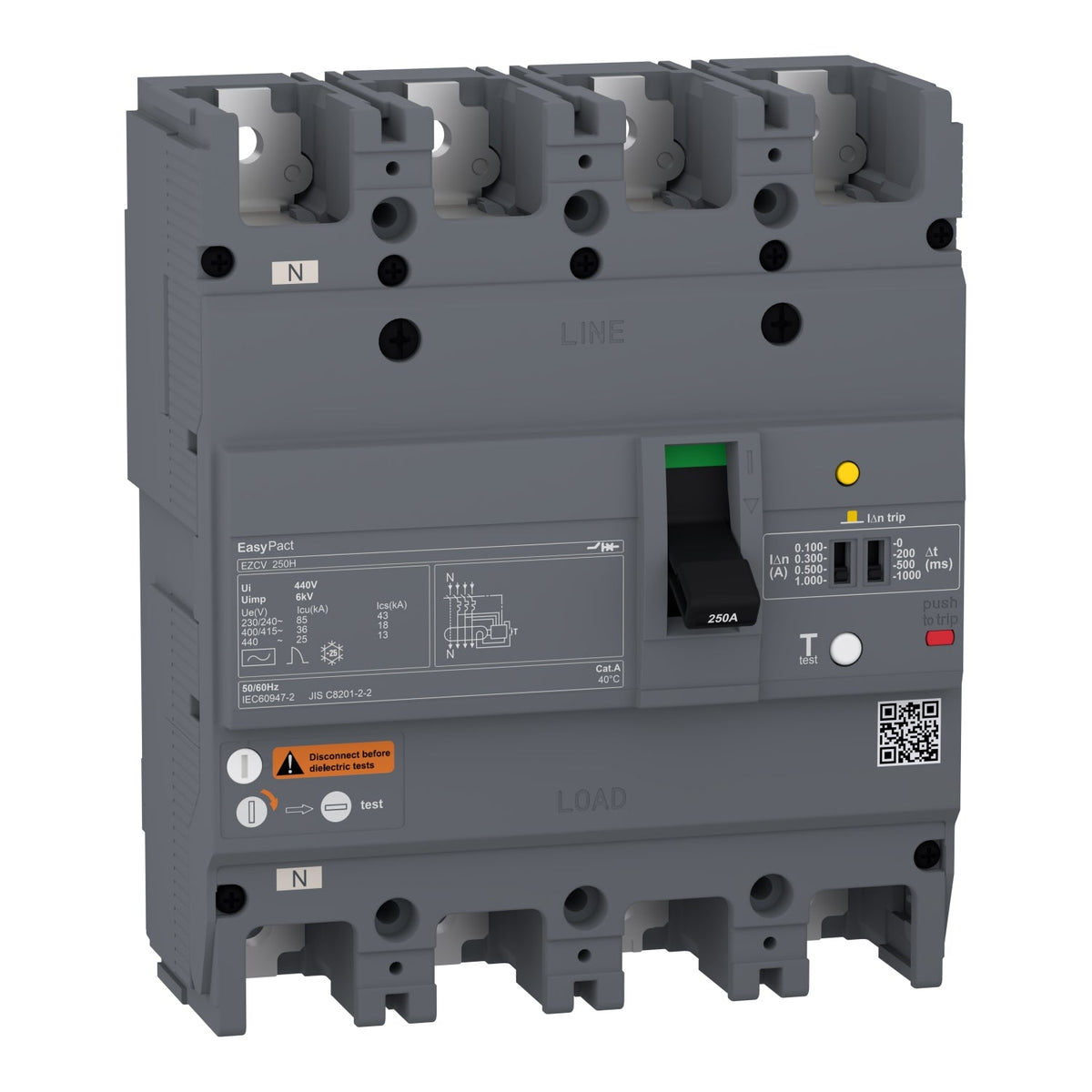

The Schneider Electric EZCV250H4250 is a 4-pole EasyPact EZCV250H moulded case circuit breaker rated 250 A, built on the 250 A frame with a TM-D thermal-magnetic trip unit and an ultimate breaking capacity (Icu) of 36 kA at 380/415 V AC. Overcurrent detection covers 3 of the 4 poles (4P/3t), and the device carries integrated earth-leakage (Vigi) protection for distribution boards that need a protected neutral pole without a separate residual-current device.
At 250 A on the 250 A EZCV250H frame, this breaker leaves headroom below the frame's maximum rating; the 200 A variant (EZCV250H4200) covers the frame's upper end instead, and both share the same TM-D trip unit and 36 kA Icu at 380/415 V AC, so the choice between them is the load current, not the protection function. Because detection runs on 3 of the 4 poles (3t), the neutral is switched but not individually monitored for overload or short-circuit, while the built-in earth-leakage element still protects the full circuit without adding a separate Vigi module.
| Range of product | EasyPact |
|---|---|
| Product or component type | Circuit breaker |
| Device short name | Easypact EZCV250H |
| Circuit breaker name | Easypact EZCV250H |
| Device application | Distribution |
| Poles description | 4P |
| Protected poles description | 3t |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [In] rated current | 250 A at 40 °C |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity code | H |
| Breaking capacity | 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 12.5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 18 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 250 A at 40 °C |
| Protection type | Overload protection, Short-circuit protection, Earth-leakage protection |
| Pollution degree | 3 conforming to IEC 60947 |
| Control type | Toggle |
|---|---|
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Upside connection | Front |
| Downside connection | Front |
| Mechanical durability | 10000 cycles |
| Connection pitch | 35 mm |
| Local signalling | Positive contact indication |
| Neutral protection setting | Without protection |
| Earth-leakage protection | With |
| Height | 165 mm |
| Width | 140 mm |
| Depth | 68 mm |
| Standards | EN/IEC 60947-2, EN/IEC 60947-1, GB/T 14048.2, JIS C8201-2-2 |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -35…85 °C |
| Part number | EZCV250H4250 |
|---|---|
| Type designation | Easypact EZCV250H |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 14.500 cm |
| Package 1 Length | 18.500 cm |
| Package 1 Weight | 2.520 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 15.607 kg |
| Shipping weight | 2.52 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
