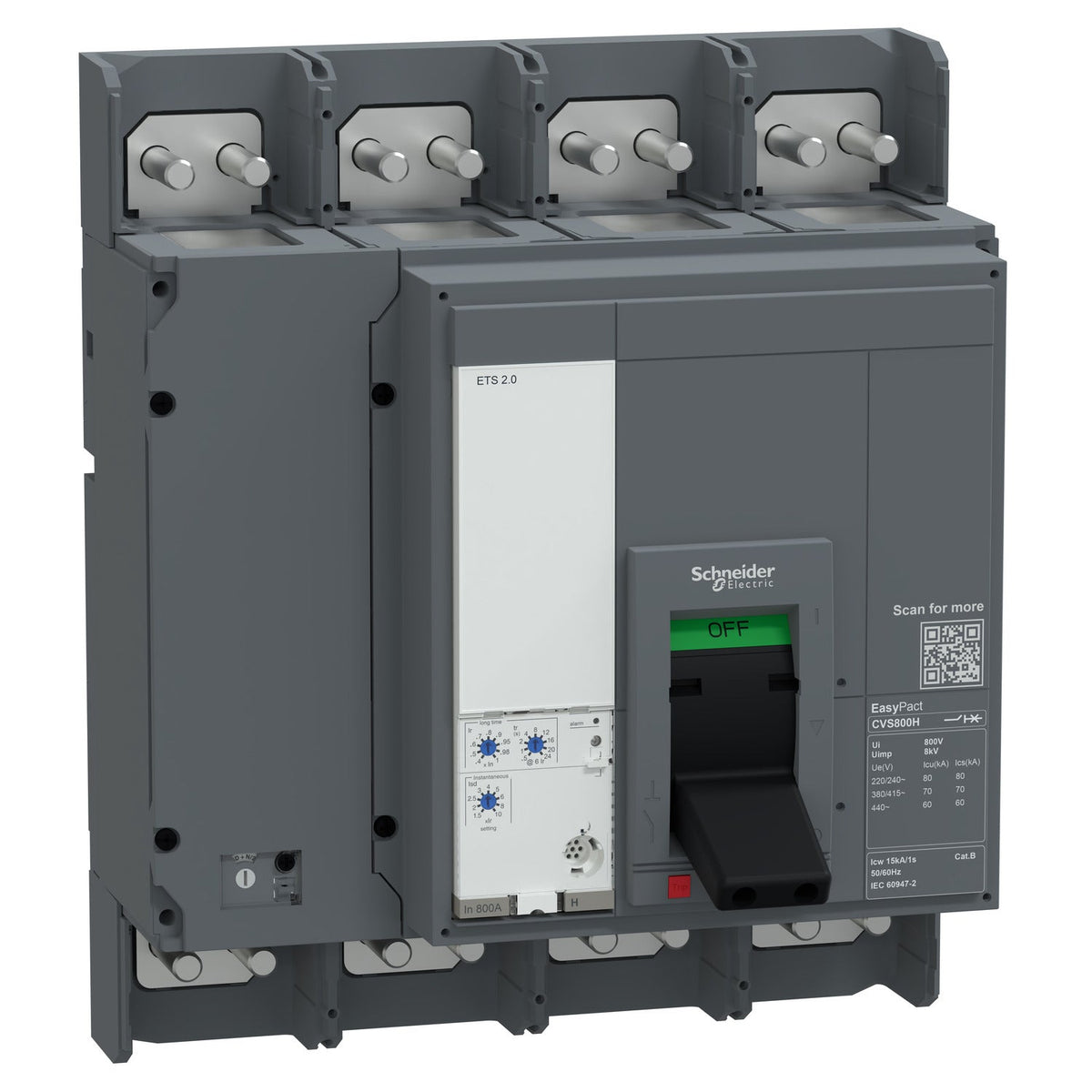

Schneider Electric E160H420FM EasyPact CVS1600H 4P 1600 A 70 kA ETS 2.0 Fixed Moulded Case Circuit Breaker

Schneider Electric E160H420FM, EasyPact CVS1600H, 4P 1600 A, 70 kA at 380/415 V AC, ETS 2.0 electronic trip

Rated current
1600 A
Rated operational voltage
440 V AC
Description

About the CVS1600H

The Schneider Electric E160H420FM is a 1600 A EasyPact CVS1600H moulded case circuit breaker for low-voltage electrical distribution, built on a high-breaking H frame. Its ETS 2.0 electronic trip unit gives adjustable long-time overload and instantaneous short-circuit protection (LI), and the 4-pole, 4D frame breaks 70 kA at 380/415 V AC under IEC 60947-2.

Certifications & Standards

  • CCC
  • CB
  • CE
  • EN/IEC 60947-2

Selection Notes

Pick the H frame on the incomer or anywhere upstream fault current can reach 70 kA at 380/415 V -- it is the highest-breaking frame at this amperage. The 4-pole frame adds switched neutral protection, selectable at 0.5 x Ir for a half-protected N/2 conductor or 1 x Ir for a fully protected neutral -- relevant on TT or TN-S systems carrying unbalanced single-phase loads. Within the 1600 A CVS1600 frame size, E160H420FM (H class) sits alongside breaking-class siblings at the same amperage -- move up a class if downstream fault studies show higher prospective short-circuit current than 70 kA at 380/415 V, since the ETS 2.0 long-time setting only trims down to 0.4 x In (640 A) and cannot raise the frame's current rating.

Specification

Full specification

76 values · Last verified 30 Oct 2026

Main 9

Range EasyPact
Range of product EasyPact CVS
Product or component type Circuit breaker
Device short name CVS1600H
Device application Low voltage electrical distribution
Poles description 4P
Protected poles description 4D
Neutral position Left
Neutral protection setting No protection (3D), 0.5 x Ir (3D + N/2), 1 x Ir (4D)

Complementary 37

[Ue] rated operational voltage 440 V AC 50/60 Hz
[In] rated current 1600 A at 50 °C
Network type AC
Network frequency 50/60 Hz
[Ui] rated insulation voltage 800 V AC conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3
Power dissipation 15 W
Protection type L : for overload protection (long time), I : for instantaneous short-circuit protection
Breaking capacity code H 70 kA 415 V AC
Local signalling 4 LEDs (red) for fault indication, 1 LED (yellow) for overload
Auxiliary contact composition 1 NO/NC
Earth-leakage protection Without
Control type Rotary handle, Toggle
Breaking capacity 80 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 60 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
Utilisation category Category A
[Ics] rated service breaking capacity 80 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 60 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 5000 cycles
Electrical durability 3000 cycles at 415 V In, 2000 cycles at 440 V In
Suitability for isolation Yes conforming to EN/IEC 60947-2
Connection pitch 70 mm
Mounting mode Fixed
Mounting support Backplate
Upside connection Front
Downside connection Front
Trip unit name ETS 2.0
Trip unit technology Electronic
Trip unit protection functions LI
Trip unit rating 1600 A at 50 °C
Long time pick-up adjustment type Ir Adjustable
Long time pick-up adjustment range 0.4...1 x In
Long time delay adjustment type Adjustable 9 settings
[tr] long-time delay adjustment range 12.5…600 s at 1.5 x Ir, 0.5…24 s at 6 x Ir, 0.7…16.6 s at 7.2 x Ir
Thermal memory 20 mn
Instantaneous pick-up adjustment type Ii Adjustable
Instantaneous pick-up adjustment range 1.5...10 x Ir
Zone selective interlocking ZSI Without
Net weight 18 kg

Environment 12

IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000...5000 m with derating
Height 327 mm
Width 280 mm
Depth 147 mm
Standards EN/IEC 60947-2
Product certifications CCC, CB, CE
Pollution degree 3 conforming to IEC 60664-1
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Show all 76 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number E160H420FM
Type designation CVS1600H
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 29.5 cm
Package 1 Width 39.6 cm
Package 1 Length 59.6 cm
Package 1 Weight 20 kg
Shipping weight 18.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
