- Part number
- DF83
- Model no
- DF8
Description
About the DF8
About the DF8

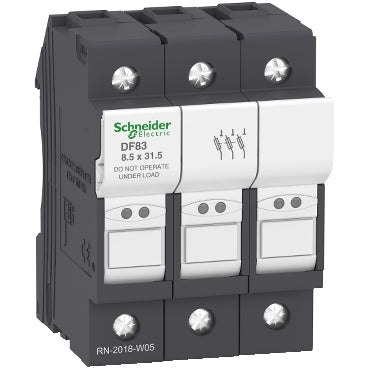

The Schneider Electric DF83 is a 3-pole TeSys DF fuse carrier rated 25 A at 400 V AC, built to hold an 8.3x31.5 mm aM or gG fuse link for control-circuit protection up to 500 V. Its screw-clamp terminals accept 1-16 mm² conductors, it clips onto 35 mm DIN rail, and the toggle is padlockable without extra accessories.
Certifications & Standards
- IEC
- EAC
- DNV-GL
- EN/IEC 60947-3
- EN/IEC 60269-2
Selection Notes
Choose the DF83 where three poles need fusing in a single carrier rather than ganging three single-pole DF101-style blocks; its 25 A / 400 V rating and 20 kA short-circuit withstand at 400 V size it for control circuits fed from a 400 V distribution board. The compact 52.5 mm width keeps density high when several 3P carriers sit side by side on the same DIN rail, and the padlockable toggle supports lockout-tagout work without a separate accessory.
Specification
Full specification
Main 18
| Range | TeSys |
|---|---|
| Product name | TeSys DF |
| Product or Component Type | Fuse carrier |
| Device short name | DF8 |
| Product compatibility | DF2BA fuse cartridge, DF2BN fuse cartridge |
| Poles description | 3P |
| Fuse size | 8.3 x 31.5 mm |
| Fuse type | 0…25 A, aM, 0…25 A, gG |
| Control type | Toggle padlockable |
| Utilisation category | AC-20B IEC 60947-3 |
| [Ue] rated operational voltage | 400 V AC |
| [Ie] rated operational current | 25 A 400 V AC |
| [Ith] conventional free air thermal current | 25 A 68 °F (20 °C) |
| [Ui] rated insulation voltage | 500 V AC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Overvoltage category | III |
| Short-circuit withstand | 20 kA 400 V IEC 60947-3 |
| Power dissipation in W | 2.50 W maximum power dissipation by fuse |
Complementary 11
| Standards | EN/IEC 60947-3, EN/IEC 60269-2 |
|---|---|
| Product certifications | IEC, EAC, DNV-GL |
| Mounting Support | 35 mm symmetrical DIN rail |
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | screw clamp terminals 1 0.002…0.02 in² (1…16 mm²)rigid, screw clamp terminals 2 0.002…0.009 in² (1…6 mm²)rigid, screw clamp terminals 1 0.002…0.02 in² (1…16 mm²)flexible with or without, screw clamp terminals 2 0.002…0.009 in² (1…6 mm²)flexible with or without |
| Tightening torque | 19.5 lbf.in (2.2 N.m) PZ2, 19.5 lbf.in (2.2 N.m) flat Ø 5.5 mm |
| Height | 3.1 in (79.5 mm) |
| Width | 2.07 in (52.5 mm) |
| Depth | 2.4 in (61 mm) |
| Net Weight | 0.278 lb(US) (0.126 kg) |
| Quantity per Set | Set of 4 |
Environment 7
| Ambient air temperature for storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) with derating above 20°C |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Compatibility code | DF8 |
Show all 50 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | DF83 |
|---|---|
| Type designation | DF8 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119407137 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.126 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
