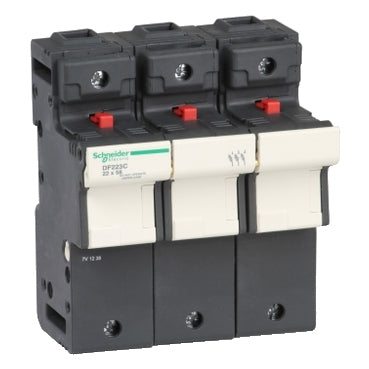

Schneider Electric DF223C TeSys DF Fuse Holder 3P 100 A 22x58 mm 690 V Fuse Holder

TeSys DF fuse carrier, 3P, 100 A, 690 V AC/DC, 22x58 mm fuse links with striker, 120 kA.

Rated current
100 A
Rated operational voltage
690 V AC
EAN
3389119407526
Description

About the DF22

The Schneider Electric DF223C is a three-pole TeSys DF fuse carrier rated 100 A at 690 V AC/DC, built for 22x58 mm fuse links with a striker pin up to 100 A gG or 125 A aM. The striker supports an add-on early-break auxiliary contact module (DF22AM) for remote blown-fuse indication. Screw terminals take 2.5-35 mm² conductors on 35 mm DIN rail in a 105 mm wide housing, with short-circuit withstand of 120 kA at 400 V and 80 kA at 690 V.

Certifications & Standards

  • IEC
  • UL Recognized
  • CSA
  • EAC
  • EN/IEC 60947-3
  • EN/IEC 60269-2
  • UL 4248-1
  • CSA C22.2 No 4248-1

Selection Notes

Choose the DF223C over the plain 3P 22x58 mm carrier whenever the panel design calls for remote blown-fuse signalling on a three-phase feeder rated up to 100 A gG or 125 A aM; the striker-pin fuses it takes trigger the add-on early-break contact module before anyone opens the enclosure. The 100 A rating and 120 kA withstand at 400 V scale the single-pole DF221 platform to three poles for motor or transformer branch circuits. Screw terminals rated for 2.5-35 mm² conductors suit the heavier cable this current level draws.

Specification

Full specification

47 values · Last verified 30 Oct 2026

Main 16

Range TeSys
Product name TeSys DF
Product or Component Type Fuse carrier
Device short name DF22
Product compatibility DF3FA fuse cartridge striker, DF3FN fuse cartridge striker, DF22AM auxiliary contact block
Poles description 3P
Fuse size 22 x 58 mm
Fuse type 0…100 A, gG, 0…125 A, aM
Control type Toggle
[Ue] rated operational voltage 690 V AC, 690 V DC
[Ie] rated operational current 100 A
[Ui] rated insulation voltage 690 V AC
[Uimp] rated impulse withstand voltage 8 kV
[Ipk] rated peak withstand current 19 kA with tubular links IEC 60269-1
Short-circuit withstand 120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-3, 80 kA 690 V IEC 60947-3
Power dissipation in W 9.50 W maximum power dissipation by fuse

Complementary 11

Standards EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1
Product certifications IEC, UL Recognized, CSA, EAC
Mounting Support 35 mm symmetrical DIN rail
Mounting position Vertical +/- 23°)
Connections - terminals screw clamp terminals 1 0.004…0.05 in² (2.5…35 mm²)rigid, screw clamp terminals 2 0.004…0.04 in² (2.5…25 mm²)rigid, screw clamp terminals 1 0.004…0.05 in² (2.5…35 mm²)flexible with or without, screw clamp terminals 2 0.004…0.04 in² (2.5…25 mm²)flexible with or without
Tightening torque 35.4 lbf.in (4 N.m)
Height 5.02 in (127.5 mm)
Width 4.1 in (105 mm)
Depth 3.01 in (76.5 mm)
Net Weight 1.442 lb(US) (0.654 kg)
Quantity per Set Set of 2

Environment 6

Ambient air temperature for storage -40…176 °F (-40…80 °C)
Ambient air temperature for operation -4…140 °F (-20…60 °C) with derating above 20°C
IP degree of protection IP20 conforming to IEC 60529
Protective treatment TH
Fire resistance 1760 °F (960 °C) IEC 60695-2-1
Compatibility code DF22
Show all 47 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number DF223C
Type designation DF22
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119407526

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin TN
Shipping weight 0.654 kg
Ships from Türkiye
Dispatch 29 Dec
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026
