Part number
DF221
Model no
DF22
$42.88 In stock · 12 Dispatch Planned dispatch date. We aim to ship within 30 business days. Depending on warehouse workload it can take 1–2 business days longer. · From Türkiye

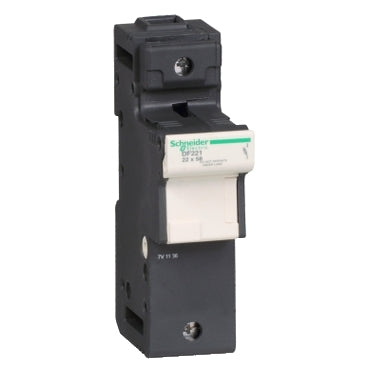

Schneider Electric DF221 TeSys DF Fuse Holder 1P 100 A 22x58 mm 690 V Fuse Holder

TeSys DF fuse carrier, 1P, 100 A, 690 V AC/DC, 22x58 mm fuse links up to 125 A aM, 120 kA.

Rated current
100 A
Rated operational voltage
690 V AC
EAN
3389119407489
Description

About the DF22

The Schneider Electric DF221 is a single-pole TeSys DF fuse carrier rated 100 A at 690 V AC/DC, sized for 22x58 mm fuse links up to 100 A gG or 125 A aM. Screw terminals take 2.5-35 mm² conductors, the carrier clips onto 35 mm DIN rail in a 35 mm wide housing, and short-circuit withstand reaches 120 kA at 400 V and 80 kA at 690 V.

Certifications & Standards

  • IEC
  • UL Recognized
  • CSA
  • EAC
  • EN/IEC 60947-3
  • EN/IEC 60269-2
  • UL 4248-1
  • CSA C22.2 No 4248-1

Selection Notes

Move up to the DF221 once a single-pole feeder needs more than the 50 A ceiling of the 14x51 mm carriers; the 22x58 mm fuse body supports a 100 A gG link for continuous loads or a 125 A aM link where a motor-type inrush needs more margin before the fuse clears. Screw terminals rated for 2.5-35 mm² conductors match the heavier cable this current level requires. The 120 kA withstand at 400 V keeps the carrier coordinated with upstream protection even on stiff supplies.

Specification

Full specification

47 values · Last verified 30 Oct 2026

Main 16

Range TeSys
Product name TeSys DF
Product or Component Type Fuse carrier
Device short name DF22
Product compatibility DF2FA fuse cartridge, DF2FN fuse cartridge
Poles description 1P
Fuse size 22 x 58 mm
Fuse type 0…100 A, gG, 0…125 A, aM
Control type Toggle
[Ue] rated operational voltage 690 V AC, 690 V DC
[Ie] rated operational current 100 A
[Ui] rated insulation voltage 690 V AC
[Uimp] rated impulse withstand voltage 8 kV
[Ipk] rated peak withstand current 19 kA with tubular links IEC 60269-1
Short-circuit withstand 120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-3, 80 kA 690 V IEC 60947-3
Power dissipation in W 9.50 W maximum power dissipation by fuse

Complementary 11

Standards EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1
Product certifications IEC, UL Recognized, CSA, EAC
Mounting Support 35 mm symmetrical DIN rail
Mounting position Vertical +/- 23°)
Connections - terminals screw clamp terminals 1 0.004…0.05 in² (2.5…35 mm²)rigid, screw clamp terminals 2 0.004…0.04 in² (2.5…25 mm²)rigid, screw clamp terminals 1 0.004…0.05 in² (2.5…35 mm²)flexible with or without, screw clamp terminals 2 0.004…0.04 in² (2.5…25 mm²)flexible with or without
Tightening torque 35.4 lbf.in (4 N.m)
Height 5.02 in (127.5 mm)
Width 1.4 in (35 mm)
Depth 3.01 in (76.5 mm)
Net Weight 0.481 lb(US) (0.218 kg)
Quantity per Set Set of 6

Environment 6

Ambient air temperature for storage -40…176 °F (-40…80 °C)
Ambient air temperature for operation -4…140 °F (-20…60 °C) with derating above 20°C
IP degree of protection IP20 conforming to IEC 60529
Protective treatment TH
Fire resistance 1760 °F (960 °C) IEC 60695-2-1
Compatibility code DF22
Show all 47 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number DF221
Type designation DF22
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119407489

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin TN
Shipping weight 0.218 kg
Ships from Türkiye
Dispatch 29 Dec
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026
