- Part number
- DF143C
- Model no
- DF14
Description
About the DF14
About the DF14

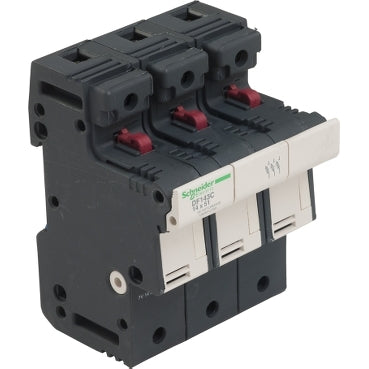

The Schneider Electric DF143C is a three-pole TeSys DF fuse carrier rated 50 A at 690 V AC/DC, built for 14x51 mm aM or gG fuse links fitted with a striker pin. The striker lets an early-break auxiliary contact module report a blown fuse before the operator opens the enclosure. Screw terminals handle 2.5-25 mm² conductors on 35 mm DIN rail, in a 79 mm wide housing, with short-circuit withstand of 120 kA at 400 V and 80 kA at 690 V.
Certifications & Standards
- IEC
- UL Recognized
- CSA
- EAC
- EN/IEC 60947-3
- EN/IEC 60269-2
- UL 4248-1
- CSA C22.2 No 4248-1
Selection Notes
Specify the DF143C instead of a plain 3P carrier when the panel needs remote indication of a blown fuse, since the striker-pin fuse links it accepts trip an add-on early-break auxiliary contact module rather than relying on visual inspection alone. The 50 A, 14x51 mm format carries the same rating as the single-pole version in this platform, scaled to three poles for three-phase feeds. Screw terminals rated for 2.5-25 mm² conductors keep the connection suited to the heavier cable typical of a 50 A three-phase branch.
Specification
Full specification
Main 16
| Range | TeSys |
|---|---|
| Product name | TeSys DF |
| Product or Component Type | Fuse carrier |
| Device short name | DF14 |
| Product compatibility | DF3EA fuse cartridge striker, DF3EN fuse cartridge striker, DF14AM auxiliary contact block |
| Poles description | 3P |
| Fuse size | 14 x 51 mm |
| Fuse type | 0…50 A, aM, 0…50 A, gG |
| Control type | Toggle |
| [Ue] rated operational voltage | 690 V AC, 690 V DC |
| [Ie] rated operational current | 50 A |
| [Ui] rated insulation voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ipk] rated peak withstand current | 15 kA with tubular links IEC 60269-1 |
| Short-circuit withstand | 120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-3, 80 kA 690 V IEC 60947-3 |
| Power dissipation in W | 5 W maximum power dissipation by fuse |
Complementary 11
| Standards | EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1 |
|---|---|
| Product certifications | IEC, UL Recognized, CSA, EAC |
| Mounting Support | 35 mm symmetrical DIN rail |
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | screw clamp terminals 1 0.004…0.04 in² (2.5…25 mm²)rigid, screw clamp terminals 2 0.004…0.02 in² (2.5…10 mm²)rigid, screw clamp terminals 1 0.004…0.04 in² (2.5…25 mm²)flexible with or without, screw clamp terminals 2 0.004…0.02 in² (2.5…10 mm²)flexible with or without |
| Tightening torque | 31.0 lbf.in (3.5 N.m) |
| Height | 4.4 in (110.8 mm) |
| Width | 3.1 in (79 mm) |
| Depth | 3.01 in (76.5 mm) |
| Net Weight | 0.926 lb(US) (0.420 kg) |
| Quantity per Set | Set of 2 |
Environment 6
| Ambient air temperature for storage | -40…176 °F (-40…80 °C) |
|---|---|
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) with derating above 20°C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Compatibility code | DF14 |
Show all 47 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | DF143C |
|---|---|
| Type designation | DF14 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119407410 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | TN |
|---|---|
| Shipping weight | 0.42 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for DF143C
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- EAC
- EN/IEC 60947-3
- EN/IEC 60269-2
- UL 4248-1
- CSA C22.2 No 4248-1
Quick answers
Questions about the DF14
What is the rated current of DF14?
The rated current of DF14 is 50 A.
Which supply voltage is DF14 rated for?
The rated operational voltage of DF14 is 690 V AC.
What is the HS code of DF14 for customs?
The tariff (HS) code on file for DF14 is 853610.
What is the EAN of DF14?
The EAN (GTIN) of DF14 is 3389119407410.
Where does DF14 ship from, and how fast?
DF14 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
