- Part number
- DF141
- Model no
- DF14
Description
About the DF14
About the DF14

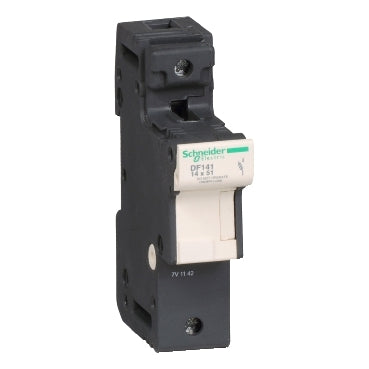

The Schneider Electric DF141 is a single-pole TeSys DF fuse carrier rated 50 A at 690 V AC/DC, sized for the larger 14x51 mm aM or gG fuse link used once control-circuit current exceeds the 10x38 mm format. Screw terminals accept 2.5-25 mm² conductors, and the carrier clips onto 35 mm DIN rail in a 26.5 mm wide housing. Short-circuit withstand is 120 kA at 400 V and 80 kA at 690 V.
Certifications & Standards
- IEC
- UL Recognized
- CSA
- EAC
- EN/IEC 60947-3
- EN/IEC 60269-2
- UL 4248-1
- CSA C22.2 No 4248-1
Selection Notes
Step up from the 10x38 mm DF10 carriers to the DF141 once the protected load needs a fuse rated above 32 A but a single pole is still sufficient, such as a larger single-phase control transformer primary. The 14x51 mm fuse body carries more thermal mass than the 10x38 mm size, which is why the line jumps straight to 50 A rather than offering intermediate steps in the smaller housing. Screw terminals rather than screw-clamp terminals suit the heavier 2.5-25 mm² cross-sections typical at this current level.
Specification
Full specification
Main 16
| Range | TeSys |
|---|---|
| Product name | TeSys DF |
| Product or Component Type | Fuse carrier |
| Device short name | DF14 |
| Product compatibility | DF2EA fuse cartridge, DF2EN fuse cartridge |
| Poles description | 1P |
| Fuse size | 14 x 51 mm |
| Fuse type | 0…50 A, gG, 0…50 A, aM |
| Control type | Toggle |
| [Ue] rated operational voltage | 690 V AC, 690 V DC |
| [Ie] rated operational current | 50 A |
| [Ui] rated insulation voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ipk] rated peak withstand current | 15 kA with tubular links IEC 60269-1 |
| Short-circuit withstand | 120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-3, 80 kA 690 V IEC 60947-3 |
| Power dissipation in W | 5 W maximum power dissipation by fuse |
Complementary 11
| Standards | EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1 |
|---|---|
| Product certifications | IEC, UL Recognized, CSA, EAC |
| Mounting Support | 35 mm symmetrical DIN rail |
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | screw clamp terminals 1 0.004…0.04 in² (2.5…25 mm²)rigid, screw clamp terminals 2 0.004…0.02 in² (2.5…10 mm²)rigid, screw clamp terminals 1 0.004…0.04 in² (2.5…25 mm²)flexible with or without, screw clamp terminals 2 0.004…0.02 in² (2.5…10 mm²)flexible with or without |
| Tightening torque | 31.0 lbf.in (3.5 N.m) |
| Height | 4.4 in (110.8 mm) |
| Width | 1.04 in (26.5 mm) |
| Depth | 3.01 in (76.5 mm) |
| Net Weight | 0.309 lb(US) (0.140 kg) |
| Quantity per Set | Set of 6 |
Environment 6
| Ambient air temperature for storage | -40…176 °F (-40…80 °C) |
|---|---|
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) with derating above 20°C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Compatibility code | DF14 |
Show all 47 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | DF141 |
|---|---|
| Type designation | DF14 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119407373 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | TN |
|---|---|
| Shipping weight | 0.14 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
