- Part number
- DF101N
- Model no
- DF10
Description
About the DF10
About the DF10

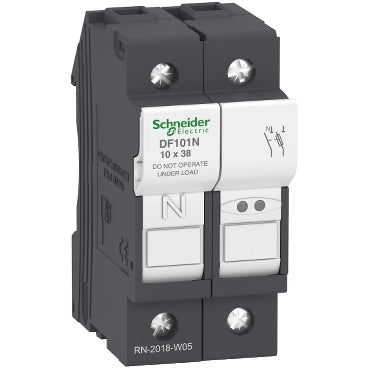

The Schneider Electric DF101N is a 1P+N TeSys DF fuse carrier rated 32 A at 690 V AC/DC, sized for 10x38 mm aM or gG fuse links. The neutral pole carries a locked tubular link rather than a second fuse, so only the live conductor is protected while the neutral stays solidly connected. Screw-clamp terminals, 35 mm DIN rail clipping, and a padlockable toggle round out the 35 mm wide housing, with short-circuit withstand of 120 kA at 400 V.
Certifications & Standards
- IEC
- UL Recognized
- CSA
- CCC
- EAC
- DNV-GL
- EN/IEC 60947-3
- EN/IEC 60269-2
- UL 4248-1
- CSA C22.2 No 4248-1
- EN 45545-2
Selection Notes
Choose the DF101N over a plain single-pole carrier whenever the circuit design calls out a switched or disconnectable neutral alongside the protected live conductor, such as single-phase control transformers or 1P+N auxiliary feeds. The locked tubular link in the neutral pole means a technician never fits a live fuse where only a solid link belongs, which removes a common wiring error during maintenance. At 35 mm wide it still fits standard DIN rail spacing, and the 32 A, 120 kA rating matches the single-pole version in the same platform for consistent panel coordination.
Specification
Full specification
Main 19
| Range | TeSys |
|---|---|
| Product name | TeSys DF |
| Product or Component Type | Fuse carrier |
| Device short name | DF10 |
| Device composition | tubular link locked in Neutral pole |
| Product compatibility | DF2CA fuse cartridge, DF2CN fuse cartridge |
| Poles description | 1P + N |
| Fuse size | 10 x 38 mm |
| Fuse type | 0…32 A, aM, 0…32 A, gG |
| Control type | Toggle padlockable |
| Utilisation category | AC-20B IEC 60947-3, DC-20B IEC 60947-3 |
| [Ue] rated operational voltage | 690 V AC, 690 V DC |
| [Ie] rated operational current | 32 A 400 V AC |
| [Ith] conventional free air thermal current | 32 A 68 °F (20 °C) |
| [Ui] rated insulation voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Overvoltage category | III |
| Short-circuit withstand | 120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-3 |
| Power dissipation in W | 3 W maximum power dissipation by fuse |
Complementary 11
| Standards | EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1, EN 45545-2: R22 HL2 |
|---|---|
| Product certifications | IEC, UL Recognized, CSA, CCC, EAC, DNV-GL |
| Mounting Support | 35 mm symmetrical DIN rail |
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | screw clamp terminals 1 0.002…0.02 in² (1…16 mm²)rigid, screw clamp terminals 2 0.002…0.009 in² (1…6 mm²)rigid, screw clamp terminals 1 0.002…0.02 in² (1…16 mm²)flexible with or without, screw clamp terminals 2 0.002…0.009 in² (1…6 mm²)flexible with or without |
| Tightening torque | 19.5 lbf.in (2.2 N.m) PZ2, 19.5 lbf.in (2.2 N.m) flat Ø 5.5 mm |
| Height | 3.1 in (79.5 mm) |
| Width | 1.4 in (35 mm) |
| Depth | 2.4 in (61 mm) |
| Net Weight | 0.192 lb(US) (0.087 kg) |
| Quantity per Set | Set of 6 |
Environment 7
| Ambient air temperature for storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) with derating above 20°C |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Compatibility code | DF10 |
Show all 51 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | DF101N |
|---|---|
| Type designation | DF10 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119407229 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.087 kg |
| Ships from | Türkiye |
| Dispatch | 29 Dec |
| Stock | In stock |
