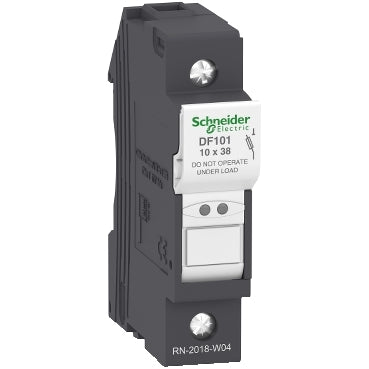

Schneider Electric DF101 TeSys DF Fuse Holder 1P 32 A 10x38 mm 690 V Fuse Holder

The Schneider Electric DF101 is a single-pole TeSys DF fuse carrier rated 32 A at 690 V AC/DC, built to hold a 10x38 mm aM or gG fuse link for control-circuit protection. Its screw-clamp terminals handle 1-16 mm² conductors, it clips onto 35 mm DIN rail, and the toggle is padlockable without extra accessories. Short-circuit withstand reaches 120 kA at 400 V.

Technical Specifications

Certifications & Standards

• IEC
• UL Recognized
• CSA
• CCC
• EAC
• DNV-GL
• EN/IEC 60947-3
• EN/IEC 60269-2
• UL 4248-1
• CSA C22.2 No 4248-1
• EN 45545-2

Selection Notes

Pick the DF101 where a single protected pole is enough and the load stays at or under 32 A continuous; its 120 kA short-circuit withstand at 400 V lets it sit directly behind an incomer with a high prospective fault current without derating the fuse link. The padlockable toggle secures the circuit for lockout-tagout work without a separate accessory, and the 17.5 mm width keeps panel real estate tight when several carriers are ganged side by side on the same DIN rail. Where the circuit also needs a switched neutral in the same fuse format, the 1P+N variant in this platform carries the same 32 A, 690 V rating with a locked neutral link added.
