Part number
C63V46E630
Model no
NSX630HB1
$5,711.48 On request Dispatch — · From TürkiyeGet a Quote

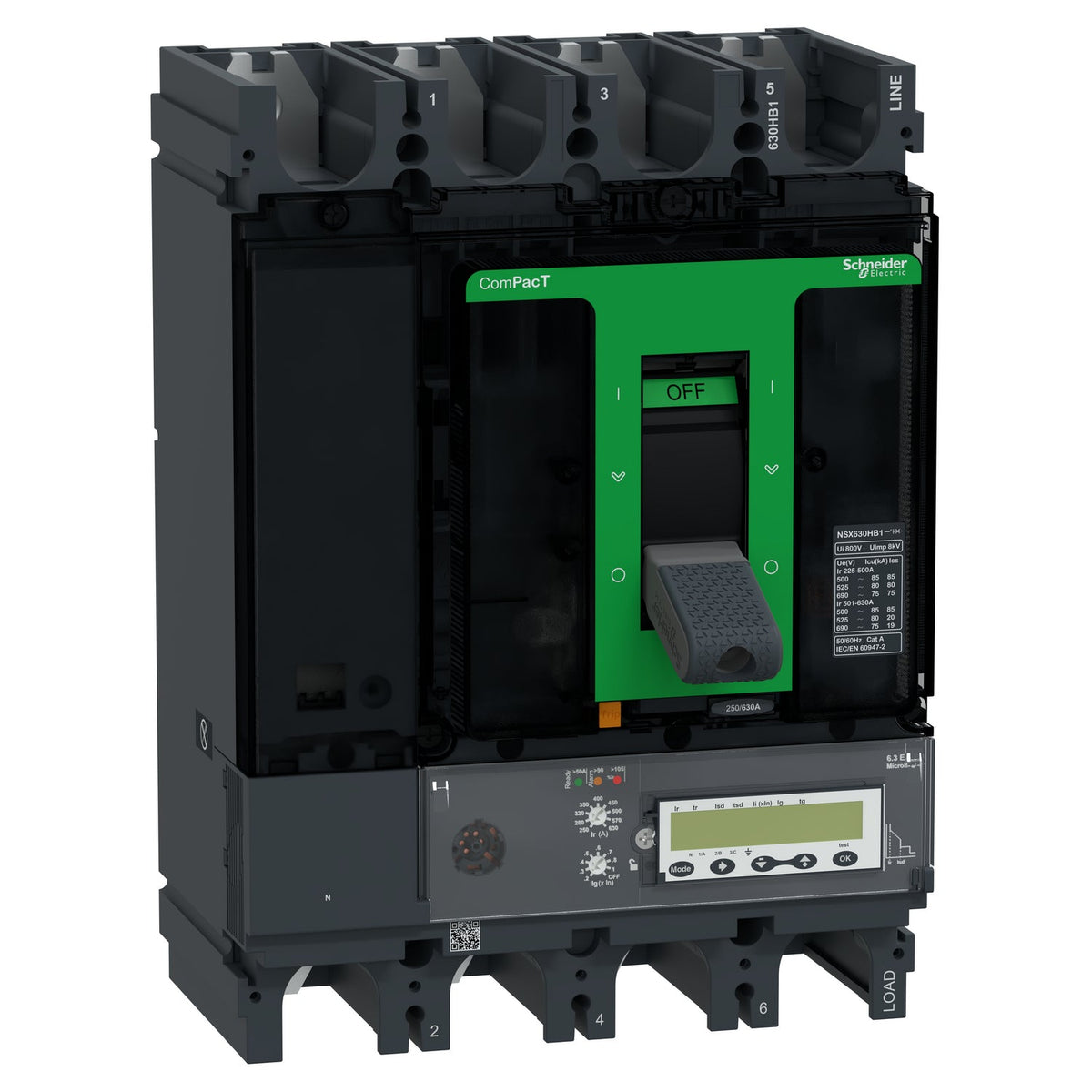

Schneider Electric C63V46E630 ComPacT NSX630HB1 4P 630 A 75 kA MicroLogic 6.3 E Moulded Case Circuit Breaker

NSX630HB1 4P 630 A 75 kA MicroLogic 6.3 E MCCB, fixed backplate mount.

Rated current
630 A
Rated operational voltage
690 V AC
Display
LCD display
Description

About the NSX630HB1

The Schneider Electric C63V46E630 is a four-pole ComPacT NSX630HB1 moulded case circuit breaker, rated 630 A at 40 °C with a 75 kA breaking capacity at 380/415 V AC and 690 V AC rated operational voltage. It carries a MicroLogic 6.3 E trip unit giving LSIG protection, fixed for backplate mounting with front upside and downside connections on a 45 mm pitch.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The HB1 frame trades breaking capacity for 690 V AC suitability, so pick it over the standard R frame when the installation runs at 690 V AC and a 75 kA breaking capacity at that voltage is sufficient. The MicroLogic 6.3 E trip unit adds adjustable ground-fault protection, with its own time delay, on top of the long-time, short-time and instantaneous stages, the choice when earth-fault discrimination is required upstream. The 5.3 E variant covers the same long-time, short-time and instantaneous functions without ground-fault protection, and the 2.3 unit is the fixed-settings baseline.

Specification

Full specification

89 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NSX
Device short name NSX630HB1
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 4D, 3D + OSN, 3D + N/2, 3D
Neutral position Left
[In] rated current 630 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 85 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 75 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code HB1 75 kA 690 V AC
Trip unit name MicroLogic 6.3 E
Trip unit technology Electronic
Trip unit protection functions LSIG
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 40

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service breaking capacity 85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 15000 cycles
Electrical durability 8000 cycles at 440 V In/2, 4000 cycles at 440 V In, 6000 cycles at 690 V In/2, 2000 cycles at 690 V In
Power dissipation per pole 39.7 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 45 mm
Protection type L : for overload protection (long time), S : for short time short-circuit protection, I : for instantaneous short-circuit protection, G : for ground fault protection
Trip unit rating 630 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 250...630 A
Long-time protection delay adjustment type tr Adjustable
[tr] long-time delay adjustment range 15…400 s at 1.5 x Ir, 0.5…16 s at 6 x Ir, 0.35…11 s at 7.2 x Ir
Neutral protection setting 0.5 x Ir (3D + N/2), 1 x Ir (4D), 1.6 x Ir (3D + OSN), No protection (3D)
Thermal memory 20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd Adjustable
[Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir
Short-time protection delay adjustment type tsd Adjustable 5 settings
[tsd] short-time delay adjustment range 0…0.4 s I²t=off, 0.1…0.4 s I²t=on
Instantaneous protection pick-up adjustment type Ii Adjustable
[Ii] instantaneous protection pick-up adjustment range 1.5...11 x In
Ground-fault protection pick-up adjustment type Ig Adjustable 9 settings
[Ig] ground-fault pick-up adjustment range 0.4...1 x In for In = 40 A, 0.2...1 x In for In > 40 A, Ig enable on/off
Ground-fault protection time delay adjustment type tg Adjustable 5 settings
[tg] Ground-fault time delay adjustment range 0…0.4 s I²t=off, 0.1…0.4 s I²t=on
Earth-leakage protection Without
Zone selective interlocking ZSI With
Number of slots 6 slot(s)
Local signalling Flashing LED (green) for ready to operate, LED 105 % Ir (red) for overload, LED 90 % Ir (orange) for overload
Display type LCD display
Type of measurement Energy meter
Communication of data Demand current and power, Instantaneous and demand values, Power quality, Energy metering, Maintenance indicators, Maximeters/minimeters, Time-stamped histories and event tables, Protection and alarm settings
Width (W) 185 mm
Height (H) 255 mm
Depth (D) 110 mm
Net weight 8.13 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 89 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C63V46E630
Type designation NSX630HB1
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.2 cm
Package 1 Width 20.3 cm
Package 1 Length 29.2 cm
Package 1 Weight 7.651 kg
Shipping weight 8.13 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C63V46E630

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN/IEC 60947-2
Quick answers

Questions about the NSX630HB1

What is the rated current of NSX630HB1?

The rated current of NSX630HB1 is 630 A.

Which supply voltage is NSX630HB1 rated for?

The rated operational voltage of NSX630HB1 is 690 V AC.

What is the HS code of NSX630HB1 for customs?

The tariff (HS) code on file for NSX630HB1 is 853620.

Where does NSX630HB1 ship from, and how fast?

NSX630HB1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
