Schneider Electric C63V32D630 ComPacT NSX630HB1 3P 630 A 75 kA MicroLogic 2.3 Moulded Case Circuit Breaker

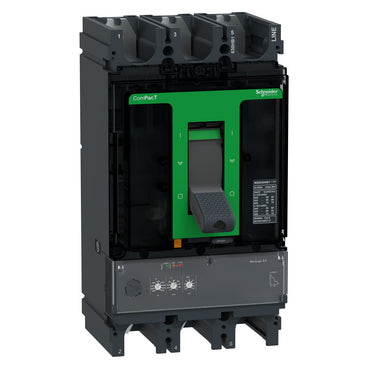

The Schneider Electric C63V32D630 is a three-pole ComPacT NSX630HB1 moulded case circuit breaker, rated 630 A at 40 °C with a 75 kA breaking capacity at 380/415 V AC and 690 V AC rated operational voltage. It carries a MicroLogic 2.3 trip unit giving LSoI protection, fixed for backplate mounting with front upside and downside connections on a 45 mm pitch.

Technical Specifications

Certifications & Standards

• EN/IEC 60947-2

Selection Notes

The HB1 frame trades breaking capacity for 690 V AC suitability, so pick it over the standard R frame when the installation runs at 690 V AC and a 75 kA breaking capacity at that voltage is sufficient. The MicroLogic 2.3 trip unit gives fixed long-time and short-time protection plus a non-adjustable instantaneous stage at 6900 A, which suits circuits where settings do not need field tuning. Choose the 5.3 E or 6.3 E variant instead when the installation needs an adjustable short-time delay, zone-selective interlocking, or an integrated energy meter.
