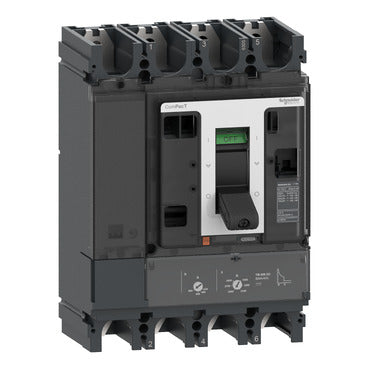

Schneider Electric C63S4TM600D ComPacT NSX600S DC 4P 600 A 100 kA TM-DC Moulded Case Circuit Breaker

% $-2,212.11
Schneider Electric C63S4TM600D ComPacT NSX DC 4P 600 A Moulded Case Circuit Breaker – 750 V DC
Schneider Electric C63S4TM600D ComPacT NSX DC 4P 600 A Moulded Case Circuit Breaker – 750 V DC

Schneider Electric C63S4TM600D ComPacT NSX600S DC 4P 600 A 100 kA TM-DC Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C63S4TM600D
Catalog No: C63S4TM600D
Tariff Code (HS): 85362090
Rated Current: 600 A
Breaking Type: TM-DC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,212.11

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric C63S4TM600D is a four-pole ComPacT NSX630S DC moulded case circuit breaker rated 600 A at 40 °C and 750 V DC, with a 100 kA breaking capacity across 24 V DC to 750 V DC using one to three poles in series. It carries a TM-DC thermal-magnetic trip unit for adjustable overload and magnetic short-circuit protection, fixed for backplate mounting.

Technical Specifications

Reference C63S4TM600D
Brand Schneider Electric
Range ComPacT
Product name ComPacT NSX DC
Device short name NSX630S DC
Product type Molded Case Circuit Breaker (MCCB)
Poles 4P (4D protected poles)
[In] rated current 600 A at 40 °C
[Ue] rated operational voltage 750 V DC
Network type DC
Breaking capacity [Icu] 100 kA at 24…125 V DC (1 pole), 100 kA at 250 V DC (1 pole), 100 kA at 500 V DC (2 poles in series), 100 kA at 750 V DC (3 poles in series), conforming to IEC 60947-2
Service breaking capacity [Ics] Equal to Icu (100%) at every listed voltage tier
[Ui] rated insulation voltage 750 V DC
[Uimp] rated impulse withstand voltage 8 kV
Trip unit TM-DC (Thermal-magnetic, LI)
[Ir] long-time pick-up adjustment 0.7…1 x In
[Ii] instantaneous pick-up adjustment 2.5…5 x In
Control type Toggle
Mounting mode Fixed, backplate
Connections Front upside and downside, 45 mm pitch
Dimensions (W x H x D) 185 mm x 255 mm x 110 mm
Net weight 8.4 kg
IP / IK degree of protection IP40 / IK07
Ambient air temperature (operation / storage) -25…70 °C / -50…85 °C
Standard EN/IEC 60947-2

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The TM-DC thermal-magnetic trip unit gives an adjustable 0.7…1 x In overload setting and a 2.5…5 x In magnetic trip, sized for DC distribution and DC motor circuits up to 750 V DC using poles in series. Choose the 500 A rating from this frame when the circuit's continuous current falls outside the 600 A adjustment band, and move to the 3-pole version instead when the installation does or does not need a switched neutral conductor.

Technical Details

Short Description
NSX600S DC 4P 600 A 750 V DC TM-DC MCCB, 100 kA breaking capacity.
