Schneider Electric C63N35E630 ComPacT NSX630N 3P 630 A 50 kA MicroLogic 5.3 E Moulded Case Circuit Breaker

% $-1,217.50

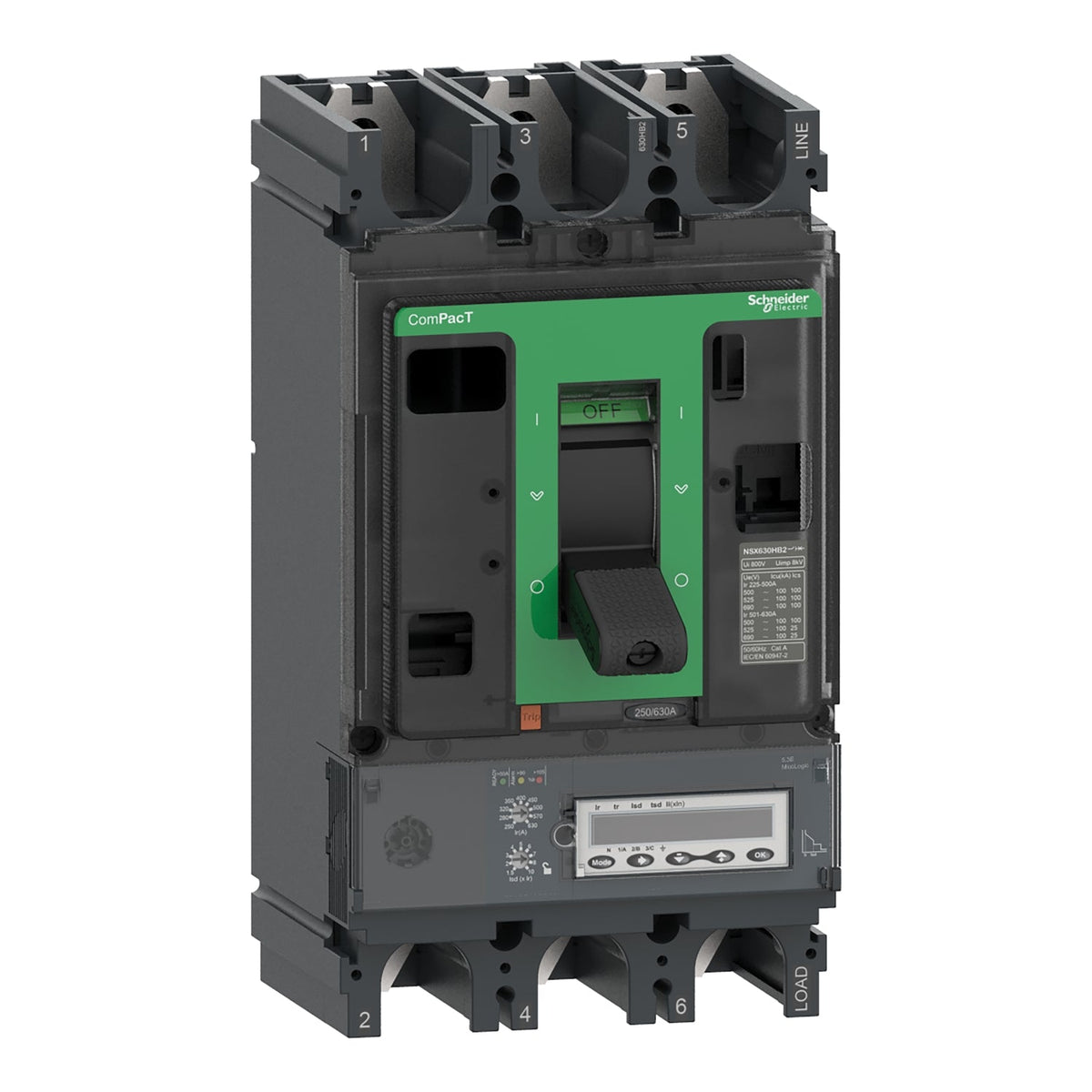

Schneider Electric C63N35E630 ComPacT NSX630N 630A 50kA moulded case circuit breaker
Schneider Electric C63N35E630 ComPacT NSX630N 630A 50kA moulded case circuit breaker

Schneider Electric C63N35E630 ComPacT NSX630N 3P 630 A 50 kA MicroLogic 5.3 E Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C63N35E630
Catalog No: C63N35E630
Tariff Code (HS): 853620
Rated Current: 630 A
Breaking Type: MicroLogic 5.3 E
Rated Voltage: 690 V
Communication: Modbus-ready metering (MicroLogic E trip unit)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,217.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C63N35E630 is a Schneider Electric ComPacT NSX630N 3-pole moulded case circuit breaker rated 630 A at 40 °C, with a 50 kA breaking capacity (Icu) at 380/415 V AC. It uses the MicroLogic 5.3 E trip unit, which provides adjustable long-time, short-time and instantaneous protection plus an integrated energy meter, and is rated for isolation up to 690 V AC.

Technical Specifications

Reference C63N35E630
Brand Schneider Electric
Range ComPacT
Series NSX630N
Poles 3P
Rated current In 630 A at 40 °C
Rated operational voltage Ue 690 V AC, 50/60 Hz
Rated insulation voltage Ui 800 V AC
Rated impulse withstand voltage Uimp 8 kV
Breaking capacity Icu 85 kA at 220/240 V AC, 50 kA at 380/415 V AC, 42 kA at 440 V AC, 30 kA at 500 V AC, 22 kA at 525 V AC, 10 kA at 660/690 V AC
Service breaking capacity Ics 85 kA at 220/240 V AC, 50 kA at 380/415 V AC, 42 kA at 440 V AC, 30 kA at 500 V AC, 11 kA at 525 V AC, 10 kA at 660/690 V AC
Utilisation category Category A
Suitability for isolation Yes, conforming to EN/IEC 60947-2
Trip unit MicroLogic 5.3 E (Electronic)
Protection functions LSI
Protection settings Ir (long-time, adjustable) 250…630 A; Isd (short-time, adjustable) 1.5–10×Ir with tsd 0–0.4 s (I²t on/off); Ii (instantaneous, adjustable) 1.5–12×In.
Earth-leakage protection Without
Zone selective interlocking (ZSI) With
Metering & display LCD display, integrated energy meter, protection/alarm settings and event history
Control / mounting Toggle handle, fixed mounting on backplate, front/front connection
Dimensions (W×H×D) 140 mm × 255 mm × 110 mm
Net weight 6.2 kg
IP / IK degree IP40 / IK07
Ambient temperature (operation / storage) -35…70 °C / -40…85 °C

Certifications & Standards

  • CCC
  • EAC
  • Marine
  • EN/IEC 60947

Selection Notes

The L-S-I MicroLogic 5.3 E adds an adjustable short-time delay and an adjustable instantaneous stage to the long-time overload function, plus an LCD display with an integrated energy meter. Choose it over the 2.3 variant when the switchboard needs metering data or zone-selective interlocking (ZSI) for coordinated tripping with downstream devices. At 50 kA Icu at 380/415 V AC, the N frame is the standard-duty 50 kA/415 V option in the 630 A ComPacT NSX range.

Technical Details

Short Description
ComPacT NSX630N 3P 630 A, 50 kA Icu, MicroLogic 5.3 E trip unit.
Rated Current (Ampere)
630 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed, backplate
Protection Type
IP40
Catalog No
C63N35E630
Delivery Date (Days)
30 days
Model Number
NSX630N
Tariff Code
853620
