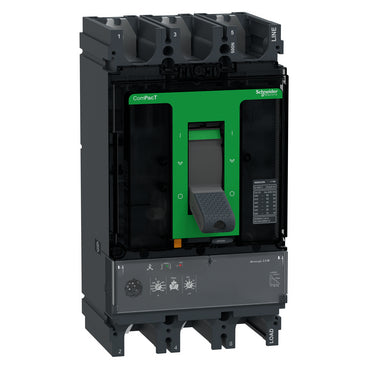

Schneider Electric C63N32M500 ComPacT NSX630N 3P 500 A 50 kA MicroLogic 2.3 M Moulded Case Circuit Breaker

% $-969.98
Schneider Electric C63N32M500 ComPacT NSX630N 500A 50kA moulded case circuit breaker
Schneider Electric C63N32M500 ComPacT NSX630N 500A 50kA moulded case circuit breaker

Schneider Electric C63N32M500 ComPacT NSX630N 3P 500 A 50 kA MicroLogic 2.3 M Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C63N32M500
Catalog No: C63N32M500
Tariff Code (HS): 85362090
Rated Current: 500 A
Breaking Type: MicroLogic 2.3 M
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$969.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C63N32M500 is a Schneider Electric ComPacT NSX630N 3-pole moulded case circuit breaker for motor-circuit protection, rated 500 A at 65 °C with a 50 kA breaking capacity (Icu) at 380/415 V AC. Its MicroLogic 2.3 M trip unit combines adjustable long-time overload and short-time protection in a single device.

Technical Specifications

Reference C63N32M500
Brand Schneider Electric
Range ComPacT
Series NSX630N
Poles 3P
Device application Motor protection
Rated current In 500 A at 65 °C
Rated operational voltage Ue 690 V AC, 50/60 Hz
Rated insulation voltage Ui 800 V AC
Rated impulse withstand voltage Uimp 8 kV
Breaking capacity Icu 85 kA at 220/240 V AC, 50 kA at 380/415 V AC, 42 kA at 440 V AC, 30 kA at 500 V AC, 22 kA at 525 V AC, 10 kA at 660/690 V AC
Service breaking capacity Ics 85 kA at 220/240 V AC, 50 kA at 380/415 V AC, 42 kA at 440 V AC, 30 kA at 500 V AC, 11 kA at 525 V AC, 10 kA at 660/690 V AC
Utilisation category Category A
Suitability for isolation Yes, conforming to EN/IEC 60947-2
Trip unit MicroLogic 2.3 M (Electronic)
Protection functions LSoI
Protection settings Ir (long-time, adjustable 9 steps) 250…500 A, selectable trip class 5/10/20; Isd (short-time, fixed delay) 5–13×Ir; Ii (instantaneous, fixed) 6500 A.
Complementary motor protection Phase unbalance
Earth-leakage protection Without
Zone selective interlocking (ZSI) Without
Control / mounting Toggle handle, fixed mounting on backplate, front/front connection
Dimensions (W×H×D) 140 mm × 255 mm × 110 mm
Net weight 6.2 kg
IP / IK degree IP40 / IK07
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The MicroLogic 2.3 M trip unit combines an adjustable long-time overload stage (Ir 250…500 A, selectable trip class 5, 10 or 20) with a fixed-delay short-time stage and a fixed instantaneous stage at 6500 A — enough to protect both the motor and the branch circuit from one device. Select the trip class to match the motor starting duty: class 5 for light starting, class 20 for long ramp-up loads. At 50 kA Icu at 380/415 V AC, the frame suits motor circuits sized within the 250…500 A overload range.

Technical Details

Short Description
ComPacT NSX630N 3P 500 A motor-protection MCCB, 50 kA Icu, MicroLogic 2.3 M.
Rated Current (Ampere)
500 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed, backplate
Protection Type
IP40
Catalog No
C63N32M500
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX630N
Tariff Code
85362090
