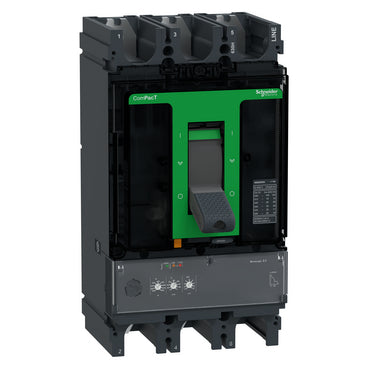

Schneider Electric C63H32D630 ComPacT NSX630H 3P 630 A 70 kA MicroLogic 2.3 Fixed Moulded Case Circuit Breaker

% $-1,288.98
Schneider Electric C63H32D630 ComPacT NSX630H 630A 70kA moulded case circuit breaker
Schneider Electric C63H32D630 ComPacT NSX630H 630A 70kA moulded case circuit breaker

Schneider Electric C63H32D630 ComPacT NSX630H 3P 630 A 70 kA MicroLogic 2.3 Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C63H32D630
Catalog No: C63H32D630
Tariff Code (HS): 85362090
Rated Current: 630 A
Breaking Type: MicroLogic 2.3
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,288.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C63H32D630 is a Schneider Electric ComPacT NSX630H 3-pole moulded case circuit breaker rated 630 A at 40 °C, with a 70 kA breaking capacity (Icu) at 380/415 V AC. It uses the MicroLogic 2.3 trip unit, which provides an adjustable long-time overload stage (Ir 250…630 A), a fixed-delay short-time stage and a fixed instantaneous stage at 6900 A, and is rated for isolation up to 690 V AC.

Technical Specifications

Reference C63H32D630
Brand Schneider Electric
Range ComPacT
Series NSX630H
Poles 3P
Rated current In 630 A at 40 °C
Rated operational voltage Ue 690 V AC, 50/60 Hz
Rated insulation voltage Ui 800 V AC
Rated impulse withstand voltage Uimp 8 kV
Breaking capacity Icu 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 65 kA at 440 V AC, 50 kA at 500 V AC, 35 kA at 525 V AC, 20 kA at 660/690 V AC
Service breaking capacity Ics 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 65 kA at 440 V AC, 50 kA at 500 V AC, 11 kA at 525 V AC, 10 kA at 660/690 V AC
Utilisation category Category A
Suitability for isolation Yes, conforming to EN/IEC 60947-2
Trip unit MicroLogic 2.3 (Electronic)
Protection functions LSoI
Protection settings Ir (long-time, adjustable 9 steps) 250…630 A; Isd (short-time, fixed delay) 1.5–10×Ir; Ii (instantaneous, fixed) 6900 A.
Earth-leakage protection Without
Zone selective interlocking (ZSI) Without
Control / mounting Toggle handle, fixed mounting on backplate, front/front connection
Dimensions (W×H×D) 140 mm × 255 mm × 110 mm
Net weight 6.2 kg
IP / IK degree IP40 / IK07
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The L-So-I MicroLogic 2.3 combines adjustable long-time overload protection (Ir 250…630 A) with a fixed-delay short-time stage and a fixed instantaneous stage at 6900 A. Pick this variant over the 5.3 E / 6.3 E versions when the board needs straightforward, non-communicating overcurrent protection without metering or zone-selective interlocking. At 70 kA Icu at 380/415 V AC, the H frame is the 70 kA/415 V workhorse of the 630 A ComPacT NSX range.

Technical Details

Short Description
ComPacT NSX630H 3P 630 A, 70 kA Icu, MicroLogic 2.3 trip unit.
Rated Current (Ampere)
630 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed, backplate
Protection Type
IP40
Catalog No
C63H32D630
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX630H
Tariff Code
85362090
