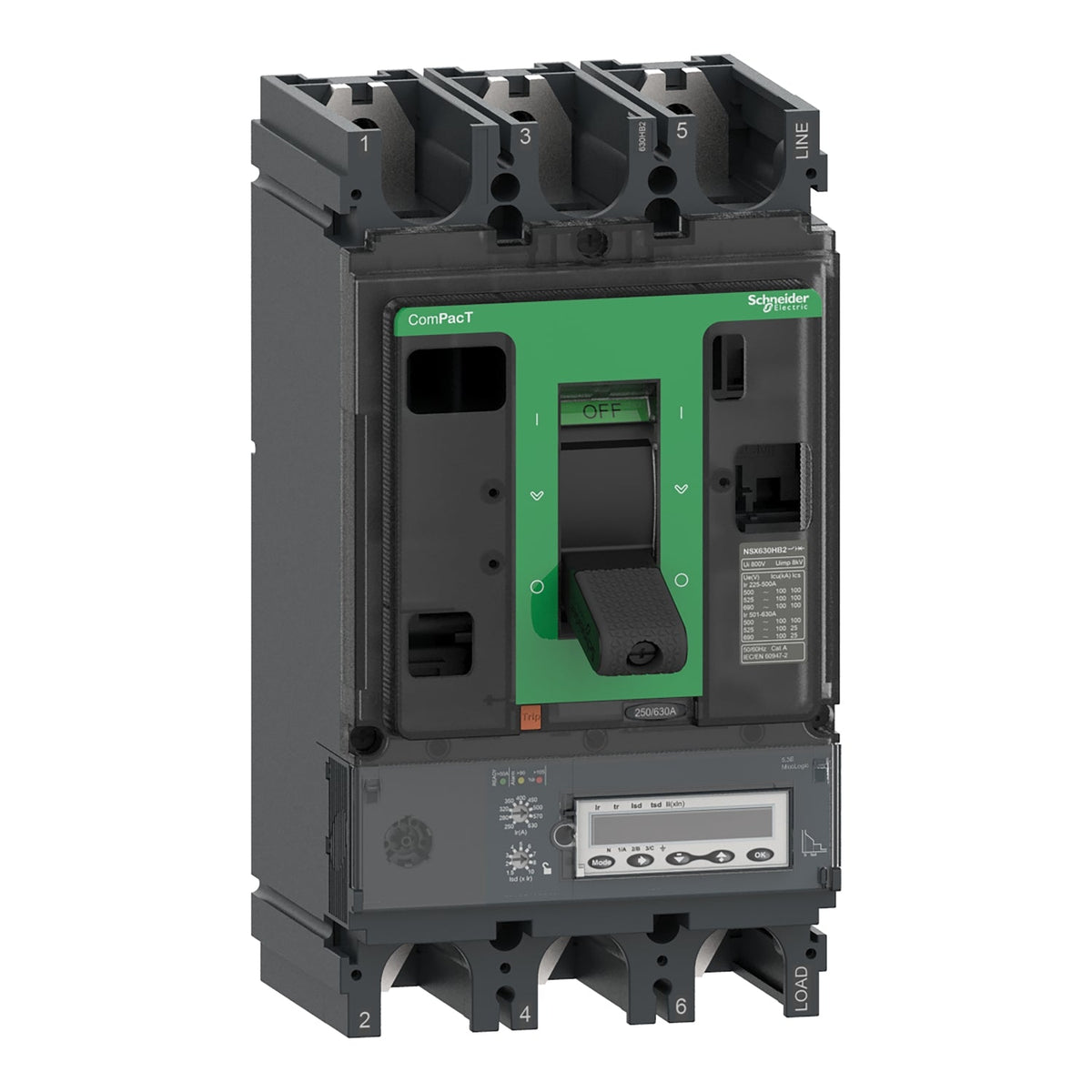

ComPacT NSX630F 3P 630 A, 36 kA Icu, MicroLogic 5.3 E trip unit.
The C63F35E630 is a Schneider Electric ComPacT NSX630F 3-pole moulded case circuit breaker rated 630 A at 40 °C, with a 36 kA breaking capacity (Icu) at 380/415 V AC. It uses the MicroLogic 5.3 E trip unit, which provides adjustable long-time, short-time and instantaneous protection plus an integrated energy meter, and is rated for isolation up to 690 V AC.
The L-S-I MicroLogic 5.3 E adds an adjustable short-time delay and an adjustable instantaneous stage to the long-time overload function, plus an LCD display with an integrated energy meter. Choose it over the 2.3 variant when the switchboard needs metering data or zone-selective interlocking (ZSI) for coordinated tripping with downstream devices. At 36 kA Icu at 380/415 V AC, the F frame is the standard-duty 36 kA/415 V option in the 630 A ComPacT NSX range.
| Range | ComPacT |
|---|---|
| Product name | ComPacT NSX |
| Device short name | NSX630F |
| Breaking capacity code | F |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [In] rated current | 630 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Trip unit name | MicroLogic 5.3 E |
| Trip unit type | Electronic |
| Trip unit rating | 630 A at 40 °C |
| Control type | Toggle, Rotary handle, Extended rotary handle |
| Mounting mode | Fixed |
| Long time delay adjustment type | Adjustable |
|---|---|
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icu] rated ultimate short-circuit breaking capacity | 40 kA Icu at 220/240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 30 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2, 20 kA Icu at 525 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at 660/690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 40 kA at 220/240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 30 kA at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 25 kA at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA at 525 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA at 660/690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Mechanical durability | 15000 cycles |
| Electrical durability | 8000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 4000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2 |
| Mounting support | Backplate |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch without spreaders | 45 mm |
| Connections - terminals | 4 screw type terminals wire size 240 mm² aluminium/copper |
| [tr] long-time delay adjustment range | 15…400 s at 1.5 x Ir, 0.5…16 s at 6 x Ir, 0.35…11 s at 7.2 x Ir |
| Long time pick-up adjustment type Ir | Adjustable |
| Long time pick-up adjustment range | 250...630 A |
| Thermal memory | 20 minutes before and after tripping |
| [Isd] short-time pick-up adjustment range | 1.5...10 x Ir |
| Short-time pick-up adjustment type Isd | Adjustable 9 settings |
| Short-time delay adjustment type | Fixed |
| [tsd] short-time delay adjustment range | 0…0.4 s |
| Instantaneous pick-up adjustment range | 1.5...11 x In |
| Instantaneous pick-up adjustment type Ii | Adjustable |
| Local signalling | LED ready, LED 90 % Ir, LED 105 % Ir |
| Electrical data recording | Maintenance indicators |
| Zone selective interlocking ZSI | With |
| Width | 140 mm |
| Height | 255 mm |
| Depth | 110 mm |
| Net weight | 6.2 kg |
| Communication of data | Total energy |
| Display type | LCD display |
| Type of measurement | Energy meter |
| Standards | EN/IEC 60947 |
|---|---|
| Product certifications | CCC, EAC, Marine |
| Overvoltage category | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Part number | C63F35E630 |
|---|---|
| Type designation | NSX630F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.0 cm |
| Package 1 Width | 16.0 cm |
| Package 1 Length | 29.0 cm |
| Package 1 Weight | 6.29 kg |
| Shipping weight | 6.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of NSX630F is 630 A.
The rated operational voltage of NSX630F is 690 V AC.
The tariff (HS) code on file for NSX630F is 853620.
NSX630F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
