Part number
C40W42D400
Model no
NSX400HB2
$3,146.06 On request Dispatch — · From TürkiyeGet a Quote

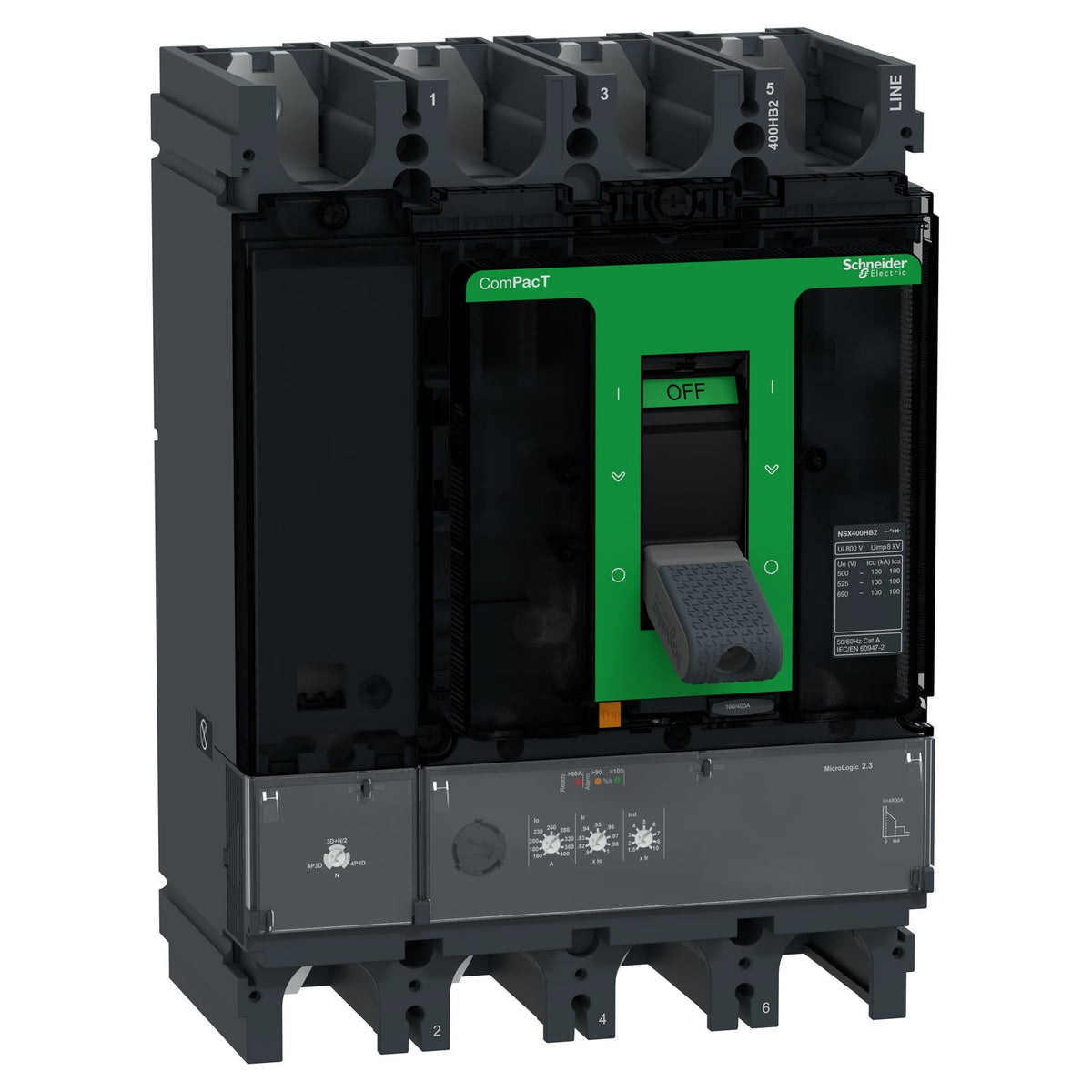

Schneider Electric C40W42D400 ComPacT NSX400HB2 4P 400 A 100 kA MicroLogic 2.3 Moulded Case Circuit Breaker

ComPacT NSX400HB2 4P 400 A, 100 kA Icu, MicroLogic 2.3 trip unit.

Rated current
400 A
Rated operational voltage
690 V AC
Description

About the NSX400HB2

The C40W42D400 is a Schneider Electric ComPacT NSX400HB2 4-pole moulded case circuit breaker rated 400 A at 40 °C, with a 100 kA breaking capacity (Icu) at 660/690 V AC. It uses the MicroLogic 2.3 trip unit, which provides an adjustable long-time overload stage (Ir 160…400 A), a fixed-delay short-time stage and a fixed instantaneous stage at 4800 A, and is rated for isolation up to 690 V AC.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The L-So-I MicroLogic 2.3 combines adjustable long-time overload protection (Ir 160…400 A) with a fixed-delay short-time stage and a fixed instantaneous stage at 4800 A. Pick this variant over the 5.3 E / 6.3 E versions when the board needs straightforward, non-communicating overcurrent protection without metering or zone-selective interlocking. At 100 kA Icu at 660/690 V AC, the HB2 frame is the top 690 V option in the 400 A ComPacT NSX range, at 100 kA at 660/690 V.

Specification

Full specification

81 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NSX
Device short name NSX400HB2
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 4D, 3D + N/2, 3D
Neutral position Left
[In] rated current 400 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code HB2 100 kA 690 V AC
Trip unit name MicroLogic 2.3
Trip unit technology Electronic
Trip unit protection functions LSoI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 32

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service breaking capacity 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 15000 cycles
Electrical durability 12000 cycles at 440 V In/2, 6000 cycles at 440 V In, 6000 cycles at 690 V In/2, 3000 cycles at 690 V In
Power dissipation per pole 19.2 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 45 mm
Protection type L : for overload protection (long time), So : for short time short-circuit protection with fixed delay, I : for instantaneous short-circuit protection
Trip unit rating 400 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 160…400 A
Long-time protection delay adjustment type tr Fixed
[tr] long-time delay adjustment range 400 s at 1.5 x Ir, 16 s at 6 x Ir, 11 s at 7.2 x Ir
Neutral protection setting 0.5 x Ir (3D + N/2), 1 x Ir (4D), No protection (3D)
Thermal memory 20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir
Short-time protection delay adjustment type tsd Fixed
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 4800 A
Earth-leakage protection Without
Zone selective interlocking ZSI Without
Number of slots 6 slot(s)
Local signalling Flashing LED (green) for ready to operate, LED 105 % Ir (red) for overload, LED 90 % Ir (orange) for overload
Width (W) 185 mm
Height (H) 255 mm
Depth (D) 110 mm
Net weight 7.9 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 81 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C40W42D400
Type designation NSX400HB2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.2 cm
Package 1 Width 20.3 cm
Package 1 Length 29.2 cm
Package 1 Weight 7.92 kg
Shipping weight 7.9 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
