Schneider Electric C40V42D400 ComPacT NSX400HB1 4P 400 A 75 kA MicroLogic 2.3 Moulded Case Circuit Breaker

% $-2,669.91

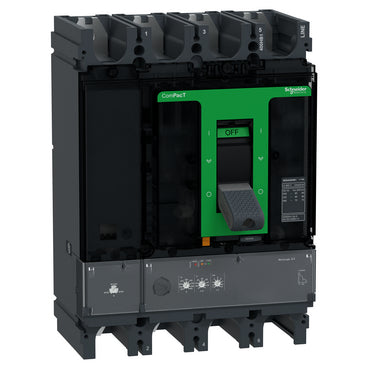

Schneider Electric C40V42D400 ComPacT NSX400HB1 400A 75kA moulded case circuit breaker
Schneider Electric C40V42D400 ComPacT NSX400HB1 400A 75kA moulded case circuit breaker

Schneider Electric C40V42D400 ComPacT NSX400HB1 4P 400 A 75 kA MicroLogic 2.3 Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C40V42D400
Catalog No: C40V42D400
Tariff Code (HS): 85362090
Rated Current: 400 A
Breaking Type: MicroLogic 2.3
Rated Voltage: 690 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,669.91

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C40V42D400 is a Schneider Electric ComPacT NSX400HB1 4-pole moulded case circuit breaker rated 400 A at 40 °C, with a 75 kA breaking capacity (Icu) at 660/690 V AC. It uses the MicroLogic 2.3 trip unit, which provides an adjustable long-time overload stage (Ir 160…400 A), a fixed-delay short-time stage and a fixed instantaneous stage at 4800 A, and is rated for isolation up to 690 V AC.

Technical Specifications

Reference C40V42D400
Brand Schneider Electric
Range ComPacT
Series NSX400HB1
Poles 4P
Rated current In 400 A at 40 °C
Rated operational voltage Ue 690 V AC, 50/60 Hz
Rated insulation voltage Ui 800 V AC
Rated impulse withstand voltage Uimp 8 kV
Breaking capacity Icu 85 kA at 500 V AC, 80 kA at 525 V AC, 75 kA at 660/690 V AC
Service breaking capacity Ics 85 kA at 500 V AC, 80 kA at 525 V AC, 75 kA at 660/690 V AC
Utilisation category Category A
Suitability for isolation Yes, conforming to EN/IEC 60947-2
Trip unit MicroLogic 2.3 (Electronic)
Protection functions LSoI
Protection settings Ir (long-time, adjustable 9 steps) 160…400 A; Isd (short-time, fixed delay) 1.5–10×Ir; Ii (instantaneous, fixed) 4800 A.
Neutral protection setting 0.5×Ir (3D+N/2), 1×Ir (4D), no protection (3D)
Earth-leakage protection Without
Zone selective interlocking (ZSI) Without
Control / mounting Toggle handle, fixed mounting on backplate, front/front connection
Dimensions (W×H×D) 185 mm × 255 mm × 110 mm
Net weight 7.9 kg
IP / IK degree IP40 / IK07
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The L-So-I MicroLogic 2.3 combines adjustable long-time overload protection (Ir 160…400 A) with a fixed-delay short-time stage and a fixed instantaneous stage at 4800 A. Pick this variant over the 5.3 E / 6.3 E versions when the board needs straightforward, non-communicating overcurrent protection without metering or zone-selective interlocking. At 75 kA Icu at 660/690 V AC, the HB1 frame targets 690 V applications needing 75 kA at 660/690 V.

Technical Details

Short Description
ComPacT NSX400HB1 4P 400 A, 75 kA Icu, MicroLogic 2.3 trip unit.
Rated Current (Ampere)
400 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed, backplate
Protection Type
IP40
Catalog No
C40V42D400
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
NSX400HB1
Tariff Code
85362090
