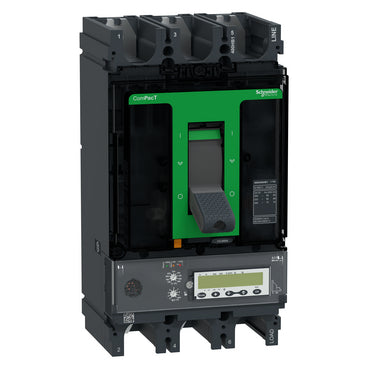

Schneider Electric C40V36E400 ComPacT NSX400HB1 3P 400 A 75 kA MicroLogic 6.3 E Moulded Case Circuit Breaker

% $-4,010.72
Schneider Electric C40V36E400 ComPacT NSX400HB1 400A 75kA moulded case circuit breaker
Schneider Electric C40V36E400 ComPacT NSX400HB1 400A 75kA moulded case circuit breaker

Schneider Electric C40V36E400 ComPacT NSX400HB1 3P 400 A 75 kA MicroLogic 6.3 E Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C40V36E400
Catalog No: C40V36E400
Tariff Code (HS): 85362090
Rated Current: 400 A
Breaking Type: MicroLogic 6.3 E
Rated Voltage: 690 V
Poles: 3P
Communication: Modbus-ready metering (MicroLogic E trip unit)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,010.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C40V36E400 is a Schneider Electric ComPacT NSX400HB1 3-pole moulded case circuit breaker rated 400 A at 40 °C, with a 75 kA breaking capacity (Icu) at 660/690 V AC. It uses the MicroLogic 6.3 E trip unit, which provides adjustable long-time, short-time, instantaneous and switchable ground-fault protection plus an integrated energy meter, and is rated for isolation up to 690 V AC.

Technical Specifications

Reference C40V36E400
Brand Schneider Electric
Range ComPacT
Series NSX400HB1
Poles 3P
Rated current In 400 A at 40 °C
Rated operational voltage Ue 690 V AC, 50/60 Hz
Rated insulation voltage Ui 800 V AC
Rated impulse withstand voltage Uimp 8 kV
Breaking capacity Icu 85 kA at 500 V AC, 80 kA at 525 V AC, 75 kA at 660/690 V AC
Service breaking capacity Ics 85 kA at 500 V AC, 80 kA at 525 V AC, 75 kA at 660/690 V AC
Utilisation category Category A
Suitability for isolation Yes, conforming to EN/IEC 60947-2
Trip unit MicroLogic 6.3 E (Electronic)
Protection functions LSIG
Protection settings Ir (long-time, adjustable) 160…400 A; Isd (short-time, adjustable) 1.5–10×Ir with tsd 0–0.4 s (I²t on/off); Ii (instantaneous, adjustable) 1.5–12×In; Ig (ground-fault, adjustable, OFF option) 0.2–1×In with tg 0–0.4 s (I²t on/off).
Earth-leakage protection Without
Zone selective interlocking (ZSI) With
Metering & display LCD display, integrated energy meter, protection/alarm settings and event history
Control / mounting Toggle handle, fixed mounting on backplate, front/front connection
Dimensions (W×H×D) 140 mm × 255 mm × 110 mm
Net weight 6.05 kg
IP / IK degree IP40 / IK07
Ambient temperature (operation / storage) -25…70 °C / -40…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The L-S-I-G MicroLogic 6.3 E adds adjustable, switch-off-capable ground-fault protection to the 5.3 E feature set. Specify this variant instead of the 5.3 E when the circuit needs 4th-pole or source ground-fault protection, for example on a TN-S or IT-derived board; otherwise the 5.3 E covers the same long-time/short-time/instantaneous stages. At 75 kA Icu at 660/690 V AC, the HB1 frame targets 690 V applications needing 75 kA at 660/690 V.

Technical Details

Short Description
ComPacT NSX400HB1 3P 400 A, 75 kA Icu, MicroLogic 6.3 E trip unit.
Rated Current (Ampere)
400 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed, backplate
Protection Type
IP40
Catalog No
C40V36E400
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX400HB1
Tariff Code
85362090

Downloads

Customers say

Pairs well with

Related products
